Brand Name : | Belparts |
Model Number : | SOLAR330 SOLAR340LC dx330 dx340 |
Price : | Negotiated price |
Payment Terms : | T/T, trade assurance,PayPal |
Supply Ability : | 1000PCS |
Delivery Time : | 1~7 days |
Belparts excavator main pump SOLAR330 SOLAR340LC dx330 dx340 hydraulic pump 2401-9193A 401-00253 for doosan
Product Description
Excavator Hydraulic pump | |
Place of Origin: | China(mainland) |
Model: | SOLAR330 SOLAR340LC dx330 dx340 |
Part number: | 2401-9193A 401-00253 |
MOQ: | 1 PCS |
Payment term: | T/T, trade assurance,PayPal |
Delivery time: | Within 1~7 days after receiving the payment |
Packing: | Standard exporting packing or as required |

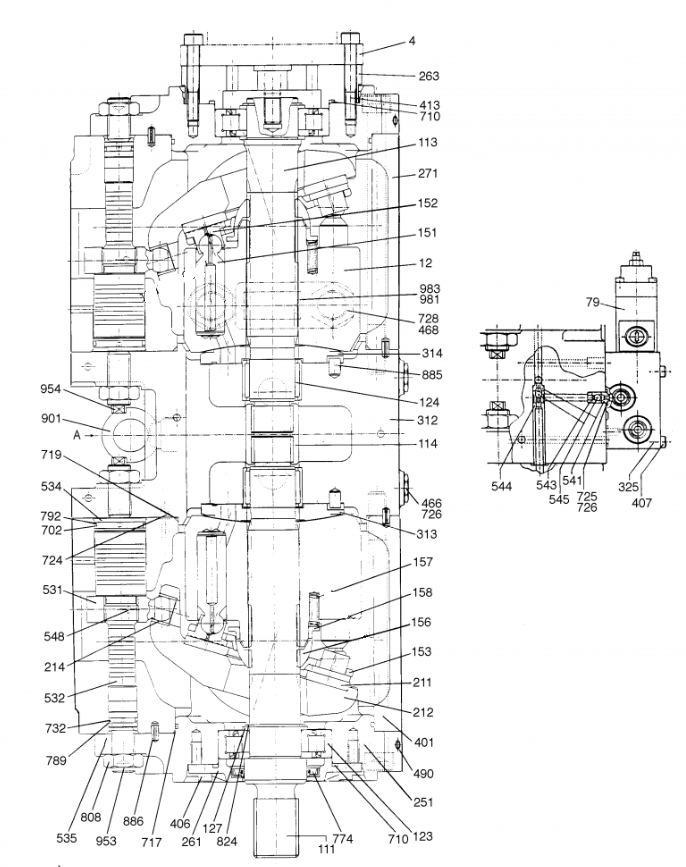

# | Part No | Part Name | Comment | Qty. | Price request |
- | 2401-9193A | PUMP(-2401-9193AT) | 180 kg | 1 | |
4 | 2902440-0398A | PUMP ASSY, GEAR | 1 | ||
11 | 3853802466 | PISTON ASS'Y | 2 SET | ||
151 | 38D00-151 | PISTON | 18 | ||
152 | 38B00-152 | SHOE | 18 | ||
13 | 2953802226 | CYL ASSY(R), M/PUMP(362~) | 9 kg | 1 SET | |
12 | 2953802067 | BLOCK, CYLINDER | 1 | ||
313 | 2933801022 | V/V PLATE (R) , MAIN PUMP | 1 | ||
14 | 2953802227 | CYL ASSY(L), M/PUMP 9164 | 9 kg | 1 SET | |
12 | 2953802067 | BLOCK, CYLINDER | 1 | ||
314 | 2933801023 | V/V PLATE (L) , MAIN PUMP | 1 | ||
30 | 2953801991 | SWASH PLATE ASS'Y | 2 SET | ||
212 | 2923800908 | PLATE, SWASH | 2 | ||
214 | P1R222616 | BUSH, TILTING | 2 | ||
79 | V8807135051 | VALVE, PROPORTIONAL REDUCING | 1 kg | 1 | |
111 | 2933800890 | SHAFT, DRIVE(L.H.) | 5 kg | 1 | |
113 | 2833800903 | SHAFT, DRIVE(R.H.) | 1 | ||
114 | 2953801867 | COUPLING, SPLINE | 1 | ||
123 | PNUP309E | BEARING, ROLLER | 1 kg | 2 | |
124 | PRNA6932 | 212285 BRG, NEEDL | 2 | ||
127 | 72953802066 | SPACER, BEARING | 3 | ||
153 | 2943800488 | PLATE, SET | 2 | ||
156 | 2953801840 | BUSH, SPHERICAL | 2 | ||
157 | 953802061 | SPRING, CYLINDER | 18 | ||
158 | 953802062 | CYLINDER, SPRING | 2 | ||
211 | 371A00AA-124 | PLATE, SHOE | 2 | ||
251 | 2923800906 | SUPPORT | 14 kg | 2 | |
261 | 2943800518 | COVER, SEAL | 1 | ||
263 | 2933800906 | . COVER, REAR | 1 | ||
271 | 2923800904 | CASING, PUMP | 2 | ||
312 | 2923801022 | BLOCK, VALVE | 1 | ||
325 | 2933800928 | CASING, VALVE | 1 kg | 1 | |
401 | 2953801868 | BOLT, HEX SOCKET HEAD | 8 | ||
406 | OSBM820 | SCREW, HEX. S.H.C M8X20 | 4 | ||
407 | OSBM655 | SCREW, HEX.S.H.C M6X55 | 3 | ||
466 | OVP14 | PLUG, VP | 2 | ||
468 | OVP34 | 108847 VP-PLUG | 4 | ||
490 | PBP116-2403 | PLUG | 32 | ||
530 | 2953801988 | TILTING PIN ASS'Y | 2 | ||
531 | 2943800502 | PIN, TILTING | 2 | ||
548 | 2953802202 | PIN, FEED BACK | 2 | ||
532 | 2943800503 | PISTON, SERVO | 2 | ||
534 | 2953801865 | STOPPER(L) | 2 | ||
535 | 2953801864 | STOPPER(S) | 2 | ||
541 | 2953802677 | SEAT, M/PUMP | 4 | ||
543 | 2953802678 | STOPPER 1, M/PUMP | 4 kg | 2 | |
544 | 2953802661 | STOPPER 2 | 2 | ||
545 | ODW732 | BALL, STEEL | 1 kg | 4 | |
702 | OORBG40W | O-RING | 2 | ||
710 | OORBG105 | O-RING G105 | 1 | ||
717 | PCPP170 | O-RING | 2 | ||
719 | PCPP165 | O-RING | 5 kg | 2 | |
724 | OORBP8 | O-RING(P8) | 16 | ||
725 | OORBP11 | O-RING(P7) | 7 | ||
728 | OORBP24 | O-RING(P24) | 4 | ||
732 | OORBP21W | O-RING | 2 | ||
774 | PSPD55788F | SEAL, OIL | 1 | ||
789 | PT2SP21 | RING, BACK-UP | 2 | ||
792 | PT2SG40 | RING, BACK-UP | 2 | ||
808 | ORNM20 | NUT M20 JIS B1181 RN-M20 | 4 | ||
824 | OSR45 | RING, SNAP | 2 | ||
885 | PJR1014 | PIN, VALVE PLATE | 8 kg | 2 | |
886 | OSPV614 | SPRING PIN | 2 kg | 4 | |
901 | OEBM12 | 212286 BOLT, EYE | 2 | ||
953 | PSSSM2035 | SCREW, SET | 2 | ||
954 | 2953801866 | SCREW, SET | 2 | ||
981 | PNPA-2550A | PLATE, NAME | 1 | ||
983 | OSK2548 | RIVET | 2 | ||
* | 2401-9164K | KIT, O-RING | 1 |
Model | Nominal displacement (ml/r) | Pressure(MPa) | Speed(r/min) | Volumetric efficiencf (≥%) | L1 | L2 | L | Weight (kg) | |||
Rated | Max | Min | Rated | Max. | |||||||
CBXZ-C20-K3V112* | 20 | 6.3 | 800 | 2200 | 3000 | 90 | 73 | 86 | 110 | 2 | |
CBXZ-C15-K3V112* | 15 | 65 | 78 | 102 | 1.8 | ||||||
CBXZ-C10-K3V112* | 10 | 57 | 70 | 91 | 1.6 |
Model | Nominal displacement (ml/r) | Pressure(MPa) | Speed(r/min) | Volumetric efficiencf (≥%) | L1 | L2 | L | Weight (kg) | ||
Rated | Max | Optimum speed | Speed range | |||||||
CBXZ-C10-K3V63* | 10 | 3.5 | 5 | 1500-2500 | 800-2800 | 90 | 60.5 | 65.5 | 80.5 | 1.9 |
CBXZ-C15-K3V63* | 15 | 60 | 72.5 | 93 | 2.7 |
Model | Nominal displacement (ml/r) | Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) | Weight (kg) | ||
Rated | Max | Optimum speed | Speed range | ||||
CBXT-C15-K3V140 | 15 | 3.6 | 6 | 1500~2500 | 600~3000 | P2 |
