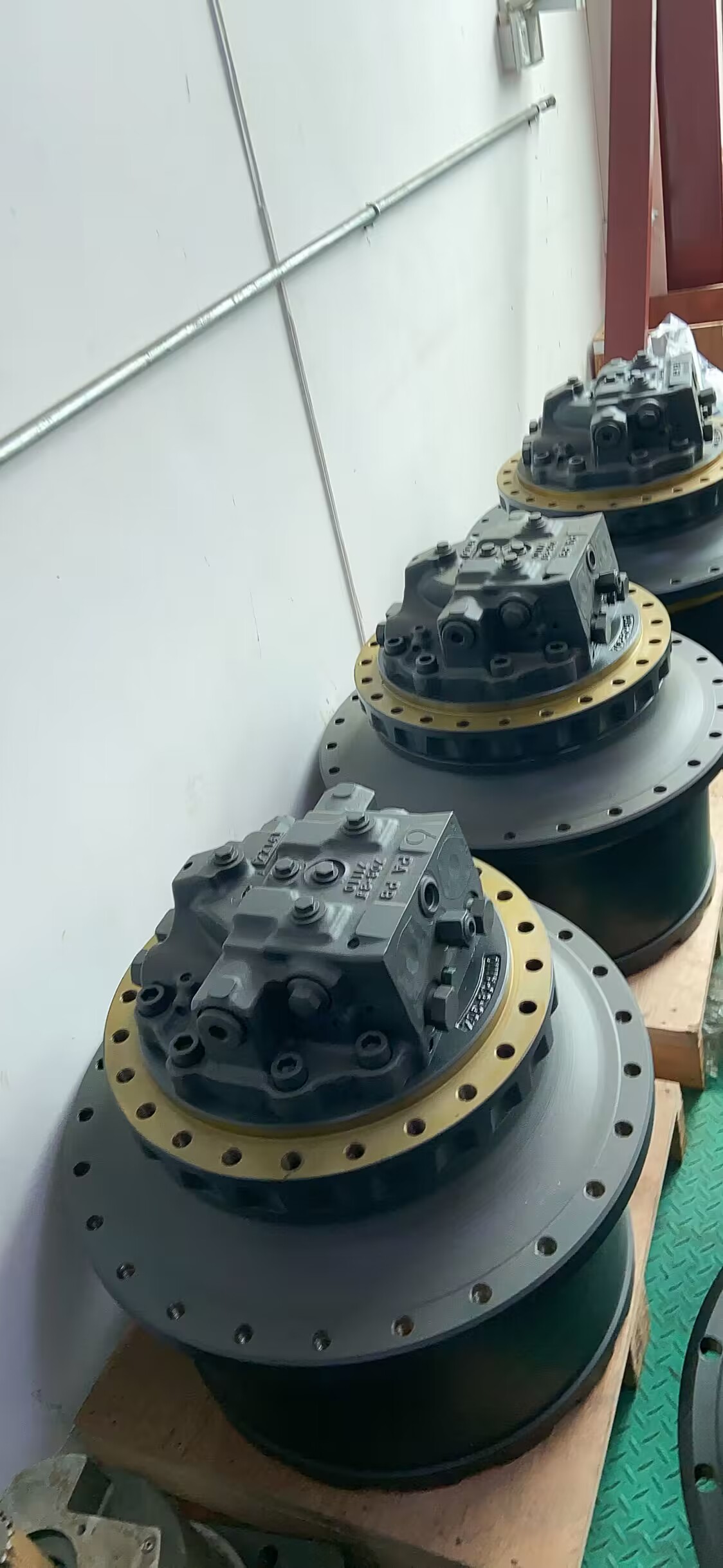

PC450-7 final drive assy Belparts Excavator travel motor assy
PC450-6 706-88-00151 706-88-00150 706-8J-01012 for komatsu
Product description
Appliion:Excavator
Part name:Travel motor ass'y
Material:Steel
Model:PC450-6 PC450-7
MOQ:1PC
Warranty:6 months
Payment term:T/T, paypal, trade assurance or as required
Part number:706-88-00151 706-88-00150 706-8J-01012
Shipment:by sea, by air, by express or as required
| Appliion | Excavator |
| Part name | Travel motor ass'y |
| Material | Steel |
| Model | PC450-6 PC450-7 |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T, paypal, trade assurance or as required |
| Part number | 706-88-00151 706-88-00150 706-8J-01012 |
| Shipment | by sea, by air, by express or as required |
| # | Part No | Part Name | Qty. | Price request |
| 1 | (706-88-00151) | MOTOR ASS'Y | 2 | |
| 1 | (706-88-00150) | MOTOR ASS'Y | 2 | |
| 2 | 208-27-00140 | FLOATING SEAL ASS'Y | 2 | |
| 2 | 17M-27-00102 | FLOATING SEAL ASS'Y | 2 | |
| 2 | 17M-27-00101 | FLOATING SEAL ASS'Y | 2 | |
| 2 | | Ring | 2 | |
| 2 | | Ring | 2 | |
| 2 | | Ring | 2 | |
| 3 | | O-ring | 2 | |
| 4 | 208-27-61192 | Hub | 2 | |
| 4 | 208-27-61191 | Hub | 2 | |
| 4 | 208-27-61190 | Hub | 2 | |
| | (208-27-61191,706-88-00150?208-27-61261) | | |
| 5 | 208-27-62110 | Bearing | 4 | |
| 5 | 208-27-51240 | BEARING,BALL | 4 | |
| 6 | 208-27-51212 | Cover | 2 | |
| 6 | 208-27-51211 | Cover | 2 | |
| 7 | 01010-81240 | BOLT,FOR WEIGHT ADJUSTING BOLT | 36 | |
| 8 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 36 | |
| 9 | 208-27-52350 | O-ring | 2 | |
| 10 | 208-27-61270 | Lock | 2 | |
| 11 | 208-27-61261 | Nut | 2 | |
| 11 | 208-27-61260 | Nut | 2 | |
| 12 | 01010-81020 | BOLT,(FOR MONO LEVER STEERING) | 4 | |
| 13 | 208-27-61170 | CARRIER,2ND | 2 | |
| 14 | 208-27-61140 | Gear | 8 | |
| 15 | 207-27-61230 | BEARING,2P | 8 | |
| 16 | 20Y-27-21250 | WASHER,THRUST | 16 | |
| 17 | 207-27-61250 | Pin | 8 | |
| 18 | 20Y-27-21290 | Pin | 8 | |
| 19 | 207-27-52270 | Spacer | 2 | |
| 20 | 208-27-61130 | Gear | 2 | |
| 21 | 208-27-61150 | Gear | 2 | |
| 22 | 208-27-61160 | CARRIER,1ST | 2 | |
| 23 | 208-27-61121 | Gear | 6 | |
| 24 | 207-27-61220 | BEARING,1P | 6 | |
| 25 | 20Y-27-21240 | WASHER,THRUST | 12 | |
| 26 | 207-27-61240 | Pin | 6 | |
| 27 | 20Y-27-21280 | Pin | 6 | |
| 28 | 208-27-61111 | Shaft | 2 | |
| 28 | 208-27-61110 | Shaft | 2 | |
| 29 | 20Y-27-11250 | Spacer | 2 | |
| 30 | 208-27-61350 | BUTTON | 2 | |
| 30 | 207-27-61280 | BUTTON | 2 | |
| 31 | 208-27-61180 | Cover | 2 | |
| 32 | 207-27-52341 | Bolt | 56 | |
| 33 | 01643-31845 | WASHER,(WITHOUT R.O.P.S.) | 56 | |
| 34 | 07049-01215 | PLUG,(FOR ROPS SWEEP) (WITHOUT CAB) | 8 | |
| 35 | 07044-12412 | PLUG,MAGNETIC | 4 | |
| 36 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 4 | |
| 37 | 208-27-61210 | SPROCKET | 2 | |
| 38 | 207-27-51311 | Bolt | 52 | |
| 39 | 01011-82000 | CAPSCREW | 48 | |
| 40 | 01643-32060 | FLAT WASHER - M20 (HARDENED) | 48 | |
| 41 | 208-30-61241 | Cover | 2 | |
| 42 | 01010-81640 | BOLT,(FOR SLAG HANDLING) (FOR USA) | 12 | |
| 42 | 01010-61640 | BOLT (KIT) | 12 | |
| 42 | 01010-81640 | BOLT,(FOR SLAG HANDLING) (FOR USA) | 12 | |
| 43 | 01643-31645 | WASHER,(FOR TRAVEL MOTOR) (NOT SHOW) | 12 | |
Model |
Nominal
displacement
(ml/r) | Pressure(MPa) | Speed(r/min) |
Volumetric
efficiency
(≥%) | h | D | L1 | L |
Weight
(kg) |
Rated |
Max |
Optimum
speed |
Speed
range |
Rectabgle |
Oval |
Inlet |
Outlet |
| CBQ-G520-*F** | 20 | 25 | 28 | 1500-2500 | 800-3000 | 92 | 23 | 15 | 25 | 20 | 62.5 | 129 | 5.7 |
| CBQ-G525-*F** | 25 | 64.5 | 133 | 6.0 |
| CBQ-G532-*F** | 32 | 93 | 30 | 67 | 138 | 6.3 |
| CBQ-G540-*F** | 40 | 69.5 | 143 | 6.8 |
| CBQ-G550-*F** | 50 | 00
20 | 25 | 25 | 73 | 150 | 7.3 |
| CBQ-G563-*F* | 63 | 77.5 | 159 | 8.0 |
