Brand Name : | Belparts |
Model Number : | ZX470-5G |
Price : | Negotiable price |
Payment Terms : | T/T, trder assurance, Paypal |
Supply Ability : | 1000 |
Delivery Time : | 1-3 days |

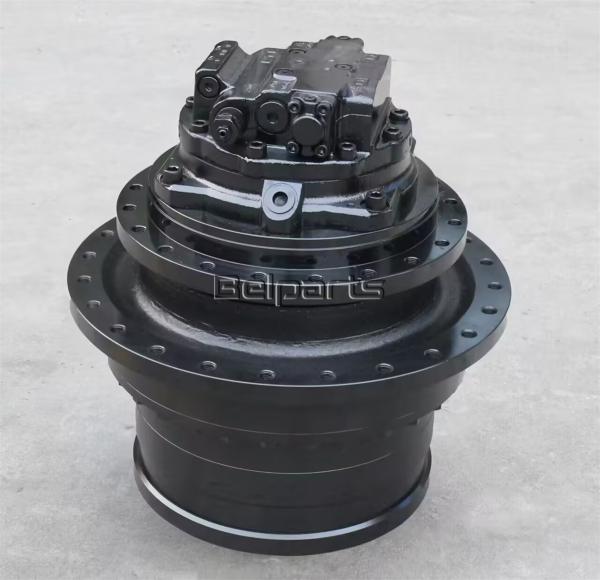

Belparts excavator travel motor assy for hitachi ZX470-5G final drive assy 9298565 9251680 9263595
Product description
Appliion | Excavator |
Part name | Travel motor ass'y |
Material | Steel |
Model | ZX470-5G |
MOQ | 1PC |
Warranty | 6 months |
Payment term | T/T, paypal, trade assurance or as required |
Part number | 9251680 9263595 9298565 |
Shipment | by sea, by air, by express or as required |

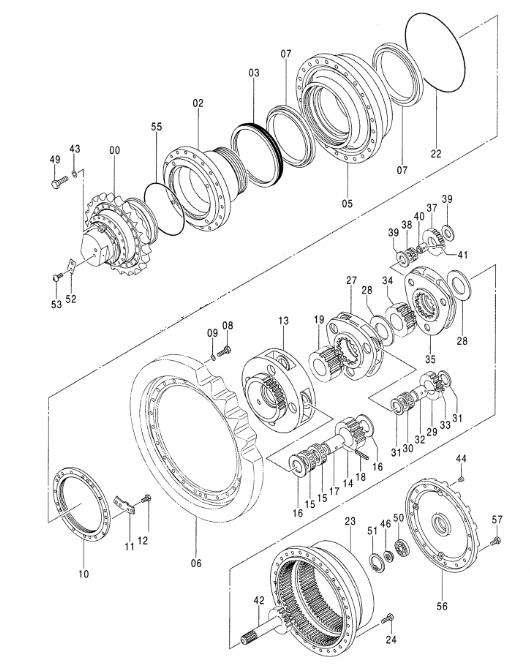

# | Part No | Part Name | Qty. | Price request |
9251680 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 2 | ||
9263595 | TRAVEL DEVICE (FOR TRANSPORTATION) | 2 | ||
00 | 4637796 | . MOTOR; OIL | 1 | |
02 | 1027942 | . HOUSING | 1 | |
03 | 4344155 | . SEAL; GROUP | 1 | |
05 | 1015882 | . DRUM | 1 | |
06 | 1010956 | . SPROCKET | 1 | |
07 | 4200411 | . BRG.; ROL. | 2 | |
08 | J932270 | . BOLT | 24 | |
09 | A590922 | . WASHER; SPRING | 24 | |
10 | 3043140 | . NUT | 1 | |
11 | 3043141 | . PLATE; LOCK | 1 | |
12 | J901225 | . BOLT | 2 | |
13 | 1015883 | . CARRIER | 1 | |
14 | 3053195 | . GEAR; PLANETARY | 4 | |
15 | 4452484 | . BRG.; NEEDLE | 8 | |
16 | 4219595 | . PLATE; THRUST | 8 | |
17 | 4263903 | . PIN | 4 | |
18 | 4207947 | . PIN; SPRING | 4 | |
19 | 3053786 | . GEAR; SUN | 1 | |
22 | 4203187 | . O-RING | 1 | |
23 | 1018360 | . GEAR; RING | 1 | |
24 | J931845 | . BOLT | 30 | |
27 | 1015523 | . CARRIER | 1 | |
28 | 4263905 | . SPACER | 2 | |
29 | 3053194 | . GEAR; PLANETARY | 3 | |
30 | 4452483 | . BRG.; NEEDLE | 3 | |
31 | 4201968 | . PLATE; THRUST | 6 | |
32 | 4263902 | . PIN | 3 | |
33 | 4203180 | . PIN; SPRING | 3 | |
34 | 3053785 | . GEAR; SUN | 1 | |
35 | 1015505 | . CARRIER | 1 | |
37 | 3053098 | . GEAR; PLANETARY | 3 | |
38 | 4452480 | . BRG.; NEEDLE | 3 | |
39 | 4269295 | . PLATE; THRUST | 6 | |
40 | 4263901 | . PIN | 3 | |
41 | 4222030 | . PIN; SPRING | 3 | |
42 | 2044685 | . SHAFT; PROP. | 1 | |
43 | A590918 | . WASHER; SPRING | 4 | |
44 | 4279343 | . PLUG | 3 | |
46 | 4288767 | . PIN; STOPPER | 1 | |
49 | J911860 | . BOLT | 4 | |
50 | 4274541 | . BRG.; BALL | 1 | |
51 | 991725 | . RING; RETAINING | 1 | |
52 | . NAME-PLATE | 1 | ||
53 | M492564 | . SCREW; DRIVE | 2 | |
55 | 4271596 | . O-RING | 1 | |
56 | 1023348 | . COVER | 1 | |
57 | 4373463 | . BOLT; SHOE | 16 |
Company information
Our factory strength
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T, PayPal (for small amount) and trade assurance.
