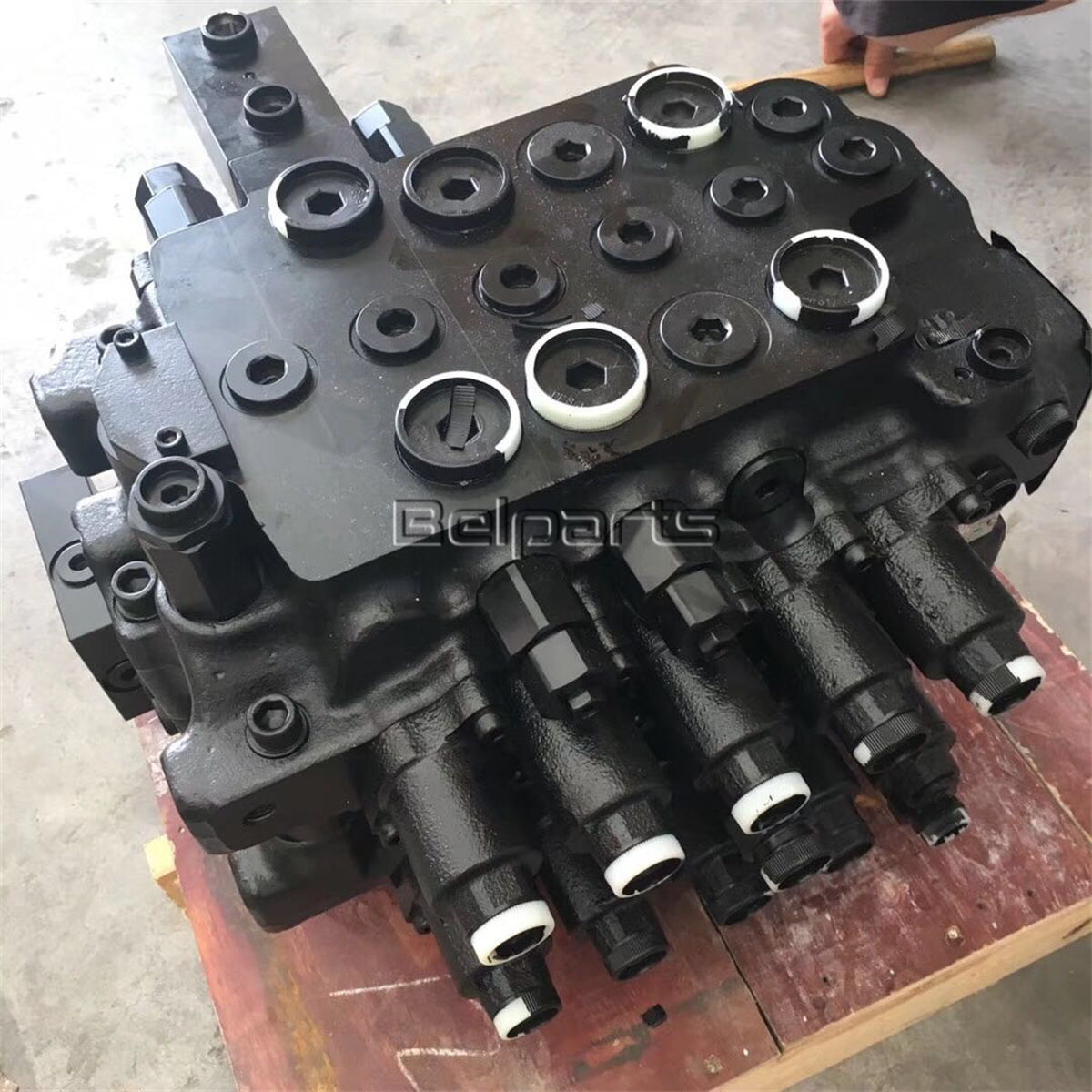

Belparts Excavator DH130 DH150-7 DX130 DX150-7 Main Control Valve
for Doosan Daewoo 2420-9521 2426-1225A 426-E0078
Appliion:Excavator
Part name:main control valve
Model:DH130 DH150-7 DX130 DX150-7
Part number:2420-9521 2426-1225A 426-E0078
Warranty:Negotiable
Payment term:T/T, Western union, paypal, trade assurance or as
required
After sales service:Online
Appliion | Excavator |
Part name | main control valve |
Model | DH130 DH150-7 DX130 DX150-7 |
Part number | 2420-9521 2426-1225A 426-E0078 |
Warranty | Negotiable |
Payment term | T/T, Western union, paypal, trade assurance or as required |
After sales service | Online |

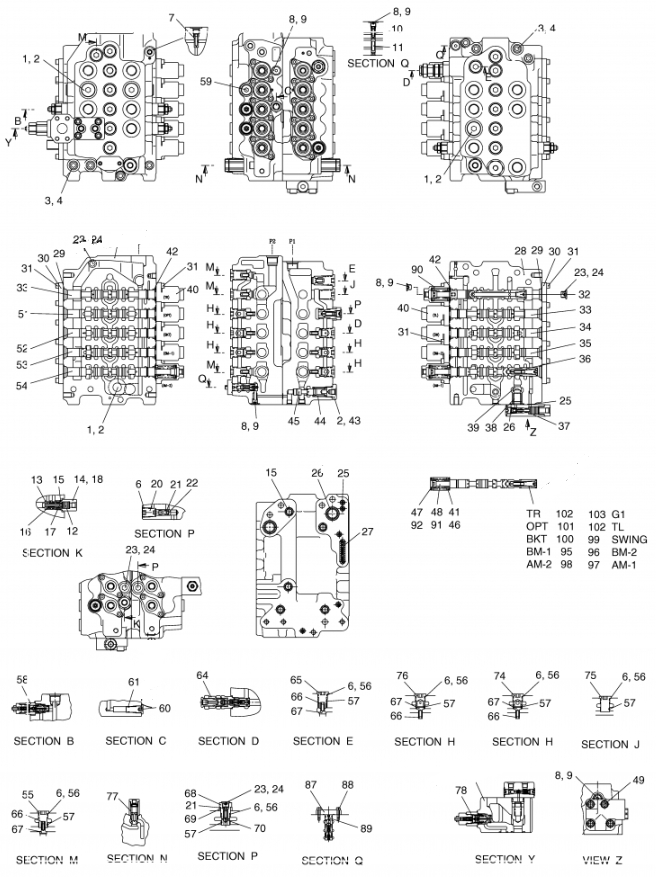

| # | Part No | Part Name | Comment | Qty. | Price request |
| - | 2420-9521 | VALVE, CONTROL | | 1 | |
| 1 | 3518-029 | 2415-1012 ORIFICE | | 1 | |
| 2 | 8072-130 | BOLT SOCKET(S2266461) | | 8 | |
| 3 | 8131-009 | WASHER, SPRING M12 | 1 kg | 8 | |
| 4 | 0824-054 | CAP | | 4 | |
| 5 | 0207-001 | O-RING | | 5 | |
| 6 | 3513-221 | CHECK ASS'Y | | 1 | |
| 7 | 3590-061 | SPRING | | 3 | |
| 8 | 8202-016 | O-RING P21 HS90 | | 26 | |
| 9 | 3526-531 | CAP | | 1 | |
| 10 | 3526-609 | CAP | | 1 | |
| 113 | 3510-685 | SPOOL, TS=2424-1100 | | 1 | |
| 114 | 3590-477 | SPRING | | 1 | |
| 115 | 3526-418 | CAP(PL) | | 1 | |
| 116 | 3531-108 | GUIDE | | 2 | |
| 11 | 3510-986 | SPOOL, REGEN | | 1 | |
| 12 | 3516-234 | SLEEVE | | 1 | |
| 13 | 3590-529 | SPRING(2129-1467P) | | 1 | |
| 14 | 3512-114 | PISTON | | 1 | |
| 15 | 0824-052 | CAP | | 7 | |
| 16 | 8202-011 | O-RING | | 8 | |
| 17 | 0824-051 | CAP (S400LC)(=2430-1051) | | 5 | |
| 18 | 8202-009 | O-RING P11 HS90 | | 5 | |
| 19 | 8202-007 | O-RING | | 7 | |
| 20 | 8202-023 | O-RING P29 | | 4 | |
| 21 | 0201-066 | O-RING MS9021-130, HS90 | | 1 | |
| 22 | 8202-014 | O-RING P18, HS90 | | 6 | |
| 23 | 0201-063 | O-RING MS9021-127 HS90 | | 10 | |
| 24 | 3503-181 | COVER | | 1 | |
| 110 | 3526-516 | CAP | | 1 | |
| 111 | 3597-231 | SPACER | | 1 | |
| 112 | 3590-436 | SPRING | | 1 | |
| 28 | 3590-233 | SPRING | | 1 | |
| 29 | 3501-796 | HOUSING, LEFT | | 1 | |
| 30 | 0201-059 | O-RING | | 10 | |
| 31 | 3505-062 | RETAINER (TSB) | | 10 | |
| 32 | 3511-756 | PLUNGER, G1 | | 1 | |
| 33 | 3511-930 | PLUNGER, M51 | | 2 | |
| 34 | 3511-931 | PLUNGER, T15 | | 1 | |
| 35 | 3511-932 | PLUNGER, D52 | | 1 | |
| 36 | 3511-933 | PLUNGER, A51 | | 1 | |
| 37 | 3535-060 | COVER ASS'Y | | 1 | |
| 38 | 3526-529 | CAP (2430-1081) | | 1 | |
| 39 | 3590-447 | SPRING | | 1 | |
| 40 | 3610-016 | SPOOL, BC | | 1 | |
| 41 | 3511-937 | SPOOL, BP ASS'Y | | 1 | |
| 42 | 0201-024 | O-RING | | 1 | |
| 43 | 3590-520 | SPRING | | 1 | |
| 44 | 3503-247 | COVER ASSY | | 1 | |
| 45 | 8072-065 | BOLT, HEX SOCKET HEAD | | 2 | |
| 46 | 3501-797 | HOUSING, RIGHT | | 1 | |
| 48 | 3511-848 | PLUNGER, D ASSY(OPTION) | | 1 | |
| 49 | 3511-934 | PLUNGER, C6 | | 1 | |
| 50 | 3511-935 | PLUNGER, B8 | | 1 | |
| 51 | 3511-936 | PLUNGER, D7 | | 1 | |
| 52 | 3526-337 | CAP | | 4 | |
| 53 | 0859-181 | RING, BACK UP P21 B1AS | | 5 | |
| 54 | 1099-000 | CHIP, NYLON | | 12 | |
| 55 | 3390-401 | 3390-101 SPR | | 12 | |
| 56 | 3513-108 | VALVE, CHECK | | 12 | |
| 57 | 3537-396-360-20 | VALVE, OVER LOAD RELIEF | | 7 | |
| 58 | 0859-271 | BACK UP RING | | 7 | |
| 59 | 0207-004 | O-RING P12.5 | | 7 | |
| 60 | 8202-010 | O-RING, CN | | 1 | |
| 61 | 0859-194 | RING, BACK-UP | | 1 | |
| 62 | 3526-432 | 2430-1059 CAP | | 1 | |
| 63 | 3537-358 | MAIN RELIEF ASS'Y | | 1 | |
| 64 | 3526-535 | CAP | | 2 | |
| 65 | 0201-054 | O-RING MS9021-118 HS90 | | 2 | |
| 66 | 3516-209 | SLEEVE | | 1 | |
| 67 | 3526-580 | CAP (TSB) | | 4 | |
| 68 | 3526-534 | CAP | | 1 | |
| 69 | 3516-233 | SLEEVE | | 1 | |
| 70 | 3537-332 | VALVE ASSY, FOOT RELIEF | | 2 | |
| 71 | 3526-604 | CAP (TSB) | | 1 | |
| 72 | 3590-521 | SPRING | | 1 | |
| 73 | 3510-960 | SPRING | | 1 | |
| 74 | 0824-050 | CAP | | 1 | |
| 75 | 8202-005 | O-RING P11 | | 1 | |
| 76 | 3590-054 | SPRING | | 1 | |
| 77 | 3508-086 | MANIFOLD | | 1 | |
| 78 | 3610-014 | SPOOL, SP | | 1 | |
| 79 | 3526-603 | CAP, CONTROL V/V TSB | | 2 | |
| 80 | 0202-008 | O-RING | | 3 | |
| 81 | 8072-105 | BOLT, HEX SOCKET HEAD | | 4 | |
| 82 | 3537-357-360-20 | OVER LOAD RELIEF V/V | | 1 | |
| 83 | 0859-172 | RING, BACK UP | 5 kg | 1 | |
| 84 | 8202-013 | O-RING=1BP-16 | | 1 | |
| 85 | 3508-070 | MANIFOLD ASS'Y | | 1 | |
| 86 | 8202-021 | O-RING P26 | | 1 | |
| 87 | 0859-229 | RING, BACK UP | 1 kg | 1 | |
| 88 | 3504-056 | COVER ASS'Y | | 1 | |
| 89 | 0576-078 | BOLT, HEX SOCKET HEAD | | 4 | |
| 90 | 3593-023 | SEAT, SPRING (TSB) | | 1 | |
| 91 | 3590-471 | SPRING | | 1 | |
| 92 | 3513-277 | POPPET (TSB) | | 1 | |
| 93 | 3610-033 | SPOOL ASSY TL, TR | | 2 | |
| 94 | 3610-034 | PLUNGER, SW | | 1 | |
| 95 | 3610-035 | 2424-1353 SPOOL ASS | | 1 | |
| 96 | 3610-036 | 2424-1354 SPOOL ASSY | | 1 | |
| 97 | 3510-821 | SPOOL ASSY, TS | | 1 | |
| 98 | 3510-714 | PLUNGER, D(OPTION) | | 1 | |
| 99 | 3610-037 | SPOOL ASSY, BKT | | 1 | |
| 100 | 3610-038 | 2424-1352 SPOOL A | | 1 | |
| 101 | 3610-029 | PLUNGER, AM-2 | | 1 | |
| 102 | 3590-498 | SPRING (TSB) | | 9 | |
| 103 | 3526-585 | CAP | | 9 | |
| 104 | 3531-125 | GUIDE, SP | | 18 | |
| 105 | 3513-245 | CHECK ASS'Y | | 2 | |
| 106 | 8202-006 | O-RING | | 2 | |
| 107 | 0859-203 | RING, BACK UP | | 2 | |
| 108 | 3526-539 | CAP | | 2 | |
| 109 | 0859-323 | BACK UP RING | | 2 | |
| 25 | 8072-084 | BOLT, SOCKET | | 40 | |
| 26 | 3503-240 | COVER | | 9 | |
| 27 | 3513-261 | POPPET | | 1 | |
