Product Description:
This Hydraulic Cylinder Complete is a double-acting cylinder type,
which means that it is capable of pushing and pulling loads. It is
designed to work efficiently and effectively, ensuring that your
machinery operates smoothly.
The mounting type of this Hydraulic Cylinder System is a flange,
which makes it easy to install and attach to your machinery. The
flange mounting type also ensures that the cylinder is securely
fastened and will not come loose during operation.
The rod end of this Hydraulic Cylinder Complete is a clevis, which
is a popular type of rod end mounting. The clevis rod end mounting
is simple and easy to use, making it a perfect choice for a variety
of hydraulic machinery applications.
The rod end type of this Hydraulic Cylinder System is threaded,
which is a common type of rod end for hydraulic cylinders. The
threaded rod end ensures that the cylinder is securely fastened and
will not come loose during operation.
To ensure the safety of your Hydraulic Cylinder Complete during
transport, the package comes in a sturdy wooden box. This packaging
ensures that your cylinder arrives at its destination in perfect
condition and ready to use.
So why wait? Order your Hydraulic Cylinder Complete today and start
enjoying the benefits of a reliable and efficient hydraulic
machinery system!
Features:
Product Name: Hydraulic Cylinder Assy
- Stroke Length: 500mm
- Model: EC300
- Cylinder Type: Double Acting
- Maximum Pressure: 250 Bar
- Piston Rod Diameter: 50mm
This Hydraulic Cylinder Assy is a complete combination of hydraulic
components. It is composed of a double acting cylinder with a
stroke length of 500mm and a maximum pressure of 250 Bar. The
piston rod diameter is 50mm, and it is designed with the EC300
model.
Technical Parameters:
| Product Attribute | Value |
| Hydraulic Cylinder Construction | Double Acting |
| Bore Diameter | 100mm |
| Piston Rod Diameter | 50mm |
| Stroke Length | 500mm |
| Rod End Mounting | Clevis |
| Rod End Type | Threaded |
| Rod End Pin Diameter | 20mm |
| Mounting Type | Flange |
| Maximum Pressure | 250 Bar |
| Part Number | 274-2458 |
| Hydraulic Cylinder Complete | Yes |
Applications:
The Hydraulic Cylinder Composition involves a piston, rod, cylinder
barrel, end caps and seals. The hydraulic cylinder converts fluid
power into linear mechanical force and motion. The Belparts
Hydraulic Cylinder Assy has a sturdy construction with high-quality
materials used in its manufacture. It is designed to withstand
heavy loads and extreme conditions, making it a reliable and
durable option for heavy machinery and equipment.
The Hydraulic Cylinder Construction is crucial in determining its
performance and durability. The Belparts Hydraulic Cylinder Assy is
made with precision machining and strict quality control to ensure
its reliability and durability. The piston and rod are made from
high-grade materials to withstand heavy loads and extreme
conditions. The cylinder barrel is made from high-strength steel to
resist wear and tear. The end caps are designed to prevent leakage
and ensure smooth operation.
The Belparts Hydraulic Cylinder Assy is suitable for a variety of
applications in heavy machinery and equipment. It can be used in
construction machinery, mining equipment, agriculture equipment,
and other industrial applications. Its sturdy construction and
high-quality materials make it ideal for use in harsh environments.
It is a reliable and efficient option for those looking for a
quality hydraulic cylinder system.
Overall, the Belparts Hydraulic Cylinder Assy is a reliable and
durable option for heavy machinery and equipment. Its sturdy
construction and high-quality materials ensure its performance and
durability in harsh environments. With a stroke length of 500mm,
bore diameter of 100mm and rod end pin diameter of 20mm, it is
suitable for a variety of applications in construction, mining,
agriculture and other industrial sectors.
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|
| 1 | 1183936 | CYLINDER AS | 1 | |
| 1A | 0875533 | BEARING-SLEEVE (106.2MM OD) | 1 | |
| 2 | 1232112 | LOCKNUT-SPECIAL (M90X2-THD) | 1 | |
| 3 | 1850230 | RING | 2 | |
| 4 | 9X3604 | SEAL AS. | 1 | |
| 5 | 1850231 | RING | 1 | |
| 6 | 1850232 | PISTON | 1 | |
| 7 | 0951635 | SEAL-O-RING (ID=149.60mm) | 1 | |
| 8 | 0875550 | RING (BACK UP) | 1 | |
| 9 | 7Y4944 | RING (RETAINING) | 1 | |
| 10 | 1140762 | BEARING-SLEEVE | 1 | |
| 11 | 1289266 | SEAL (ID=109.00mm) | 1 | |
| 12 | 0875551 | HEAD | 1 | |
| 13 | 7Y5239 | BOLT (SOCKET HEAD) (M24X3.0X100MM) | 8 | |
| 14 | 1709865 | SEAL-U-CUP | 1 | |
| 15 | 7Y4941 | RING-BACK UP | 1 | |
| 16 | 1659291 | SEAL (OD=126.26mm) | 1 | |

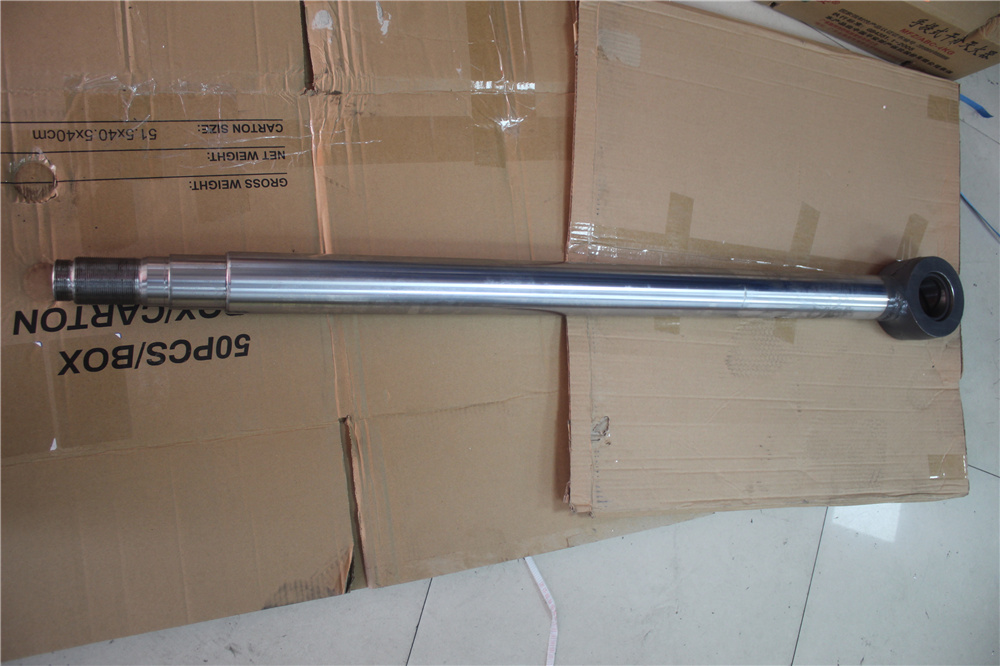

| 17 | 2478904 | ROD AS | 1 | |
| 17A | 0875548 | BEARING-SLEEVE (120MM LG) | 1 | |
| | | | |
| | AVAILABLE REPAIR KIT(S): | | |
| 2254625 | KIT-SEAL (INCLUDES RINGS & SEALS) | 1 | |
| | KIT MARKED J SERVICES PART(S) MARKED J | | |
| | METRIC PART | | |
| | REMFG PART MAY BE AVAILABLE | | |
Support and Services:
Our Hydraulic Cylinder Assy product comes with technical support
and services to ensure optimal performance and longevity. Our team
of experienced technicians is available to answer any questions you
may have about the product and provide guidance on installation and
maintenance. In addition, we offer repair and reconditioning
services to extend the life of your hydraulic cylinder and save you
money in the long run. Contact us today to learn more about our
technical support and services for the Hydraulic Cylinder Assy
product.
