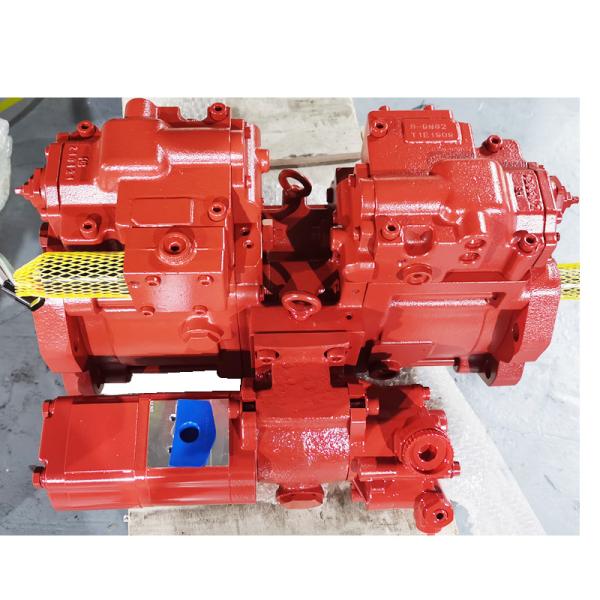

Product Description:
As a crucial part of any hydraulic excavator pumping unit, the
hydraulic pump plays a key role in ensuring your machine operates
smoothly and efficiently. That's why we've made sure to use only
the best materials and manufacturing processes in the creation of
our Komatsu Hydraulic Pump. With a focus on quality and
reliability, you can count on this hydraulic pump to deliver the
power you need, exactly when you need it.
So whether you're working on a construction site, mining project,
or any other heavy-duty application, the Komatsu Hydraulic Pump is
the perfect choice for your excavator. With its superior
performance and durable construction, you can trust this hydraulic
pump to keep your machine running smoothly, no matter what
challenges you may face.
Features:
- Product Name: Hydraulic Pump Excavator Parts
- Excavator Model: R150W-9, R140W-9
- Power: Hydraulic
- Warranty: 1 Year
- Part Name: Hydraulic Pump
- Product: Komatsu Hydraulic Pump
- Features: Excavator Hydraulic Pump Kit, Excavator Hydraulic Pump
Kit, Hydraulic Excavator Pumping Unit
Technical Parameters:
| Quality | Made In China |
| Warranty | 1 Year |
| Product | Komatsu Hydraulic Pump |
| Power | Hydraulic |
| Part Name | Hydraulic Pump |
| Excavator Model | R150W-9 R140W-9 |
This Excavator Hydraulic Pump Kit is a pumping device for excavator
that uses hydraulic power to operate. It is a high-quality product
made in China and comes with a 1-year warranty. The hydraulic
excavator pumping unit is designed specifically for the Komatsu
Hydraulic Pump and is compatible with the R150W-9 and R140W-9
excavator models.
Applications:
The Hydraulic Pumping Unit plays a crucial role in the overall
performance of the excavator. It is responsible for converting
mechanical power into hydraulic power, which is then used to
operate the various components of the excavator.
The Belparts Hydraulic Pump is a high-quality product that is made
in China. It is designed to meet the specific requirements of the
R150W-9 and R140W-9 models of Hydraulic Excavators. The pump is
made from durable materials and has a long service life.
The Belparts Hydraulic Pump is suitable for use in a range of
applications. It is ideal for use in construction sites, mines, and
quarries. The pump is also suitable for use in agricultural and
forestry applications.
The Belparts Hydraulic Pump is easy to install and maintain. It is
a cost-effective solution for those who need a reliable and
efficient Pump for Hydraulic Excavator.
The Belparts Hydraulic Pump is a popular choice for those who are
looking for a high-quality Hydraulic Excavator Pumping Unit. It is
a reliable and efficient product that is designed to meet the
specific requirements of the R150W-9 and R140W-9 models of
Hydraulic Excavators.
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|
| * | 31Q4-10010 | MAIN PUMP
*-1, *-2, *-3 | 1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 111 | XJBN-00802 | SHAFT(F)-DRIVE | 1 | |
| 113 | XJBN-00803 | SHAFT(R)-DRIVE | 1 | |
| 116 | XJBN-00804 | GEAR-1ST | 1 | |
| 123 | XJBN-00429 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00805 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00806 | SPACER-BEARING | 4 | |
| N141 | XJBN-00807 | BLOCK-CYLINDER | 2 | |
| N151 | XJBN-00425 | PISTON | 18 | |
| N152 | XJBN-01278 | SHOE | 18 | |
| 153 | XJBN-00808 | PLATE-SET | 2 | |
| 156 | XJBN-00422 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00420 | PLATE-SHOE | 2 | |
| N212 | XJBN-00419 | PLATE-SWASH | 2 | |
| N214 | XJBN-00418 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00417 | SUPPORT | 2 | |
| 261 | XJBN-00809 | COVER-FR | 1 | |
| 271 | XJBN-01046 | CASING-PUMP | 2 | |
| 312 | XJBN-00812 | BLOCK-VALVE | 1 | |
| N313 | XJBN-01045 | PLATE(R)-VALVE | 1 | |
| N314 | XJBN-01044 | PLATE(L)-VALVE | 1 | |
| 326 | XJBN-00937 | COVER | 1 | |
| 401 | XJBN-00411 | SCREW | 8 | |
| 406 | XJBN-00410 | SCREW | 8 | |
| 414 | XJBN-01371 | SCREW | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 467 | XJBN-00409 | PLUG | 4 | |
| 468 | XJBN-00237 | PLUG | 2 | |
| 490 | XJBN-00032 | PLUG | 15 | |
| N531 | XJBN-00815 | PIN-TILTING | 2 | |
| 532 | XJBN-00407 | PISTON-SERVO | 2 | |
| 534 | XJBN-00816 | STOPPER(L) | 2 | |
| 535 | XJBN-00405 | STOPPER(S) | 2 | |
| N548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00888 | O-RING | 2 | |
| 710 | XJBN-00387 | O-RING | 1 | |
| 711 | XJBN-00878 | O-RING | 1 | |
| 717 | XJBN-00401 | O-RING | 2 | |
| 719 | XJBN-00400 | O-RING | 2 | |
| 724 | XJBN-00044 | O-RING | 18 | |
| 725 | XJBN-00045 | O-RING | 2 | |
| 727 | XJBN-01357 | O-RING | 2 | |
| 728 | XJBN-00097 | O-RING | 4 | |
| 732 | XJBN-00820 | O-RING | 2 | |
| 774 | XJBN-01029 | SEAL-OIL | 1 | |
| 789 | XJBN-00398 | RING-BACK UP | 2 | |
| 792 | XJBN-00397 | RING-BACK UP | 2 | |
| 808 | XJBN-00396 | NUT-HEX | 4 | |
| 824 | XJBN-00395 | RING-SNAP | 2 | |
| 885 | XJBN-00394 | PIN-VALVE PLATE | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 4 | |
| 901 | XJBN-00393 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SCREW-SET | 2 | |
| 954 | XJBN-00392 | SCREW-SET | 2 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| 079 | @ | FUEL INJECTION PIPE & NOZZLE
SEE 4020 | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE
SEE 4020 | 2 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE
SEE 4030 | 1 | |
| 011 | XJBN-01572 | PISTON SUB ASSY
SEE ILLUST | 2 | |
| 013 | XJBN-01048 | CYLINDER SUB ASSY-RH
SEE ILLUST | 1 | |
| 014 | XJBN-01047 | CYLINDER SUB ASSY-LH
SEE ILLUST | 1 | |
| 030 | XJBN-00800 | SWASH PLATE SUB ASSY
SEE ILLUST | 2 | |
| 530 | XJBN-00801 | TILTING PIN SUB ASSY
SEE ILLUST | 2 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR | |
Support and Services:
Our Hydraulic Pump Excavator Parts are designed to provide reliable
and efficient performance for your excavator. Our team of technical
experts are available to provide support and assistance with any
product related questions or issues. We offer a range of services
including installation, maintenance, and repair to ensure that your
equipment operates at its best.
