    Belparts Excavator ZX200-3 9262319 9262320 Hydraulic Pump Assy For HPVO118HW-RH26A

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : ZX850-3 ZX650-3
    Price : Negotiable price
    Payment Terms : T/T, Paypal and Trade Assurance
    Supply Ability : 1000pieces
    Delivery Time : 1-7days
    • Product Details
    • Company Profile

    Belparts Excavator ZX200-3 9262319 9262320 Hydraulic Pump Assy For HPVO118HW-RH26A

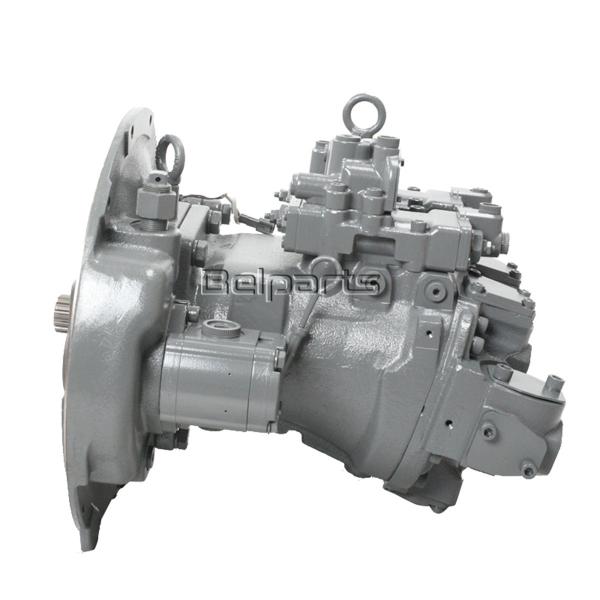

    Belparts excavator ZX200-3 9262319 9262320 hydraulic pump assy for HPVO118HW-RH26A


    The hydraulic pump converts mechanical energy into hydraulic energy to power the excavator's hydraulic system. When the engine drives the pump shaft to rotate, the internal pistons or gear sets create oil suction and compression processes, forming a high-pressure oil flow. Belparts hydraulic pumps feature variable displacement design that automatically adjusts output flow according to load requirements, achieving high energy efficiency.


    Product name

    Belparts excavator hydraulic main pump

    Place of Origin:

    China(mainland)

    Model:

    ZX200-3

    Part number:

    9262319 9262320 3055594

    Payment term:

    T/T & PayPal

    Delivery time:

    Within 2 days after receiving the payment

    Packing:

    Standard exporting packing or as required


    List of spare parts

    #Part NoPart NameQty.Price request
    9262319PUMP DEVICE (FOR ASSEMBLY OF MACHINE)1
    (9262320)PUMP DEVICE (FOR TRANSPORTATION)1
    011033158. CASING; GEAR1
    053063840. GEAR; PILOT1
    063055594. SHAFT; GEAR1
    10958740. BRG.; BALL2
    11962002. RING; RETAINING1
    12991725. RING; RETAINING1
    344099290. PIN; SPRING2
    434310055. SEAL; OIL1
    44991725. RING; RETAINING1
    614438059. GAUGE; LEVEL1
    629743977. PIPE; GAUGE1
    639742779. PACKING1
    64M340816. BOLT; SOCKET2
    8394-0649. ELBOW1
    844645330. PLUG1
    864234782. PLUG1
    874092534. PLUG1
    87A4509180.. O-RING1
    103. PUMP; UNIT1
    112. NAME-PLATE1
    113M492564. SCREW; DRIVE2
    1179256847. PUMP; REGULATOR (1)1
    1189256848. PUMP; REGULATOR (2)1
    1199218005. PUMP; GEAR1
    121M341030. BOLT; SOCKET2
    122984054. WASHER; SPRING2
    1234114402. WASHER2
    1274631943. PIPE1
    1304293950. ELBOW; S2
    130A957366.. O-RING1
    1334641504. COUPLING1
    133A4463992.. HUB1
    133B4334899.. SCREW; SET2
    133C4101345.. PIN; SPRING4
    133D4463993.. INSERT4
    133E4334894.. BOLT; SOCKET4
    133F4654760.. ELEMENT1
    1368058352. PACKING1
    137J901645. BOLT6
    138A590916. WASHER; SPRING6
    2004451036KIT; SEAL1

    The hydraulic pump converts mechanical energy into hydraulic energy to power the excavator's hydraulic system. When the engine drives the pump shaft to rotate, the internal pistons or gear sets create oil suction and compression processes, forming a high-pressure oil flow. Belparts hydraulic pumps feature variable displacement design that automatically adjusts output flow according to load requirements, achieving high energy efficiency.


    Product Structure

    1. Pump Housing: High-strength cast iron material providing stable support

    2. Rotating Assembly: Precisely machined swash plate, cylinder block and piston set

    3. Control Valve Group: Includes pressure compensation valve, flow control valve, etc.

    4. Shaft Sealing System: Multi-seal design to prevent leakage

    5. Bearing System: High-load bearings ensure long-term smooth operation





    991725
