Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts

GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts from wholesalers

    Buy cheap Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts from wholesalers
    • Buy cheap Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts from wholesalers
    • Buy cheap Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts from wholesalers
    • Buy cheap Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts from wholesalers

    Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : R480-9S
    Price : Negotiable price
    Payment Terms : T/T, Paypal and Trade Assurance
    Supply Ability : 1000pieces
    Delivery Time : 1-7days
    • Product Details
    • Company Profile

    Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts

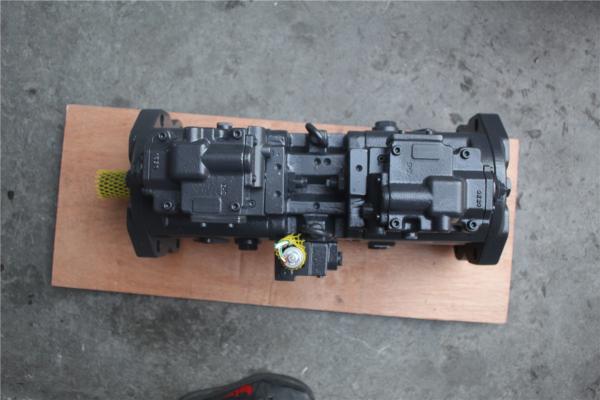

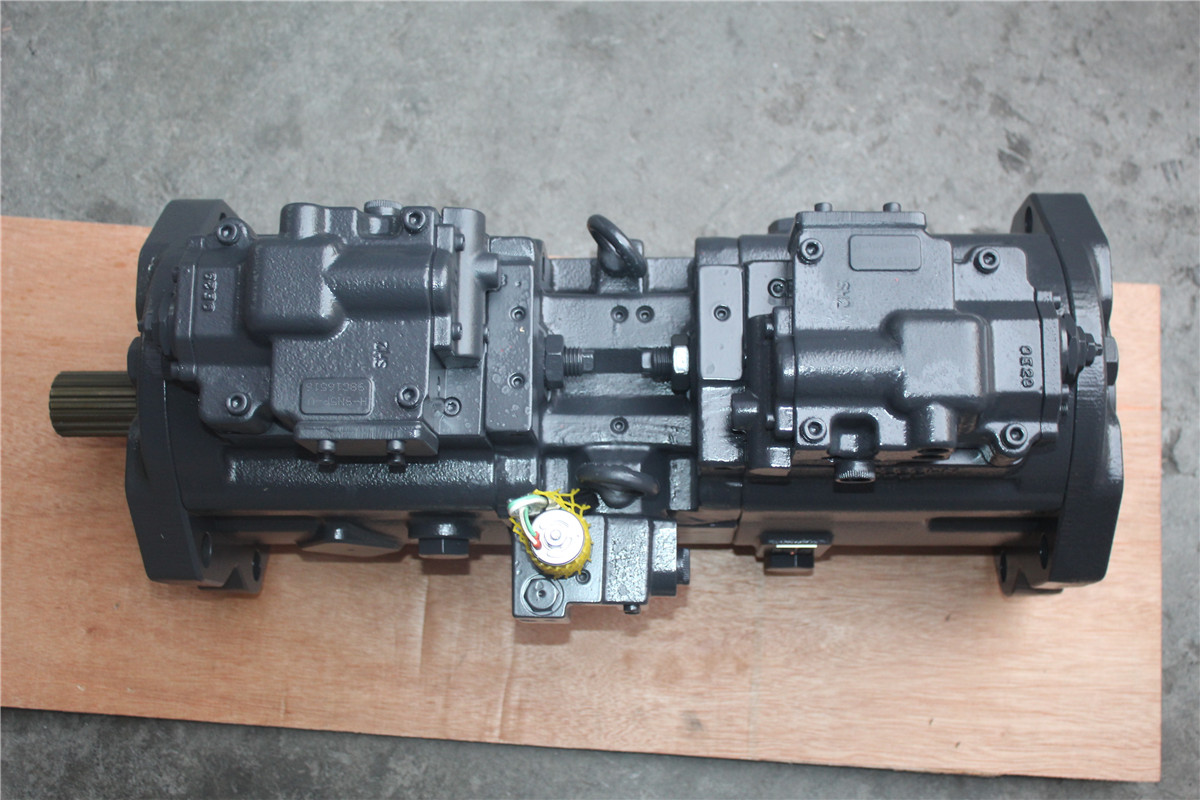

    Hyundai R480-9S 31QB-10030 excavator pump for K5V200DT-139R-9N1A excavator parts


    Product name

    Belparts excavator hydraulic main pump

    Place of Origin:

    China(mainland)

    Model:

    R480-9S

    Part number:

    31QB-10030 31QB-10011

    Payment term:

    T/T & PayPal

    Delivery time:

    Within 3 days after receiving the payment

    Packing:

    Standard exporting packing or as required


    List of spare parts

    #Part NoPart NameQty.Price request
    *31QB-10011MAIN PUMP
    *-1,-2,-3,-4
    1
    *-1@FUEL INJECTION PIPE & NOZZLE1
    111XJBN-00976SHAFT-DRIVE(F)1
    113XJBN-00977SHAFT-DRIVE(R)1
    114XJBN-00572COUPLING-SPLINE1
    123XJBN-00571BEARING-ROLLER2
    124XJBN-00978BEARING-NEEDLE2
    127XJBN-00569SPACER-BEARING3
    130XJBN-00568BOOSTER1
    N012XJBN-00680BLOCK-CYLINDER2
    N151XJBN-00681PISTON18
    N152XJBN-01522SHOE18
    153XJBN-00683PLATE-SET2
    156XJBN-00564BUSHING-SPHERICAL2
    157XJBN-00541SPRING-CYLINDER18
    211XJBN-00023PLATE-SHOE2
    N212XJBN-00012PLATE-SWASH2
    N214XJBN-00013BUSHING-TILTING2
    251XJBN-00560SUPPORT-S.P.2
    261XJBN-00025COVER(FR)-SEAL1
    263XJBN-00979COVER(RR)-SEAL1
    271XJBN-01594CASING-PUMP2
    311XJBN-00559COVER-VALVE(F)1
    312XJBN-00558COVER-VALVE(R)1
    N313XJBN-01387PLATE(R)-VALVE1
    N314XJBN-01388PLATE(L)-VALVE1
    401XJBN-00028SCREW4
    402XJBN-00555SCREW-HEX SOC HD4
    406XJBN-00355SCREW-HEX SOC HD8
    466XJBN-00356PLUG4
    468XJBN-00031PLUG4
    490XJBN-00032PLUG28
    492XJBN-00234PLUG1
    N531XJBN-00981PIN-TILTING2
    532XJBN-00703PISTON-SERVO2
    534XJBN-00034STOPPER(L)2
    535XJBN-00035STOPPER(S)2
    N548XJBN-00360PIN-FEED BACK2
    702XJBN-00040O-RING2
    706XJBN-00982O-RING1
    710XJBN-00983O-RING2
    717XJBN-00984O-RING2

    The hydraulic pump is a critical component in excavators, responsible for converting mechanical energy into hydraulic energy. It supplies high-pressure hydraulic oil to various actuators (such as hydraulic cylinders and motors), enabling smooth and efficient operation of the excavator. High-quality hydraulic pumps ensure durability, energy efficiency, and precise control, making them essential for construction, mining, and other heavy-duty applications.



    Company Information


    Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts

    Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts

    Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts

    Factory


    Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator PartsHyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts

    Exhibition


    Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts

    Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts

    Delivery&Logistics


    Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts

    Hyundai R480-9S 31QB-10030 31QB-10011 Excavator Pump For K5V200DT-139R-9N1A Excavator Parts

    • Packaging Details:

    • 1.According to orders, pack the spare parts one by one by oil paper;

    • 2.Put them into small carton boxes one by one;

    • 3.Put the packed small carton boxes into bigger carton boxes one by one;

    • 4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

    • 5. Goods is packed with oil paper and plastic bags inside

    • 6.Using wooden case package.

    • 7.We support the custom-made demand for package
