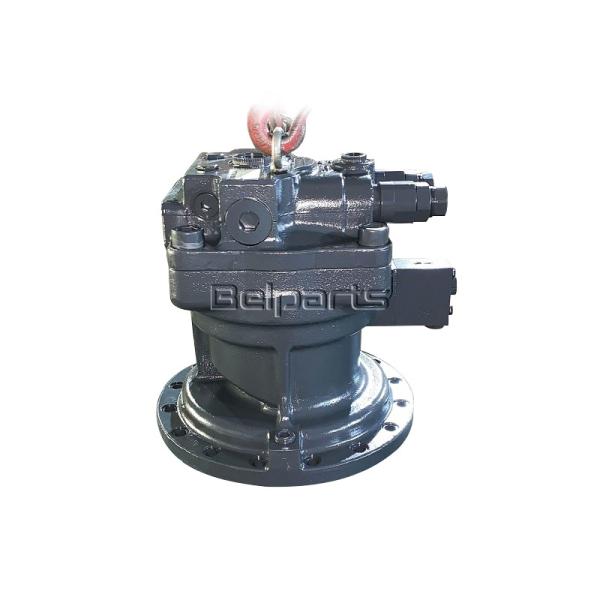

Belparts Excavator Swing Motor DX235LCR-5 170303-00040A 170301-00027 For Hydraulic Motor

Belparts excavator swing motor DX235LCR-5 170303-00040A 170301-00027 for hydraulic motor

Product Description

The slewing motor does not operate independently but works in coordination with various hydraulic control components, including:

• Main Control Valve: Regulates the direction and flow of hydraulic oil to control slewing speed and direction.

• Anti-shock Valve: Prevents sudden pressure spikes in the hydraulic system due to inertial impact when stopping rotation, protecting the motor and pipelines.

• Parking Brake: Typically uses a spring-applied, hydraulically released mechanism to ensure the excavator does not rotate unexpectedly due to external forces when parked.

• Make-up Valve: Prevents motor cavitation, ensuring smooth rotation.

Modern excavator slewing motors typically adopt an integrated design of axial piston motor + planetary gear reducer to increase torque output and reduce speed. Its core components include:

1. Cylinder Block: Contains multiple precision-machined piston bores where pistons reciprocate under high-pressure oil.

2. Swash Plate: By adjusting the swash plate angle, the motor's displacement can be changed, enabling variable control.

3. Port Plate: Distributes high-pressure and low-pressure oil to ensure continuous motor rotation.

4. Output Shaft: Connects to the reduction gear, ultimately driving the slewing ring gear.

5. Belparts Swing Motor		Swing Motor Assy Supplier
   31N6-10210	R210LC-7	2401-9254 A/B/G	Solar 55
   31E6-12020	R130LC3	170301-00126 K1016316C	DX140LC
   31N4-10130	R140LC7	170301-00160A	DX140LC-3
   31EL-12060-01	R180LC	170301-00009	DX140LCR
   31EL-12060	R180LC7	401-00462K	DX140W
   31Q5-10160	R180LC9	170301-00088A	DX140W-3
   31N6-10210	R210LC7	K1033400A	DX170W
   31EM-10120	R220LC7	2401-1263A	Solar 170-3
   31N7-10160	R250LC7	401-00036G	Solar 170LC-V
   31N7-11160	R250LC7	2401-1194	Solar 170-3
   31E5-12210	R320LC-3	K1013964A	Solar 180W-V
   31N8-12020	R320LC-7	170301-00066	Solar 185W-V
   31NA-10160	R360LC-7	170301-00066B
   31NB-11140-01	R450LC	170301-00066A
   14550092	EC460B	401-00051 A/B	Solar 200W-V
   14625697	EC360B	170301-00110A	DX210W
   14550091	EC210B M5X130CHB	170301-00110B
   1142-00651	M2X170CHB	K1009865C
   14550092	M5X130CHB	170301-00067	Solar 210W-V
   2401-9255A	Solar 55	170301-0006A
   2401-9255B		401-00051C
   2401-9255C		401-00051E
   2401-9255E		401-00051G
   2401-9255G		170301-00109A	DX225LC
   2401-9255K		170301-00109B
   2401-9255K	Solar 55W-V	K1015490
   401-000062A		K1015490A
   2401-9133	Solar 130-2	170301-00111B	DX225LCA
   2401-6176B	Solar 130-3	K1045919
   2401-9102P	Solar 130W	170301-00113	DX225NLC
   2401-9139P	Solar 130W-3	170301-00113A
   37S0C006N0011	Solar 130W-V	2401-9099P	Solar 210LC
   170303-00003	DX140LCR	2401-1199	Solar 210LC-3
   170303-00003A		2401-1269A	Solar 220LC-V
   170303-00068	DX140W-3	2401-1269B
   170303-00041A	DX170W	2401-1269G
   K1037394A		2401-1269J
   401-00086	Solar 170LC-V	2401-1269K
   2401-9159A	Solar 170W-3	2401-1269L
   170303-00048	DX180LC	2401-1269N
   170303-00049	DX225LCA	2401-1269E	Solar 220N-V
   170303-00049B		170301-00011	Solar 225LC-V
   K1045024		401-00375 A/B/C	Solar 225NLC-V
   170303-00043		K1039373	DX230LC
   2401-9099C	Solar 220lc	170301-00028	DX235LCR
   2401-9219A	Solar 220lc-3	401-00325G	Solar 230LC-V
   2401-9284	Solar 220LC-V	170301-00121A	DX255LC
   2401-9284A		170301-00121B
   401-00086A		K1010121B
   401-00086B		K1010121C
   K9000352		170301-00162B	DX255LC-3
   401-00391		401-00125 A/B/C	Solar 250LC-V
   401-00391A	Solar 230LC-V	401-00316A	Solar 255LC-V
   170303-00052	DX255LC	401-00316B
   170303-00052A		2401-1166	Solar 280LC-3
   170303-00072	DX255LC-3	2401-1247
   401-00126A	Solar 250LC-V	2401-1247A
   K1007950	Solar 255	2401-1246 A/B/C	Solar 290LC-V
   2401-90965AP	Solar 280LC	2401-1266A/B/C/E	Solar 330LC-V
   2401-9141B	Solar 280LC-3	401-00298B	Solar 340lc-v
   2401-9141C		401-00298C
   2401-9242	Solar 290LC-V	401-00298E
   2401-9242B		2401-1273A	Solar 400LC-V
   170303-00064	DX300LC-3	2401-1273B
   2401-9291	Solar 330LC-V	2401-1273C
   2401-9304A	Solar 450LC-V	2401-1273E
   170303-00047A		2401-1273G
   170303-00050	DX480LC	2401-1273H
   170303-00050A		2401-1273E	Solar 420LC-V
   170303-00050B		2401-1273G
   401-00086A	Solar 220LC-V	2401-1273H
   401-00086B		2401-1280	Solar 450-3
   170303-00072	DX255LC-3	2401-1280A
   2401-9141A	Solar 280LC-3	2401-1280B
   TSM195CHB	Solar 300LC	2401-1280C
   2401-9291	Solar 330LC-V	2401-1280H	Solar 450LC-V
   2401-9309A	Solar 420LC-V	2401-1280J
   2401-9304	Solar 450-3	2401-1280K
   170303-00047	Solar 470LC-V	401-00249A	Solar 470LC-V
   2401-9304B		401-00249B
   14550095	EC290B	401-00249C
   1142-00930	EC210B	401-00249E
   7118-30000	EC210B	401-00249G
   14550091	M5X130CHB	K1000757A/B	DX480LC
   1142-00651	M2X170CHB	170301-00001B	DX480LCA
   14550091	EC210BLC	K1057317	DX55

To ensure long-term stable operation of the slewing motor, the following maintenance should be performed regularly:

1. Hydraulic Oil Management: Keep the oil clean, replace filters periodically, and prevent contaminants from damaging precision components.

2. Seal Inspection: Check for oil leaks in the motor shaft seals and end covers to avoid insufficient lubrication due to hydraulic oil leakage.

3. Brake Testing: Regularly verify if the brake releases properly to prevent overheating caused by brake drag.

4. Abnormal Noise Monitoring: If unusual noises occur during rotation, it may indicate bearing or gear wear, requiring timely disassembly and inspection.
