Excavator Hyundai R210-7 R215-7 R220-5 R225-7 Main Pump For K3V112DT-9C32-12T Hydraulic Spare Parts

Ask Lasest Price
Brand Name :	Belparts
Model Number :	R210-7 R215-7 R220-5 R225-7
Price :	Negotiable price
Payment Terms :	T/T, Paypal and Trade Assurance
Supply Ability :	1000pieces
Delivery Time :	2-5days

Add to Cart

Product Details
Company Profile

Excavator Hyundai R210-7 R215-7 R220-5 R225-7 Main Pump For K3V112DT-9C32-12T Hydraulic Spare Parts

Excavator Hyundai R210-7 R215-7 R220-5 R225-7 main pump for K3V112DT-9C32-12T hydraulic spare parts

Belparts (GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED), is a foreign trade company integrating development, sales, procurement, warehousing, transportation and service. Founded in September 2013, we have more than twelve years of experience in machinery trade.

Our main products are Excavator Hydraulic Spare Parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality. Until now, our products have been exported to more than 198 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with our own brand "Belparts", which is highly praised by foreign customers and enjoys a high reputation.

Main Business Model

DH50-7, DH55D, DH60-7, DH80, DH130, DH150, DH150W-9, DH215-5, DH200-5, DH150LC-7, DH215-7, DH220-5, DH220-7, DH220-9, DH220-10, DH225-9, DH258, DH258LC-7, DH280, DH290B, DH300-5, DH300-7, DH320, DH360, DH370, DH500, DX300

R60-7, R80, R130, R140, R150-7, R150-9, R1107-7, R160-7, R210, R220, R220-7, R215-7, R220-5, R225-7, R225-9T, R225lc-7, R290, R350-7,R110-9, R215-9, R275LC-9, R305, R305-7, R320, R335-7,R360, R370, R375, R375-7H, R455, R460, R485-7

EC130, EC140B, EC210B, EC210C, EC235C, EC240B, EC290, EC290B, EC290C, EC360B, EC460B, EC460C, EC480D

E305, E320, E325C, E315C, E330C, E315D, E320D, E325D, E330D, E360D, E70B, E120B, E200B, E320B, E330B

PC35,PC40,PC45, PC50, PC55, PC60,PC60-6, PC70, PC75, PC78, PC80, PC90, PC100, PC110, PC120, PC120-7, PC130, PC150, PC160, PC180, PC200,PC200-6, PC200-7,PC200-8, PC210-8, PC220-6,PC220-7,PC210, PC220, PC230, PC240,PC240-8, PC270, PC300, PC360,PC360-7, PC350, PC400, PC450, PC650, PC750, PC1250 D31, D50, D65, D85, D155, D275, D375, D475

EX200-2, EX220-2, EX120-5, EX200-5, EX220-5, EX400-5, ZX200-3, ZX210-3, ZX240-3, ZX270-3, ZX330-3, ZX360-3, ZX110, ZX120, ZX200-6,ZX200-3G,ZX200-5G,ZX330-3G,ZX350-5G

SK200-3, SK200-5, SK135rs, SK70rs,SK60,SK120-5, SK200-8, SK250-8, SK260-8, SK130-8, SK200-6e, SK210-6e, SK160

HD80R, HD820-5, HD1023, HD1430, HD700-7,HD1430-7, HD1250-7, HD450-7

SH120A2/A3,SH130, SH200A2/A3, SH210A5, SH240A3, SH360A5

KX155, KX135, KX161-3

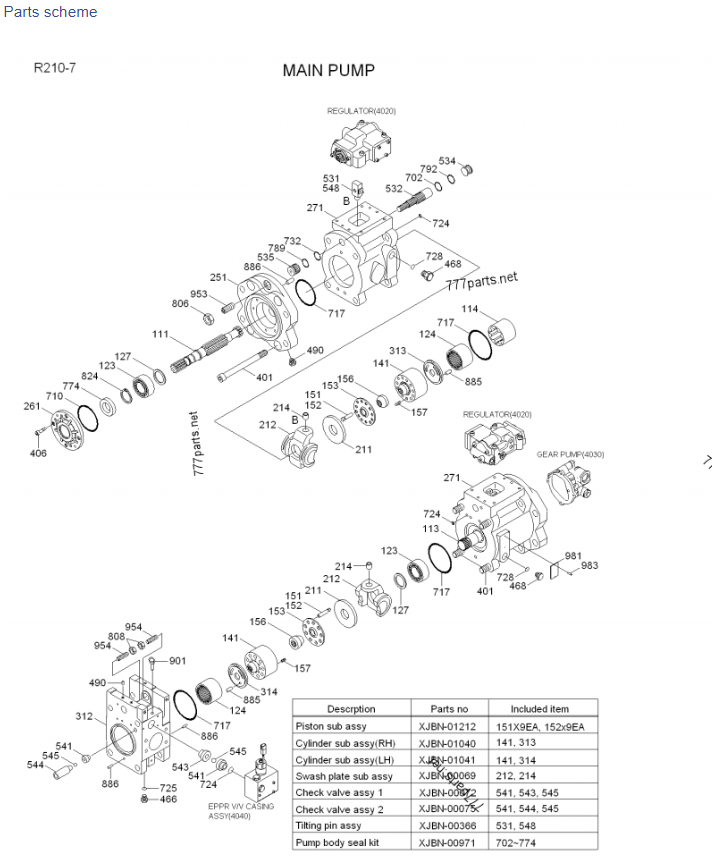

List of spare parts

#	Part No	Part Name	Qty.
*	31N6-10090	MAIN PUMP ASSY	1
*-1	@	FUEL INJECTION PIPE & NOZZLE	1
111	XJBN-00077	DRIVE SHAFT(F)	1
113	XJBN-00078	DRIVE SHAFT(R)	1
114	XJBN-00351	COUPLING-SPLINE	1
123	XJBN-00950	BEARING-ROLLER	2
124	XJBN-00786	BEARING-NEEDLE	2
127	XJBN-00081	SPACER-BEARING	4
S141	XJBN-00067	BLOCK-CYLINDER	2
S151	XJBN-01032	PISTON	18
S152	XJBN-01214	SHOE	18
153	XJBN-00945	PLATE-SET	2
156	XJBN-00083	BUSHING-SPHERICAL	2
157	XJBN-00084	SPRING-CYLINDER	18
211	XJBN-00085	PLATE-SHOE	2
S212	XJBN-00070	PLATE-SWASH	2
S214	XJBN-00071	BUSHING-TILTING	2
251	XJBN-00086	SUPPORT	2
261	XJBN-00087	COVER(F)-SEAL	1
271	XJBN-01034	CASING-PUMP	2
312	XJBN-00089	BLOCK-VALVE	1
S313	XJBN-01035	PLATE-VALVE(R)	1
S314	XJBN-01036	PLATE-VALVE(L)	1
401	XJBN-00090	SCREW-HEX SOC HD	8
406	XJBN-00355	SCREW-HEX SOC HD	4
466	XJBN-00356	PLUG	2
468	XJBN-00357	PLUG	4
490	XJBN-00032	PLUG	18
S531	XJBN-00358	PIN-TILTING	2
532	XJBN-00955	PISTON-SERVO	2
534	XJBN-01037	STOPPER(L)	2
535	XJBN-00093	STOPPER(S)	2
S541	XJBN-00859	SEAT	4
S543	XJBN-00860	STOPPER	2
S544	XJBN-00861	STOPPER	2
S545	XJBN-00359	BALL-STEEL	4
S548	XJBN-00360	PIN-FEED BACK	2
702	XJBN-00918	O-RING	2
710	XJBN-00095	O-RING	1
717	XJBN-00096	O-RING	4
724	XJBN-00361	O-RING	16
725	XJBN-00362	O-RING	4
728	XJBN-00363	O-RING	4
732	XJBN-00912	O-RING	2
774	XJBN-00962	SEAL-OIL	1
789	XJBN-00099	RING-BACK UP	2
792	XJBN-00100	BACK-UP RING	2
806	XJBN-00101	NUT-HEX	2
808	XJBN-00364	NUT	2
824	XJBN-00102	RING-SNAP	2
885	XJBN-00103	PIN-VALVE PLATE	2
886	XJBN-00365	PIN-SPRING	4
901	XJBN-00104	BOLT-EYE	2
953	XJBN-00105	SCREW-SET	2
954	XJBN-00106	SCREW-SET	2
981	XJBN-00156	NAME PLATE	1
983	XJBN-00341	PIN	2
*-2	@	FUEL INJECTION PIPE & NOZZLE SEE 4020	1
*-3	@	FUEL INJECTION PIPE & NOZZLE SEE 4030	1
*-4	@	FUEL INJECTION PIPE & NOZZLE SEE 4040	1
011	XJBN-01212	PISTON SUB ASSY	2
013	XJBN-01040	CYLINDER SUB ASSY-RH	1
014	XJBN-01041	CYLINDER SUB ASSY-LH	1
030	XJBN-00069	SWASH PLATE SUB ASSY	2
041	XJBN-00072	CHECK VALVE ASSY 1	2
042	XJBN-00075	CHECK VALVE ASSY 2	2
530	XJBN-00366	TILTING PIN ASSY	2

performance parameter

Displacement: The volume of oil discharged by the pump shaft per revolution determines the working speed and force of the excavator.

Pressure: The pressure of the oil at the pump outlet determines the working capacity of the excavator.

Rotational speed: The rotational speed of the pump shaft affects the flow rate and lifespan of the pump.

Efficiency: The ratio of output power to input power of a pump, reflecting energy loss.

Maintenance

Regularly replace hydraulic oil and filter element to keep the oil clean.

Regularly check the noise, vibration, and temperature of the hydraulic pump, and promptly address any abnormalities found.

Avoid long-term overload work to prevent hydraulic pump overheating and damage.

development trend

High pressure and high flow rate: Improve the work efficiency and operational capacity of excavators.

Intelligence: Adopting electronic control technology to achieve precise control and energy management of hydraulic pumps.

Energy saving and environmental protection: Develop hydraulic pumps with low noise, low energy consumption, and low emissions.

FAQ:

What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 1-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T,PayPal (for small amount) and trade assurance.
