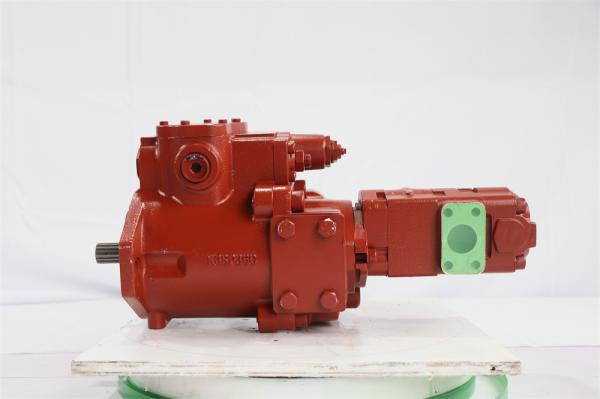

K3SP36C TB175 YC85 LG907 LG908 hydraulic main pump for excavator
parts
|
Product name | Excavator Hydraulic pump K3SP36C |
| Place of Origin: | China(mainland) |
| Model: | YC85 LG907 LG908 JCM908 |
| Part number: | K3SP36C |
| MOQ: | 1 PCS |
| Payment term: | T/T, trade assurance,PayPal |
| Delivery time: | Within 1~7 days after receiving the payment |
| Packing: | Standard exporting packing or as required |
The hydraulic pump of an excavator is the core component of the
hydraulic system, providing power to the entire system like a
heart. It converts the mechanical energy of the engine into
hydraulic energy, drives the hydraulic cylinder and hydraulic motor
to work, and thus completes various actions of the excavator.
Two types
Gear pump: With a simple structure, low cost, and strong anti
pollution ability, but with large flow pulsation and high noise, it
is mostly used in small excavators or auxiliary systems.
Piston pump: with complex structure and high cost, but high working
pressure, large flow rate, high efficiency, and high control
accuracy, it is widely used in medium and large excavators.
Working principle
Oil suction process: The plunger moves backwards, the pump chamber
volume increases, forming a vacuum, and the hydraulic oil in the
oil tank enters the pump chamber under atmospheric pressure.
Oil pressure process: The plunger moves forward, the pump chamber
volume decreases, the hydraulic oil is compressed, the pressure
increases, the oil outlet valve is pushed open, and high-pressure
oil enters the hydraulic system.
performance parameter
Displacement: The volume of oil discharged by the pump shaft per
revolution determines the working speed and force of the excavator.
Pressure: The pressure of the oil at the pump outlet determines the
working capacity of the excavator.
Rotational speed: The rotational speed of the pump shaft affects
the flow rate and lifespan of the pump.
Efficiency: The ratio of output power to input power of a pump,
reflecting energy loss.
| Model No. | Use for |
| AP2D36 | |
| AP2D36 | |
| AP2D28 | R55-7,R60-5-7,CX55 |
| AP2D28 | DH55,DH60-7 |
| PSVD2-27E | LG906,XCM65,FR65 .SEW70,SEW60 |
| K3SP36C | YC85 LG907 LG908 JCM908 |
| K3SP36C | TB175 |
| K3V63DT-HNOV-14T | DH150-7,XE135 |
| K3V63DT-9C22-14T | R130-5,R150-7 |
| K3V63DT-9N09-14T | EC140,XE150,LG150,LG915 ,SC160 |
| K3V63DTP | SK135 |
| K3V63DT-9POH-14T | SY135-8 |
| K3V63DTP-9N09-14T(PTO) | TB1135 |
| K3V63DTP-9C22-14T | JCB130,JCB160,SH120Z3 |
| K5V80DTP-9N61-12T | R150-9 Dedicated |
| K5V80DTP-HNOV-12T(PTOWith brake pump) | DH150W-7 |
| K3V112S-1NCJ-12T Single pump | CHANGE THE EX100/120-2-3 ,PC120-6 |
| K3V112DT-9P12-16T Long axis | CHANGE THE PC200-7 |
| K3V112DTP-9P12-15TShort axis(PTO) | CHANGE THE EX200-5 ZAX200,ZAX230 |
| K3V112DTP-9P12-16TLong axis(PTO) | CHANGE THE ZAX200,EX200-2-3-5 |
| K3V112DT-HNOV-12T | DH220-5-7,DH215-7,DH225-7 |
| K3V112DT-HNOV-14T | JCM921 |
| K3V112DT-9C32-12T | R210-7,R215-7,R220-5,R225-7 |
| K3V112DT-9C32-14T | SH200A1 |
| K3V112DT-9N24-12T | SH280,HD700-5-7,HD800-5-7,HD820,R215-9 |
| K3V112DT-9N24-14 | EC210,EC240,LG225 |
| K3V112DT-9N24-14T | LG225,XE215 |
| K3V112DTP-9C32-14T | JCB220,JCB230 |
| K3V112DTP-9P12-12T | R225-9,R265-9,R275-9 |
| K3V112DTP-9N24-12T | R225-9T,DX225 |
| K3V112DTP-9N24-14T | LG920E,LG922E |
| K3V112DTP-9N24-14T(PTO) | SH200A3Gear pump facing backward |
| K3V112DTP-9N24-14T(PTO) | DX260 Gear pump facing backward |
| K3V112DTP-HNOV-14T(PTO) | DH258-5-7 Gear pump facing backward |
| K3V112DTP-HNOV-14T(PTO) | DH215-9,DH225-9 Gear pump facing forward |
| K3V112DTP-9N24-14T (PTO) | DH220-0E Gear pump facing forward |
| K3V112DT | EC220D |
| K3V112DTP-9TEL-14T | SK200-6E,SK230-6E |
| K3V112DTP-9T8L-14T | SY215-8 |
| K3V112DTP-OE11-14T | SY215-8S/SY215-9 |
| K3V112DTP-YT6K-17T | SK200-8,SK210-8.SK250-8,SK260-8 |
| K3V112DTP1F9R-9Y14-HV | SH210-5 SK210A5 ,CX210 |
| PVD-1B-32CP-9AG5 | | PVD-00B-11-3 |
| PVD-1B-32CP-8AG5 | | PVD-00B-14P |
| PVD-1B-32CP-11G5 | | PVD-00B-16P |
| PVD-1B-24BP-8AG5 | | PVD-0B-16BP-6AG4 |
| PVD-1B-31BP-8AG5 | | PVD-0B-18P-6G3 |
| PVD-1B-32BP-12G5 | | PVD-0B-24P-6G3 |
| PVD-0B-16BP-6AG4 | | PVD-1B-32P-11G5 |
| PVD-0B-18B-5 | | |
| PVD-1B-34P-11G5 | | PVD-2B-40P-16G5 |
| PVD-0B-18P-6G3 | | PVD-2B-42P-14G |
| PVD-00B-14P-5G3 | | PVD-3B-56P-18G5 |
| PVD-00B-15P-5AG3 | | PVK-2B-505 |
| PVD-00B-16P-6AG3 | | PSVD2-21E |
| PVD-0B-24P-11AG5 | | PSVL-54CG |
| PVD-0B-24P-8G3 | | PSVL-42CG |
| PVD-0B-24P-6G3 | | PSVL-84 |
| PVD-0B-12P-5G | | AP2D18 |
| PVD-0B-21P-6G3 | | AP2D18 |
| PVD-1B-25P-8G5 | | AP2D18 |
| PVD-1B-28P-8AG4 | | A10V018 |
| PVD-00B-18P-6AG4 | | A10V018 |
| PVD-0B-19P-6G3 | | AP2D28 |
| PVD-0B-17P-6G3 | | AP2D36 |
| PVD-1B-32P-11G5 | | DVP14-04S5 |
