Excavator DH370-7 401-00359 swing motor parts DX300 hydrualic spare
parts
Product description
|
Product name | Swing motor parts |
| Place of Origin: | China(mainland) |
| Model: | DH370-7 |
| Part number: | 401-00359 |
| MOQ: | 1 PCS |
| Payment term: | T /T & trade assurance & Paypal |
| Delivery time: | Within 2 days after receiving the payment |
| Packing: | Standard exporting packing or as required |
List of spare parts
| # | Part No | Part Name | Comment | Qty. |
|---|
| 3 | K9000924 | BEARING, ROLLER | 1 kg | 1 |
| - | 401-00457B | MOTOR, SWING | 68 kg | 1 |
| 1 | K9000949 | BODY | | 1 |
| 2 | K9000403 | SEAL, OIL | | 1 |
| 4 | S6510850 | RING, RETAINING | | 1 |
| 5 | K9000925 | SHAFT | 3 kg | 1 |
| 6 | K9000926 | PIN, PARALLEL | | 1 |
| 7 | K9000927 | RING, STOP | | 1 |
| 8 | K9000928 | PLATE, FRONT | 1 kg | 1 |
| 9 | K9000929 | KIT, ROTARY | 21 kg | 1 |
| 9A | K9000930 | CYLINDER BLOCK KIT | 6 kg | 1 |
| 9Aa | K9000931 | BLOCK, CYLINDER | | 1 |
| 9Ab | K9000932 | PLATE, VALVE | | 1 |
| 9B | 1.131-00070 | SPRING | | 9 |
| 9C | K9000933 | KIT, RETAINER | 1 kg | 1 |
| 9Ca | K9000934 | GUIDE, BALL | | 1 |
| 9Cb | K9000935 | PLATE, SET | | 1 |
| 9D | K9000936 | PISTON KIT | 3 kg | 1 SET |
| 14 | K9000937 | PLATE, FRICTION | | 3 |
| 15 | K9000938 | PLATE, FRONT | | 3 |
| 16 | K9000939 | PISTON, BRAKE | 3 kg | 1 |
| 17 | 2180-1216D155 | O-RING | E6481931 / 8 kg | 2 |
| 18 | K9000940 | SPRING | | 18 |
| 19 | K9000941 | COVER | 21 kg | 1 |
| 20 | 2.109-00176 | BEARING, NEEDLE | | 1 |
| 21 | S5711031 | PIN, PARALLEL | | 2 |
| 23 | S2227661 | BOLT:SOCKET (M20X2.5X50) | | 2 |
| 24 | 1.426-00010 | POPPET | | 2 |
| 25 | 1.131-00072 | SPRING | 8 kg | 2 |
| 26 | 1.181-00103 | PLUG, DRAIN | | 2 |
| 27 | S8000291 | O-RING | | 2 |
| 28 | K9000942 | VALVE, SWING REACTIONLESS | | 2 |
| 29 | K9000943 | PLUG | | 2 |
| 30 | S8000121 | O-RING | | 2 |
| 31 | S8000181 | O-RING | 1BP18 | 2 |
| 32 | K9000944 | RING, BACK UP | | 2 |
| 33 | K9000945 | RELIEF VALVE ASS`Y | 1 kg | 2 |
| 33A | S8000311 | O-RING | | 1 |
| 33B | S8060310 | RING, BACK-UP | | 1 |
| 33C | S8000261 | O-RING | 1BP26 | 1 |
| 33D | S8000241 | O-RING | 1 kg | 1 |
| 33E | S8060240 | RING, BACK-UP | | 1 |
| 34 | K9000946 | TIME DELAY VALVE ASS`Y | 1 kg | 1 |
| 34A | S8000071 | O-RING | 1BP7 | 1 |
| 34B | S8000151 | O-RING | | 2 |
| 35 | S2206161 | BOLT, HEX SOCKET HEAD | | 3 |
| 36 | 420-00112 | PLUG | | 3 |
| 37 | S8000111 | O-RING | 1BP11 | 3 |
| 38 | 2180-1216D154 | O-RING | | 1 |
| 39 | K9000948 | BUSHING | | 1 |
| * | K9000947 | SEAL KIT, SWING MOTOR | | 1 |
Company information
GZ Belparts Engineering Machinery Co., Ltd, founded in September
2013, is a foreign trade company, which is specialized in procuring
and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts,
travel motor and gearbox, swing motor, and gearbox. Our products
have been exported to more than 100 countries and regions.
What are our advantages:
- 1. Rich commodity data :
- Send us the right model and correct number , we can supply the
corresponding product .
- 2. Strong part number database :
- if you can provide the correct model and correct number, we can
supply the corresponding product.
- 3. Efficient service :
- reply your question right now and solve it in 10 minutes .
- 4. Various logistic solution :
- after - sale service and online support .

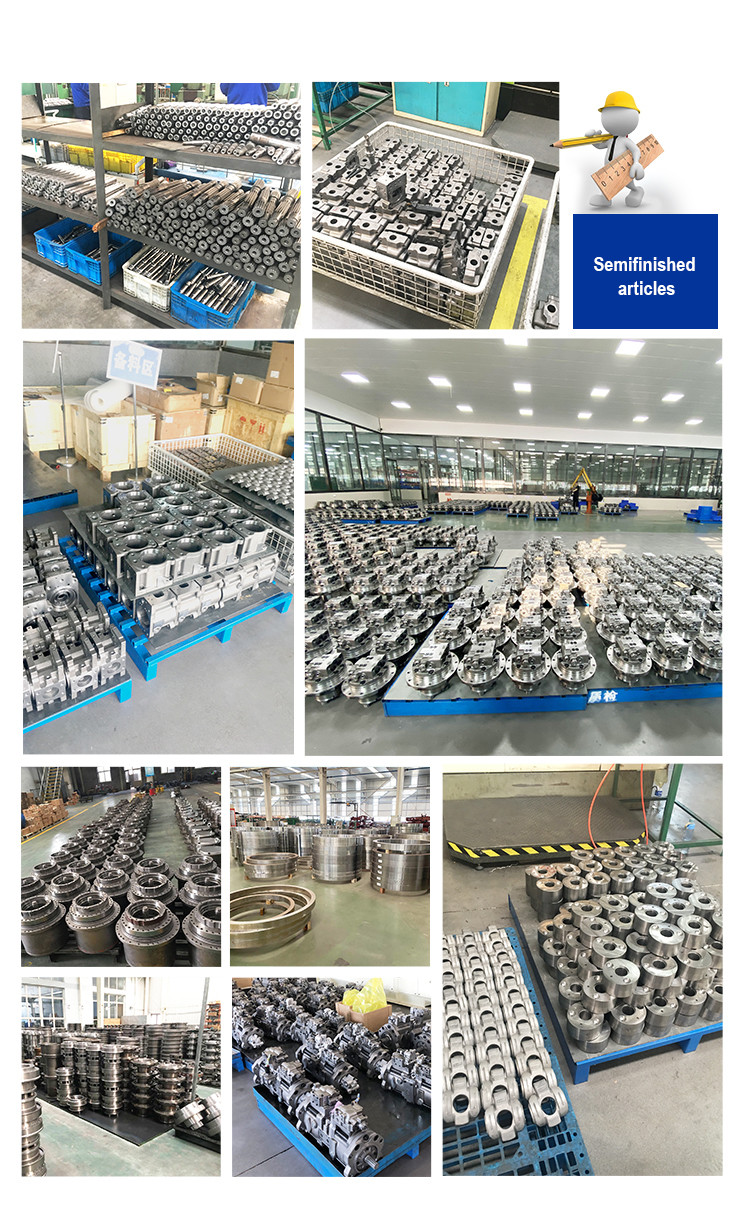

Factory strength
Exhibition
Customer comment
Packing & Shipping
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We
don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your
payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system,
such as travel/swing motor, travel/swing gearbox/parts, hydraulic
pump/parts,gear parts,etc.If you need other excavator parts, we
also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if
you really found something wrong, please provide pictures or video
for us and we will check. After it is confirmed, please return the
goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T, PayPal (for small amount) and trade assurance.
