31Q8-11141 31Q9-19140 Swing Device Excavator R305-9 R330-9

GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 31Q8-11141 31Q9-19140 Swing Device Excavator R305-9 R330-9 from wholesalers

    Buy cheap 31Q8-11141 31Q9-19140 Swing Device Excavator R305-9 R330-9 from wholesalers
    • Buy cheap 31Q8-11141 31Q9-19140 Swing Device Excavator R305-9 R330-9 from wholesalers
    • Buy cheap 31Q8-11141 31Q9-19140 Swing Device Excavator R305-9 R330-9 from wholesalers
    • Buy cheap 31Q8-11141 31Q9-19140 Swing Device Excavator R305-9 R330-9 from wholesalers

    31Q8-11141 31Q9-19140 Swing Device Excavator R305-9 R330-9

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : R305-9 R330-9 R290-9
    Price : Negotiable price
    Payment Terms : T/T, Paypal and Trade Assurance
    Supply Ability : 1000pieces
    Delivery Time : 1-7 days
    MOQ : 1PC
    • Product Details
    • Company Profile

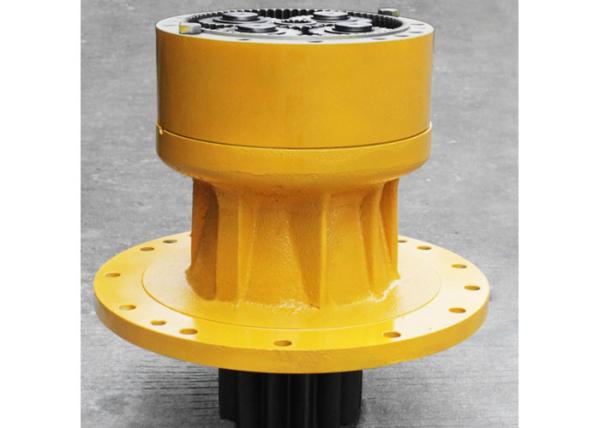

    31Q8-11141 31Q9-19140 Swing Device Excavator R305-9 R330-9

    Excavator R305-9 swing drive gearbox R330-9 31Q9-19140 excavator swing device


    Product name:

    swing reduction

    Place of Origin:

    China(mainland)

    Model:

    R305-9 R330-9 R290-9
    Part Number:
    31Q8-11141 31Q9-19140

    MOQ:

    1 PCS

    Payment term:

    T/T & Paypal

    Delivery time:

    Within 2 days after receiving the payment

    Packing:

    Standard exporting packing or as required


    List of spare parts


    Pos.Part NoQtyParts name
    *-2.31Q9-19140[1]SWING REDUCTION GEAR
    *-2.31Q9-19140AR[1]SWING REDUCTION GEAR
    1.XKAQ-00451[1]CASING
    2.XKAQ-00760[1]SHAFT-DRIVE
    3.XKAQ-00146[1]BEARING-ROLLER
    4.XKAQ-00149[1]SEAL-OIL
    5.XKAQ-00027[1]BEARING-ROLLER
    6.XKAQ-00467[1]CARRIER ASSY 2
    7.XKAQ-00468[1]CARRIER 2
    8.XKAQ-00469[4]GEAR-PLANET 2
    9.XKAQ-00470[4]PIN ASSY 2
    N10.XKAQ-00471[1]PIN 2
    N11.XKAQ-00472[1]BUSHING 2
    12.XKAQ-00435[8]WASHER-THRUST
    13.XKAQ-00050[4]PIN-SPRING
    14.XKAQ-00473[1]CARRIER ASSY 1
    15.XKAQ-00453[1]CARRIER 1
    16.XKAQ-00454[3]GEAR-PLANET 1
    17.XKAQ-00440[3]PIN ASSY 1
    N18.XKAQ-00441[3]PIN 1
    N19.XKAQ-00079[3]BUSHING 1
    20.XKAQ-00417[3]PLATE 1-SIDE
    21.XKAQ-00416[3]PLATE 2-SIDE
    22.XKAQ-00041[3]RING-STOP
    23.XKAQ-00048[3]PIN-SPRING
    24.XKAQ-00455[1]GEAR 2-SUN
    25.XKAQ-00456[1]GEAR 1-SUN
    26.XKAQ-00457[1]RING-GEAR
    27.XKAQ-00466[12]BOLT-SOCKET
    28.XKAQ-00626[1]COVER PLATE
    29.XKAQ-00064[8]BOLT-HEX
    30.XKAQ-00627[1]SPACER
    31.XKAQ-00628[1]RING-SPACER
    32.XKAQ-00447[1]PLATE 3-THRUST
    33.XKAQ-00629[1]GEAR-PINION
    34.XKAQ-00761[1]PLATE-LOCK
    35.XKAQ-00756[4]BOLT-HEX
    36.XKAQ-00049[1]PLUG
    37.XKAQ-00066[2]PLUG
    38.XKAQ-00072[2]PIN-KNOCK
    N39.XKAQ-00631[4]BUSHING 2
    40.XKAQ-00800[1]AIR BREATHER ASSY
    1.XKAQ-00451[1]CASING
    1.XKAQ-00996[1]CASING
    2.XKAQ-00760[1]SHAFT-DRIVE
    2.XKAQ-00997[1]SHAFT-DRIVE
    3.XKAQ-00146[1]BEARING-ROLLER
    4.XKAQ-00149[1]SEAL-OIL
    5.XKAQ-00027[1]BEARING-ROLLER
    6.XKAQ-00467[1]CARRIER ASSY 2
    7.XKAQ-00468[1]CARRIER 2
    8.XKAQ-00469[4]GEAR-PLANET 2
    9.XKAQ-00470[4]PIN ASSY 2
    N10.XKAQ-00471[1]PIN 2
    N11.XKAQ-00472[1]BUSHING 2
    12.XKAQ-00435[8]WASHER-THRUST
    13.XKAQ-00050[4]PIN-SPRING
    14.XKAQ-00473[1]CARRIER ASSY 1
    15.XKAQ-00453[1]CARRIER 1
    16.XKAQ-00454[3]GEAR-PLANET 1
    17.XKAQ-00440[3]PIN ASSY 1
    N18.XKAQ-00441[3]PIN 1
    N19.XKAQ-00079[3]BUSHING 1
    20.XKAQ-00417[3]PLATE 1-SIDE
    21.XKAQ-00416[3]PLATE 2-SIDE
    22.XKAQ-00041[3]RING-STOP
    23.XKAQ-00048[3]PIN-SPRING
    24.XKAQ-00455[1]GEAR 2-SUN
    25.XKAQ-00456[1]GEAR 1-SUN
    26.XKAQ-00457[1]RING-GEAR
    26.XKAQ-00998[1]GEAR-RING
    27.XKAQ-00466[12]BOLT-SOCKET
    28.XKAQ-00626[1]COVER PLATE
    29.XKAQ-00064[8]BOLT-HEX
    30.XKAQ-00627[1]SPACER
    30.XKAQ-00999[1]SPACER
    31.XKAQ-00628[1]RING-SPACER
    32.XKAQ-00447[1]PLATE 3-THRUST
    33.XKAQ-00629[1]GEAR-PINION
    33.XKAQ-01000[1]GEAR-PINION
    34.XKAQ-00757[1]PLATE-LOCK
    35.XKAQ-00756[4]BOLT-HEX
    36.XKAQ-00049[1]PLUG
    37.XKAQ-00066[2]PLUG
    38.XKAQ-00072[2]PIN-KNOCK
    38.XKAQ-01001[2]PIN-KNOCK
    39.XKAQ-00800[1]AIR BREATHER ASSY
    N40.XKAQ-00631[4]BUSHING 2
    N.@[AR]NOT SUPPLIED PARTS
