Excavator R210LC-7 hydraulic slew device 31N6-10180 excavator swing
gearbox
Appliion | Excavator |
Part name | Swing gearbox |
Material | Steel |
Model | R210LC-7 R215-7 R225-9 |
MOQ | 1PC |
Payment term | T/T&Paypal |
Delivery Time | Within 2 days after receiving the payment |
Packing | Standard shipping package |

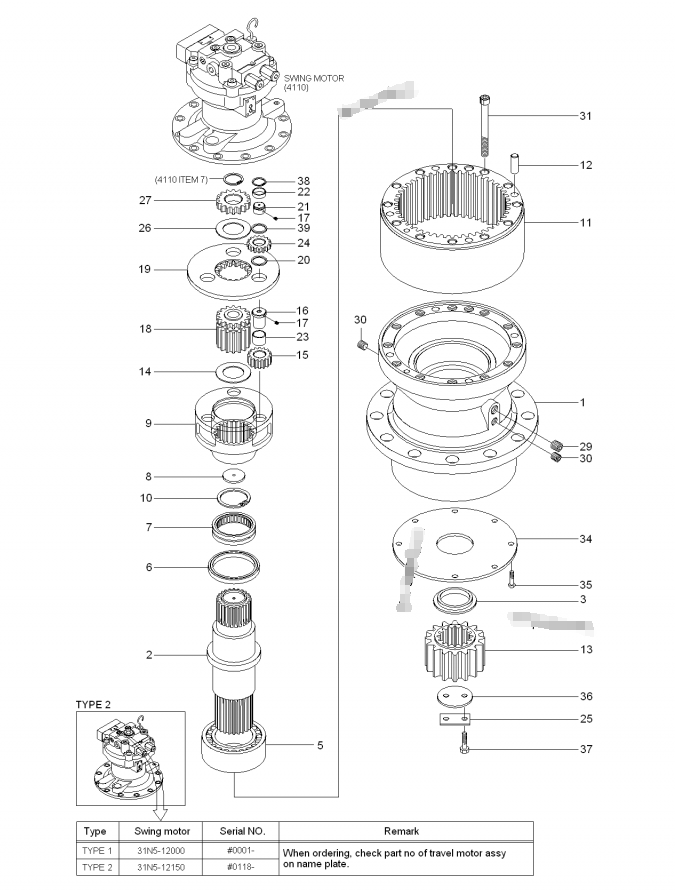

List of spare parts
| # | Part No | Part Name | Qty. |
|---|
| *-2 | 31N6-10180 | SWING REDUCTION GEAR | 1 |
| 1 | XKAQ-00301 | CASING | 1 |
| 2 | XKAQ-00331 | SHAFT-DRIVE | 1 |
| 3 | XKAQ-00018 | SPACER | 1 |
| 5 | XKAQ-00026 | BEARING-ROLLER | 1 |
| 6 | XKAQ-00032 | SEAL-OIL | 1 |
| 7 | XKAQ-00029 | BEARING-ROLLER | 1 |
| 8 | XKAQ-00076 | PLATE-THRUST | 1 |
| 9 | XKAQ-00075 | CARRIER-2 | 1 |
| 10 | XKAQ-00074 | RING-STOP | 1 |
| 11 | XKAQ-00073 | GEAR-RING | 1 |
| 12 | XKAQ-00072 | PIN-KNOCK | 4 |
| 13 | XKAQ-00014 | GEAR-PINION | 1 |
| 14 | XKAQ-00071 | WASHER-THRUST | 6 |
| 15 | XKAQ-00023 | GEAR-PLANET 2 | 3 |
| 16 | XKAQ-00070 | PIN & BUSHING | 3 |
| 17 | XKAQ-00048 | PIN-SPRING | 6 |
| 18 | XKAQ-00011 | GEAR-SUN 2 | 1 |
| 19 | XKAQ-00015 | CARRIER-1 | 1 |
| 20 | XKAQ-00057 | PLATE-SIDE 1 | 3 |
| 21 | XKAQ-00019 | PIN 1 | 3 |
| 22 | XKAQ-00030 | CAGE-NEEDLE | 3 |
| N23 | @ | FUEL INJECTION PIPE & NOZZLE | 3 |
| 24 | XKAQ-00025 | GEAR-PLANET 1 | 3 |
| 25 | XKAQ-00292 | WASHER-LOCK | 1 |
| 26 | XKAQ-00068 | PLATE-SIDE 3 | 1 |
| 27 | XKAQ-00010 | GEAR-SUN 1 | 1 |
| 29 | XKAQ-00049 | PLUG-PRESSURE | 1 |
| 30 | XKAQ-00066 | PLUG | 2 |
| 31 | XKAQ-00065 | BOLT-SOCKET | 12 |
| 34 | XKAQ-00031 | PLATE-COVER | 1 |
| 35 | XKAQ-00064 | BOLT-HEX | 8 |
| 36 | XKAQ-00296 | PLATE-LOCK | 1 |
| 37 | XKAQ-00042 | BOLT-HEX | 2 |
| 38 | XKAQ-00041 | RING-STOP | 3 |
| 39 | XKAQ-00040 | PLATE-SIDE 2 | 3 |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE
SEE 4100 | 1 |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Company Information
Guangzhou Belparts Engineering Machinery Limited was founded in
September 2013. Now, we have one shop, one warehouse, and one
office, as well as a professional team for purchasing, selling,
packing, shipping, and after-sale service.
Our main products are Excavator Hydraulic spare parts, Hydraulic
main pump, Swing motor, Travel motor, Final drive, Swing motor
ass'y, Swing gearbox, Travel Gearbox, and other hydraulic items
with genuine and aftermarket quality. Until now, our products enjoy
a high reputation all over the world and have been exported to more
than 125 countries and regions, spreading all over the Middle East,
Southeast Asia, Africa, North America, South America, Europe and
Oceania with its own brand "Belparts" are widely acclaimed by
foreign customers.
Factory
Exhibition
Packing&Shipping
FAQ
1.If I only know the excavator model, but can not offer parts No.,
what should I do?
If possible, you can send us pictures of old products, nameplates,s
or the size for reference.
2.What is the warranty of the parts after I purchased them?
The warranty is 6/12 Months based on the item details.
3.How can I pay for the order?
We can receive payment through T/T, Paypal(for a small amount),
trade assurance.
4.When will get the items after I place an order?
Once your payment is confirmed, we will arrange the goods within 24
hours; if not in stock, we will inform you before placing the
order.
5.How can I do if there is something wrong with the items?
First of all, I have confidence in the quality of our products, if
you really found something wrong, pls provide pictures for us and
we will check. After it is confirmed, pls return it to us, we will
offer the correct item.
6.What are your main products?
We are specialized in excavator spare parts, such as travel motor
gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts, hydraulic
pump assy/parts, and gear parts. If you need other excavator parts,
we also can supply them as your requirements.
