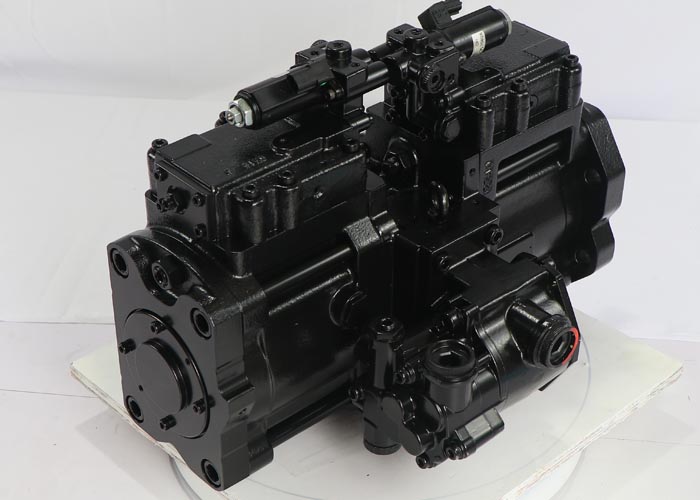

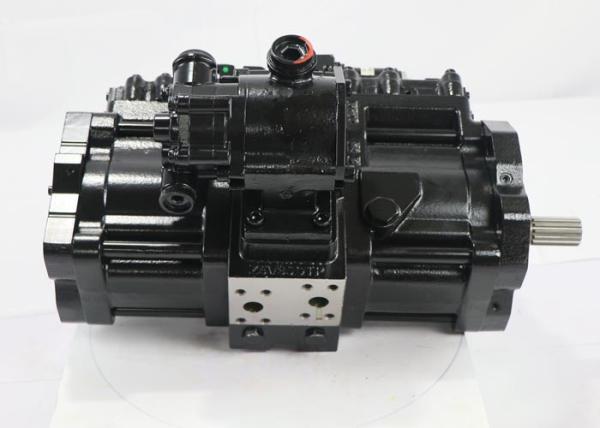

Excavator K3V63DTP YX10V00003F1 hydraulic pump parts SK135
hydraulic main pump
Product Description
| Model NO. | K3V63DTP YX10V00003F1 |
| Description | Direct Factory Manufacture Hydraulic pump for SK135 Excavator |
| Brand name | Belparts |
| Color | As the photo |
| Appliion | excavator |
| Condition | 100% brand new |
| Warranty | 1 Year |
| Packing | standard packing(fiberboad carton/wooden case)or as customzied |
| Payment term | T/T, PayPal,Alipay..etc. |
| Shipment | 1~7days after getting the payment,but not for the customzied item |
| Remark | Any more detailed information about the product,pls donot hestate
to inquiry with us.Also welcime to visitour company or factory if
you have free time.We will be appriciate for that. Thank you. |

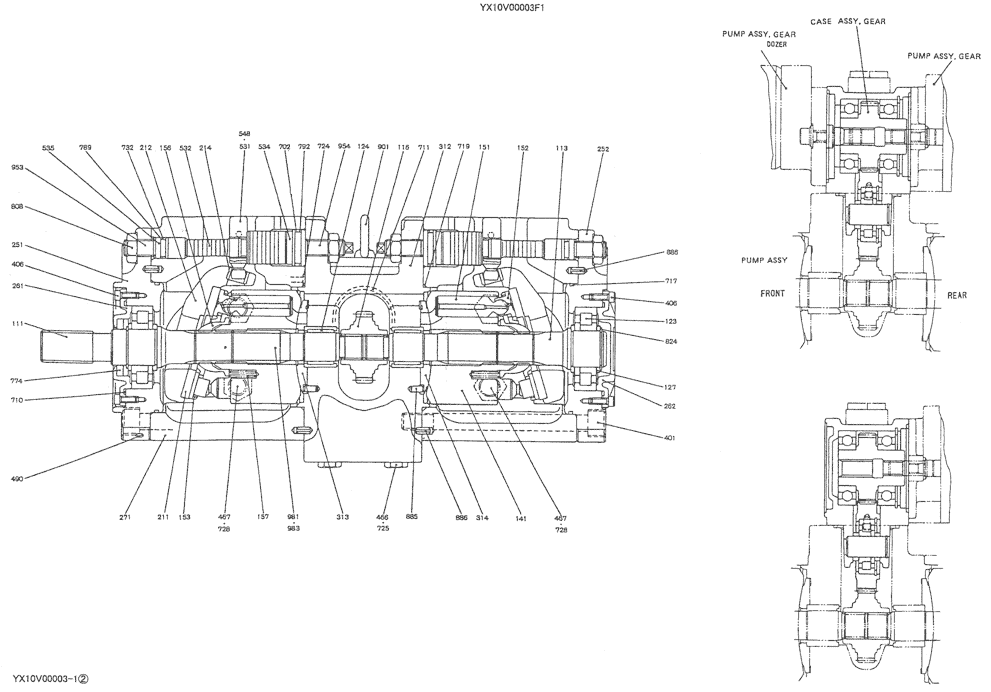

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX10V00003F1 | [1] | HYDRAULIC PUMP | KOB ASSY (Not serviced - Order next higher assembly pn) |
| 111. | YX10V00003S111 | [1] | SHAFT | KOB (FRONT) |
| 113. | YX10V00003S113 | [1] | SHAFT | KOB (REAR) |
| 116. | YX10V00003S116 | [1] | GEAR | KOB |
| 123. | YX10V00003S123 | [2] | ROLLER BEARING | KOB |
| 124. | YW10V00005S124 | [2] | BEARING | KOB NEEDLE |
| 127. | YW10V00003S127 | [4] | SPACER | KOB |
| 141. | NSS | [2] | NOT SOLD SEPARAT | CON BLOCK, CYLINDER |
| 151. | NSS | [18] | NOT SOLD SEPARAT | CON PISTON |
| 152. | NSS | [18] | NOT SOLD SEPARAT | CON SHOE |
| 153. | 2437U188S153 | [2] | PLATE | KOB |
| 156. | YW10V00005S156 | [2] | BUSHING | KOB |
| 157. | 2437U188S157 | [18] | SPRING | KOB |
| 211. | 2437U188S211 | [2] | PLATE | KOB SHOE |
| 212. | NSS | [2] | NOT SOLD SEPARAT | CON PLATE |
| 214. | NSS | [2] | NOT SOLD SEPARAT | CON BUSHING |
| 251. | 2437U188S251 | [1] | PLATE | KOB |
| 252. | YX10V00003S252 | [1] | SUPPORT | KOB |
| 261. | 2437U188S261 | [1] | COVER | KOB SEAL |
| 262. | YX10V00003S262 | [1] | COVER | KOB SEAL |
| 271. | 2437U188S271 | [2] | CASING | KOB CASE |
| 312. | YX10V00003S312 | [1] | BLOCK | KOB VALVE |
| 313. | NSS | [1] | NOT SOLD SEPARAT | CON PLATE, VALVE |
| 314. | NSS | [1] | NOT SOLD SEPARAT | CON PLATE. VALVE |
| 401. | 2437U188S401 | [8] | CAPSCREW | KOB SCREW |
| 406. | ZS23C06016 | [8] | SCREW,Hex Socket Head, M6 x 16mm | KOB M06x1.0x16mm Superseded by part number: ZS28C06016 |
| 466. | 2441U667S466 | [2] | PLUG | KOB 1/4" PF |
| 467. | 2441U436S468 | [4] | PLUG | KOB |
| 490. | 2441U722S490 | [15] | PLUG | KOB 1/16" NPTF |
| 531. | NSS | [2] | NOT SOLD SEPARAT | CON PIN |
| 532. | YX10V00003S532 | [2] | PISTON | KOB SERVO |
| 534. | YX10V00003S534 | [2] | STOP | KOB |
| 535. | 2437U188S535 | [2] | STOP | KOB |
| 548. | NSS | [2] | NOT SOLD SEPARAT | CON PIN FEED BACK |
| 702. | ZD12G03000 | [2] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB ID 29.4 ± 0.29 x OD 35mm |
| 710. | ZD12G08500 | [2] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOB ID 84.40 ± 0.73 x OD 90mm |
| 711. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOB O-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 717. | ZD12G12000 | [2] | O-RING,3.1mm Thk x 119.4mm ID, 90 Duro | KOB O-Ring -- ID 119.40 ± 0.98 x OD 125mm |
| 719. | ZD12G11500 | [2] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOB ID 114.40 ± 0.94 x OD 120mm |
| 724. | ZD12P00800 | [18] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 725. | ZD12P01100 | [2] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 728. | ZD12P01800 | [4] | O-RING | KOB ID 17.8mm x OD 20.2mm |
| 732. | ZD12P01600 | [2] | O-RING | KOB ID 15.80 ± 0.20 x OD 20mm |
| 774. | YX10V00003S774 | [1] | OIL SEAL | KOB Superseded by part number: YX10V00003S020 |
| 789. | ZD85P01600 | [2] | RING | KOB BACK UP |
| 792. | ZD85G03000 | [2] | BACK-UP RING | KOB ID 30 x OD 35 x Th 1.25mm |
| 808. | ZN12C16010 | [4] | NUT | KOB |
| 824. | ZR16X03500 | [2] | RING | KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm |
| 885. | 2441U436S886 | [2] | PIN | KOB |
| 886. | ZP26D06014 | [4] | PIN | KOB Roll -- OD 06 x 14mm Long |
| 901. | ZS91C01000 | [2] | BOLT | KOB Eye -- M10x1.50x18mm |
| 953. | 2437U188S953 | [2] | CAP,M10 x 20mm | KOB SETSCREW |
| 954. | 2437U188S954 | [2] | SCREW | KOB SETSCREW |
| 981. | YX10V00003S981 | [1] | NAME PLATE | |
| 983. | 2437U407S983 | [2] | RIVET | KOB PIN |
| . . | 2437U188S530 | [2] | REPAIR KIT | KOB CONSISTS OF REF 531X1. 548X1 |
| . . | YW10V00003S011 | [2] | PISTON ASSY | KOB CONSISTS OF REF 151X9, 152X9 |
| . . | YX10V00003R200 | [1] | REPAIR KIT | KOB CONSISTS OF REF 141X1, 313X1 |
| . . | YX10V00003R300 | [1] | REPAIR KIT | KOB CONSISTS OF REF 141X1, 314X1 |
| . . | YX10V00003R400 | [2] | REPAIR KIT | KOB CONSISTS OF REF 212X1, 214X1 |
