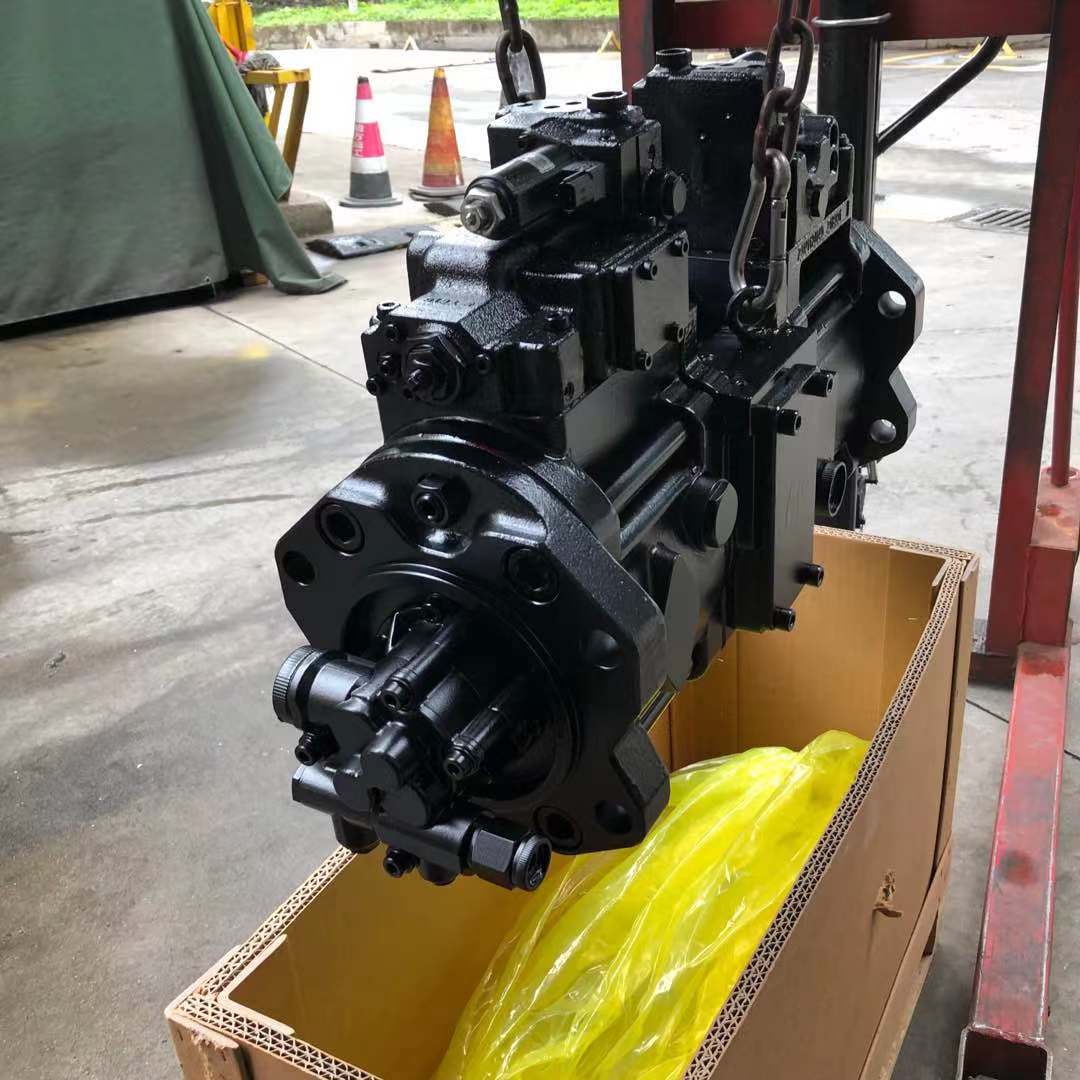

Excavator K5V140DTP 2437U470F1 hydraulic pump parts SK330-8 SK350-8
main pump
Product Description
| Model NO. | K5V140DTP-YT6K-17T |
| Description | Direct Factory Manufacture Hydraulic pump for SK330-8 SK350-8
Excavator |
| Brand name | Belparts |
| Color | As the photo |
| Appliion | excavator |
| Condition | 100% brand new |
| Warranty | 1 Year |
| Packing | standard packing(fiberboad carton/wooden case)or as customzied |
| Payment term | T/T, PayPal,Alipay..etc. |
| Shipment | 1~7days after getting the payment,but not for the customzied item |
| Remark | Any more detailed information about the product,pls donot hestate
to inquiry with us.Also welcime to visitour company or factory if
you have free time.We will be appriciate for that. Thank you. |
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2437U470F1 | [1] | HYDRAULIC PUMP | KOB ASSY |
| . . | 2437U470F2 | [1] | PUMP ASSY | |
| 11. | 2437U470S11 | [2] | PISTON | KOB Consists of items 151, & 152 |
| 12. | NSS | [2] | NOT SOLD SEPARAT | CON |
| 13. | 2437U219S01 | [1] | CYLINDER | KOB Consists of items 012, & 313 Superseded by part number:
LS10V00006R200 |
| 14. | 2437U219S02 | [1] | CYLINDER | KOB Consists of items012, & 314 Superseded by part number:
LS10V00006R300 |
| 30. | 2437U214S30 | [2] | PLATE | KOB Consists of items 012, & 214 |
| 111. | 2437U214S111 | [1] | SHAFT | KOB |
| 113. | 2437U214S113 | [1] | SHAFT | KOB |
| 114. | 2437U214S114 | [1] | COUPLING | KOB |
| 123. | 2437U214S123 | [2] | BEARING | KOB Superseded by part number: 2441U474S123 |
| 124. | 2437U214S124 | [2] | NEEDLE BEARING | KOB Superseded by part number: 24100U992S2 |
| 127. | 2437U219S127 | [2] | SPACER | KOB |
| 151. | NSS | [18] | NOT SOLD SEPARAT | CON |
| 152. | NSS | [18] | NOT SOLD SEPARAT | CON |
| 153. | 2437U214S153 | [2] | PLATE | KOB |
| 156. | 2437U214S156 | [2] | BUSHING | KOB |
| 157. | 2437U219S157 | [18] | SPRING | KOB |
| 158. | 2437U219S158 | [2] | SPACER | KOB |
| 211. | 2441U564S124 | [2] | PLATE | KOB |
| 212. | NSS | [2] | NOT SOLD SEPARAT | CON |
| 214. | NSS | [2] | NOT SOLD SEPARAT | CON |
| 251. | 2437U219S251 | [2] | COVER | KOB |
| 261. | 2437U214S261 | [1] | CUP COVER | KOB (F) |
| 263. | 2437U214S263 | [1] | COVER | KOB (R) |
| 271. | 2437U214S271 | [2] | HOUSING | KOB |
| 312. | 2437U214S312 | [1] | BLOCK | KOB |
| NSS. | NSS | [1] | NOT SOLD SEPARAT | CON (R) |
| 325. | 2437U420S325 | [1] | CASE | KOB |
| 401. | 2437U214S401 | [8] | SCREW | KOB |
| 406. | ZS23C08020 | [8] | SCREW,Hex Socket Head, M8 x 20mm | KOB M08x1.25x20mm |
| 407. | ZS23C06065 | [3] | SCREW,Hex Socket Head, M6 x 65mm | KOB M06x1.0x65mm |
| 466. | 2441U667S466 | [3] | PLUG | KOB 1/4" PF |
| 468. | 2441U436S469 | [4] | PLUG | KOB |
| 490. | 2441U722S490 | [32] | PLUG | KOB 1/16" NPTF |
| 530. | 2437U214S530 | [2] | PIN | KOB REPAIR KIT Consists of items 531, & 548 |
| 531. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 532. | 2437U214S532 | [2] | PISTON | KOB |
| 534. | 2437U214S534 | [2] | STOP | KOB |
| 535. | 2437U214S535 | [2] | STOP | KOB |
| 541. | 2437U471S541 | [4] | SEAT/SLOT | KOB |
| 543. | 2437U471S543 | [2] | STOP | KOB |
| 544. | 2437U471S544 | [2] | STOP | KOB |
| 545. | 2436U969S964 | [4] | BALL | KOB |
| 548. | NSS | [2] | NOT SOLD SEPARAT | CON |
| 702. | 2437U214S702 | [2] | O-RING | KOB |
| 710. | ZD12G10500 | [2] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOB ID 14.80 ± 0.20 x OD 19mm |
| 717. | 2441U741S472 | [2] | O-RING | KOB |
| 719. | 2437U219S719 | [2] | O-RING | KOB |
| 724. | ZD12P00800 | [16] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 725. | ZD12P01100 | [8] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 726. | ZD12P01400 | [1] | O-RING | KOB ID 13.80 ± 0.19 x OD 18mm |
| 728. | ZD12P02400 | [4] | O-RING | KOB ID 23.70 ± 0.24 x OD 30mm |
| 732. | 2437U214S732 | [2] | O-RING | KOB |
| 774. | 2437U214S774 | [1] | GASKET | KOB Superseded by part number: LC10V00010S019 |
| 789. | 2437U471S789 | [2] | BACK-UP RING | KOB |
| 792. | 2437U471S792 | [2] | BACK-UP RING | KOB |
| 808. | ZN11C20012 | [4] | NUT | KOB M20x2.50mm |
| 824. | ZR16X04500 | [2] | RING | KOB Retaining -- ID 45 x OD 58 x Th 1.8mm |
| 885. | 2441U474S888 | [2] | PIN | KOB |
| 886. | ZP26D06014 | [4] | PIN | KOB Roll -- OD 06 x 14mm Long |
| 901. | 2441U413S902 | [2] | BOLT | KOB |
| 953. | 2437U219S953 | [2] | SCREW | KOB |
| 954. | 2437U214S954 | [2] | SET OF SCREWS | KOB |
| 981. | 2437U407S981 | [1] | LABEL | KOB NAME PLATE |
| 983. | 2437U407S983 | [2] | RIVET | KOB |
| 100. | 2437U470R100 | [1] | SEAL KIT | KOB Consists of items 702, 710, 717, 719, 724-726, 732, 774, 789, & 792 |
