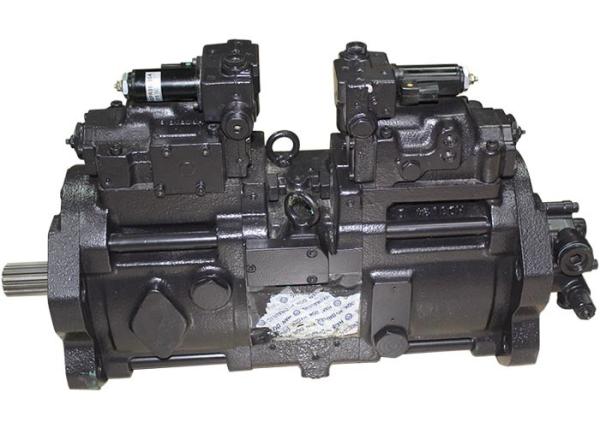

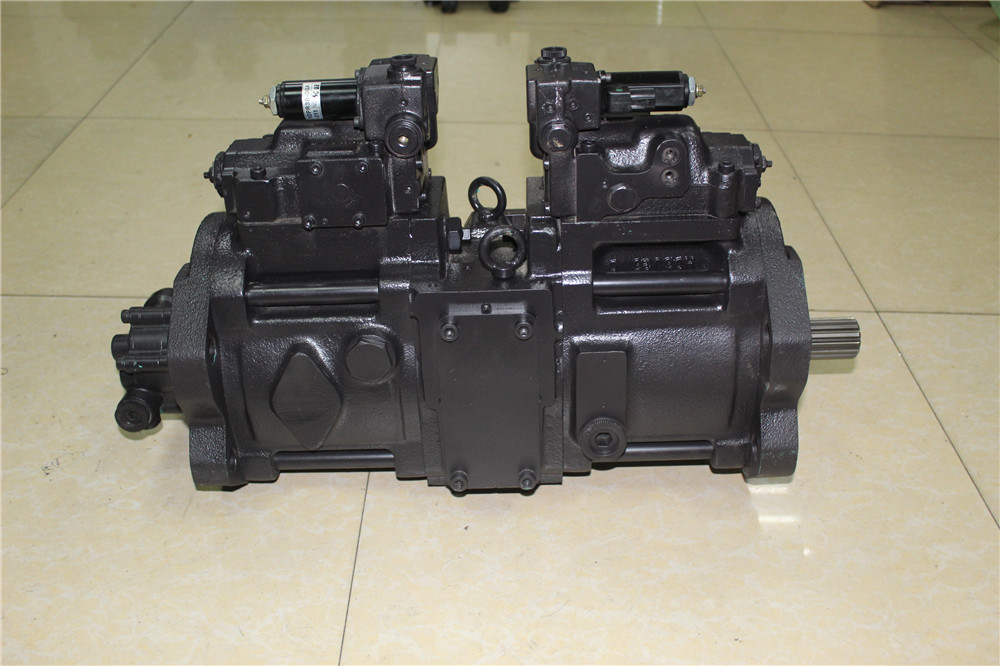

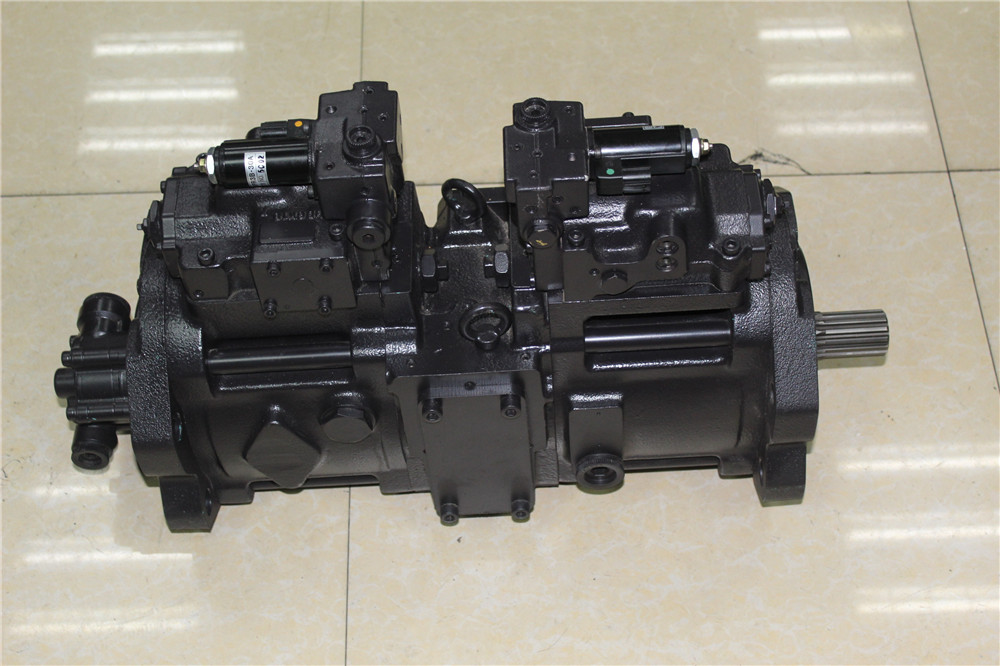

Excavator YN10V00013F1 K3V112DTP oil main pump SK200-6E SK230-6E
hydraulic pump
| Model NO. | K3V112DTP-9TEL-14T |
| Description | Hydraulic pump for SK200-6E SK230-6E Excavator |
| Brand name | Belparts |
| Color | As the photo |
| Appliion | excavator |
| Condition | 100% brand new |
| Warranty | 1 Year |
| Packing | standard packing(fiberboad carton/wooden case)or as customzied |
| Payment term | T/T,PayPal,Alipay..etc. |
| Shipment | 7days after getting the payment,but not for the customzied item |
| Remark | Any more detailed information about the product,pls donot hestate
to inquiry with us.Also welcime to visitour company or factory if
you have free time.We will be appriciate for that. Thank you. |
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN10V00013F1 | [1] | PUMP | KOB ASSY Superseded by part number: YN10V00007F1 |
| 111. | 2437U420S111 | [1] | SHAFT | KOB (F) |
| 113. | YN10V00013S113 | [1] | SHAFT | KOB (R) |
| 114. | 2437U213S114 | [1] | COUPLING | KOB |
| 123. | 2437U213S123 | [2] | BEARING | KOB Superseded by part number: 2441U436S123 |
| 124. | 2437U213S124 | [2] | BEARING | KOB Superseded by part number: 6025Z12D1M |
| 127. | 2441U723S127 | [4] | SPACER | KOB |
| 141. | NSS | [2] | NOT SOLD SEPARAT | CON BLOCK,CYLINDER |
| 151. | NSS | [18] | NOT SOLD SEPARAT | CON PISTON |
| 152. | NSS | [18] | NOT SOLD SEPARAT | CON SHOE |
| 153. | 2437U213S153 | [2] | PLATE | KOB Superseded by part number: LC10V00010S153 |
| 156. | YN10V00005S156 | [2] | BUSHING | KOB |
| 157. | 2437U213S157 | [18] | SPRING | KOB |
| 211. | 2441U242S211 | [2] | PLATE | KOB SHOE |
| 212. | NSS | [2] | NOT SOLD SEPARAT | CON PLATE |
| 214. | NSS | [2] | NOT SOLD SEPARAT | CON BUSHING |
| 251. | 2437U213S251 | [2] | PLATE | KOB |
| 261. | 2437U420S261 | [1] | COVER | KOB SEAL |
| 271. | 2437U213S271 | [2] | CASE | KOB CASE |
| 312. | 2437U213S312 | [1] | COUPLING BLOCK | KOB VALVE |
| 313. | NSS | [1] | NOT SOLD SEPARAT | CON PLATE,VALVE |
| 314. | NSS | [1] | NOT SOLD SEPARAT | CON PLATE,VALVE |
| 325. | YN10V00013S325 | [1] | COVER | KOB |
| 401. | 2437U213S401 | [8] | SCREW | KOB |
| 406. | ZS23C08020 | [4] | SCREW,Hex Socket Head, M8 x 20mm | KOB M08x1.25x20mm |
| 407. | ZS23C06030 | [3] | SCREW,Hex Socket Head, M6 x 30mm | KOB M06x1.0x30mm |
| 466. | 2441U667S466 | [2] | PLUG | KOB 1/4" PF |
| 468. | 2441U436S469 | [4] | PLUG | KOB |
| 490. | 2441U722S490 | [20] | PLUG | KOB 1/16" NPTF |
| 531. | NSS | [2] | NOT SOLD SEPARAT | CON PIN |
| 532. | 2437U213S532 | [2] | PISTON | KOB |
| 534. | 2437U213S534 | [2] | STOP | KOB |
| 535. | 2437U213S535 | [2] | STOP | KOB |
| 546. | YN10V00013S546 | [2] | SPACER | KOB Superseded by part number: YN10V00043S546 |
| 548. | NSS | [2] | NOT SOLD SEPARAT | CON PIN, FEEDBACK |
| 702. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB ID 34.40 ± 0.33 x OD 40mm |
| 710. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOB O-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 717. | ZD12G14500 | [4] | O-RING,144.40mm ID x 150.60mm OD x 3.10mm | KOB ID 144.40 ± 1.16 x OD 150mm |
| 724. | ZD12P00800 | [16] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 725. | ZD12P01100 | [7] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 728. | ZD12P02400 | [4] | O-RING | KOB ID 23.70 ± 0.24 x OD 30mm |
| 732. | ZD12P01800 | [2] | O-RING | KOB ID 17.8mm x OD 20.2mm |
| 774. | 2441U474S774 | [1] | OIL SEAL | KOB |
| 789. | ZD85P01800 | [2] | RING | KOB Back-Up -- ID 18 x OD 22 x Th 1.25mm |
| 792. | ZD85G03500 | [2] | RING | KOB Back-Up -- ID 35 x OD 40 x Th 1.25mm |
| 806. | ZN12C16010 | [2] | NUT | KOB |
| 808. | ZN17C20012 | [2] | NUT | KOB Superseded by part number: ZN18C20012 |
| 824. | ZR16X04000 | [2] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 885. | 2441U723S885 | [2] | PIN | KOB |
| 886. | ZP26D06014 | [4] | PIN | KOB Roll -- OD 06 x 14mm Long |
| 901. | ZS91C01000 | [2] | BOLT | KOB Eye -- M10x1.50x18mm |
| 953. | 2437U188S953 | [2] | CAP,M10 x 20mm | KOB |
| 954. | 2437U213S954 | [2] | SCREW | KOB SCREW |
| 981. | 2437U407S981 | [1] | LABEL | KOB NAME PLATE |
| 983. | 2437U407S983 | [2] | RIVET | KOB |
| . . | YN10V00003S011 | [2] | PISTON ASSY | KOB REPAIR KIT CONSISTS OF ITEM,151X9,152X9 |
| . . | 2437U213S13 | [1] | REPAIR KIT | KOB CONSISTS OF ITEM REPAIR KIT,141X1,313X1 |
| . . | 2437U213S14 | [1] | REPAIR KIT | KOB CONSISTS OF ITEM REPAIR KIT,141X1,314X1 |
| . . | 2437U213S30 | [2] | REPAIR KIT | KOB CONSISTS OF ITEM REPAIR KIT CONSISTS OF ITEM,212X1,214X1 |
| . . | 2437U213S530 | [2] | REPAIR KIT | KOB CONSISTS OF ITEM,531X1,548X1 |
