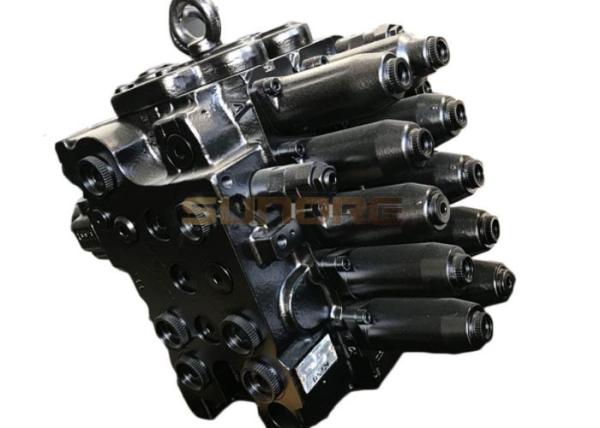

    KMX15YD Control Valve Assy for SK350-8 Excavator

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : KMX15YD B44031D
    Price : Negotiated price
    Payment Terms : T/T, trade assurance,PayPal
    Supply Ability : 1000PCS
    Delivery Time : 1~7 days
    • Product Details
    • Company Profile

    KMX15YD Control Valve Assy for SK350-8 Excavator

    Excavator KMX15YD B44031D control valve SK350-8 LC30V00028F4 MCV


    Product Description


    Appliion
    Excavator
    Part name
    MCV
    Model
    SK350-8
    Part number
    KMX15YD
    Warranty
    Negotiable
    Payment term
    T/T, Western union, paypal, trade assurance or as required
    After sales service
    Online

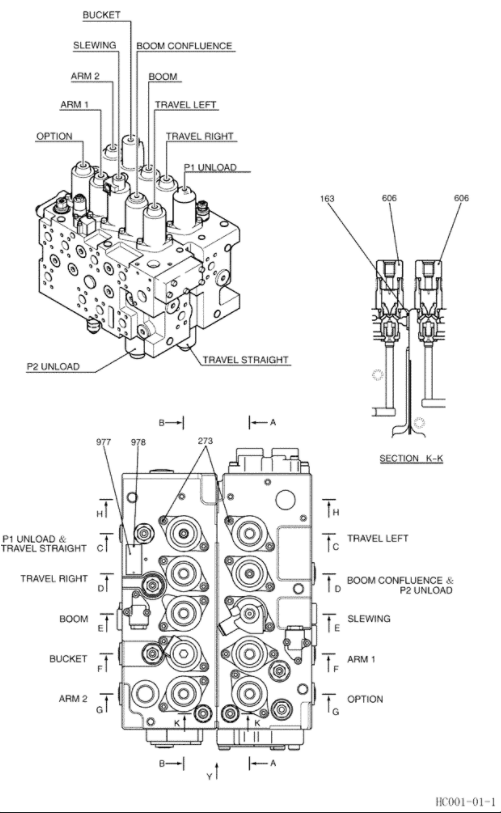

    Pos.Part NoQtyParts nameComments
    . .LC30V00028F1[1]CONTROL VALVEKOB Page 1 of 5 Superseded by part number: LC30V00028F5
    101.NSS[1]NOT SOLD SEPARATCON CASE
    102.NSS[1]NOT SOLD SEPARATCON CASE
    154.YN30V00001S154[3]PLUGKOB
    155.YW30V00001S155[2]PLUGKOB 1/2"
    159.NSS[1]NOT SOLD SEPARATCON PLUG
    160.NSS[5]NOT SOLD SEPARATCON PLUG
    161.ZD12P03800[7]O-RINGKOB ID 37.70 ± 0.37 x OD 44.7mm
    162.ZD12G03000[15]O-RING,29.40mm ID x 35.60mm OD x 3.10mmKOB ID 29.4 ± 0.29 x OD 35mm
    163.ZD12P01500[11]O-RINGKOB ID 14.80 ± 0.20 x OD 19mm
    164.ZD12P02400[19]O-RINGKOB ID 23.70 ± 0.24 x OD 30mm
    169.ZD12P01800[2]O-RINGKOB ID 17.8mm x OD 20.2mm
    201.YN30V00101S201[5]GUARDSM COVER
    202.YN30V00101S202[4]GUARDSM COVER
    203.YN30V00101S203[1]GUARDSM COVER
    204.YN30V00101S204[1]GUARDSM COVER
    205.YN30V00001S205[6]COVERKOB
    206.YN30V00101S206[1]GUARDSM COVER
    207.YN30V00101S207[1]GUARDSM COVER Superseded by part number: YN30V00101S094
    208.LC30V00028S208[1]COVERKOB COVER
    209.YN30V00101S209[1]GUARDSM COVER
    211.YN30V00119F1[2]VALVEKOB ASSY, LOCK
    212.YN30V00079S212[1]PLATEKOB
    213.YN30V00101S213[1]PLATEKOB
    216.YN30V00101S216[1]PISTONSM
    261.ZD12G05000[12]O-RING,49.40mm ID x 55.60mm OD x 3.10mmKOB ID 49.40 ± 0.45 x OD 55mm
    264.ZD12G04000[10]O-RING,39.40mm ID x 45.60mm OD x 3.10mmKOB ID 39.40 ± 0.37 x OD 45mm
    266.ZD12P00700[5]O-RING,1.6mm Thk x 6.8mm ID, 90 DuroKOB O-Ring -- ID 06.80 ± 0.16 x OD 10mm
    273.ZS23C08025[40]SCREW,Hex Socket Head, M8 x 25mmKOB M08x1.25x25mm
    274.ZS23C12025[4]CAPSCREW,Hex Socket Head, M12 x 52mmKOB SCREW M12x1.75x25mm
    275.ZS23C12035[4]SCREW,Hex Socket Head, M12 x 35mmKOB M12x1.75x35mm
    278.ZS23C08035[5]SCREW,Hex Socket Head, M8 x 35mmKOB M08x1.25x35mm
    301.LC30V00028S301[1]SPOOLKOB SPOOL ASSY Superseded by part number: LC30V00028R100
    302.LC30V00028S302[1]SPOOLKOB SPOOL Superseded by part number: LC30V00028R110
    303.LC30V00028S303[1]SPOOLKOB SPOOL Superseded by part number: LC30V00028R120
    304.LC30V00028S304[1]SPOOLKOB SPOOL Superseded by part number: LC30V00028R130
    305.YN30V00101S305[1]SPOOLSM Superseded by part number: YN30V00101R140
    306.YN30V00101S306[2]REPAIR KITKOB SPOOL Superseded by part number: YN30V00101R150
    307.LC30V00028S307[1]REPAIR KITKOB SPOOL Superseded by part number: LC30V00028R160
    308.LC30V00028S308[1]SPOOLKOB SPOOL ASSY Superseded by part number: YN30V00101S201, LC30V00034R220
    309.YN30V00101S309[1]SPOOLSM Superseded by part number: YN30V00101R190
    310.YN30V00101S310[1]SPOOLSM Superseded by part number: YN30V00101R200
    311.YN30V00101S311[1]SPOOLSM Superseded by part number: YN30V00101R210
    321.YN30V00079S321[5]SPRINGKOB
    322.YN30V00079S322[4]SPRINGKOB
    323.2436U1165S371[3]SPRINGKOB
    324.2436U1165S372[3]SPRINGKOB
    325.YN30V00079S323[1]SPRINGKOB
    326.YN30V00101S326[1]SPRINGSM
    327.YN30V00101S327[3]SPRINGSM
    328.YN30V00101S328[1]SPRINGSM
    329.YN30V00101S329[3]SPRINGSM
    331.2436U1443S332[24]SPRING SEATKOB
    333.2436U1165S336[12]BOLTKOB
    336.2436U1165S335[10]STOPKOB
    339.YN30V00001S339[1]STOPKOB
    340.YN30V00101S340[1]CLIPSM STOPPER
    511.YN30V00101S341[11]HYDRAULIC VALVESM POPPET
    512.YW30V00001S513[2]POPPETKOB
    514.YN30V00101S514[2]HYDRAULIC VALVESM POPPET
    515.2436U1231S513[1]POPPETKOB
    517.YN30V00101S517[1]HYDRAULIC VALVESM POPPET
    518.YN30V00101S518[1]HYDRAULIC VALVESM POPPET
    521.2436U1165S521[11]SPRINGKOB
    522.YN30V00101S522[2]SPRINGSM
    523.YN30V00089S523[1]SPRINGKOB
    524.YN30V00001S524[2]SPRINGKOB
    527.YN30V00101S527[1]SPRINGSM
    528.YN30V00101S528[1]SPRINGSM
    551.YN30V00001S551[12]PLUGKOB
    552.YW30V00001S556[2]PLUGKOB
    556.YN30V00001S556[3]PLUGKOB
    559.LC30V00028S559[1]PLUGKOB
    560.LC30V00028S560[1]O-RINGKOB
    562.ZD12P02000[2]O-RING,2.4mm Thk x 19.8mm ID, 90 DuroKOB ID 19.80 ± 0.22 x OD 24mm
    601.LC22V00011F1[1]HYDRAULIC VALVESM VALVE ASSY,MAIN RELIEF SEE(HC010)
    602.YN22V00002F1[3]VALVEKOB Overload SEE (HC015)
    603.YN22V00002F9[3]VALVEKOB SEE (HC015)
    604.YN30V01062P1[2]PLUGSM ASSY
    606.YN30V00120F1[2]VALVEKOB ASSY, BYPASS, SEE (HC030) Superseded by part number: YN30V00120F2
    973.ZS23C14160[8]SCREW,Hex Socket Head, M14 x 160mmKOB Screw -- M14x2.0x160mm
    974.ZS23C14140[2]SCREW,Hex Socket Head, M14 x 140mmKOB M14x2.0x140mm
    977.NSS[1]NOT SOLD SEPARATCON NAME PLATE
    978.NSS[2]NOT SOLD SEPARATCON PIN
    K.LC30V00028R100[1]REPAIR KITKOB CONSISTS OF ITEM 301X1, 321X1, 322X1, 331X2, 333X1, 336X1
    K.LC30V00028R110[1]REPAIR KITKOB CONSISTS OF ITEM 302X1, 321X1, 322X1, 331X2, 333X1, 336X1
    K.LC30V00028R120[1]REPAIR KITKOB CONSISTS OF ITEM 303X1, 321X1, 322X1, 331X2, 333X1, 336X1
    K.LC30V00028R130[1]REPAIR KITKOB CONSISTS OF ITEM 304X1, 321X1, 322X1, 331X2, 333X1, 336X1
    K.YN30V00101R140[1]REPAIR KITKOB CONSISTS OF ITEM 305X1, 325X1, 326X1, 331X2, 333X1, 339X1
    K.YN30V00101R150[1]REPAIR KITKOB CONSISTS OF ITEM 306X1, 323X1, 324X1, 331X2, 333X1, 336X1
    K.LC30V00028R170[1]REPAIR KITKOB CONSISTS OF ITEM 307X1, 327X1, 329X1, 331X2, 333X1, 336X1 Superseded by part number: YN30V00101S201, LC30V00034R220
    K.LC30V00028R180[1]REPAIR KITKOB CONSISTS OF ITEM 308X1, 321X1, 328X1, 331X2, 333X1, 340X1
    K.YN30V00101R190[1]REPAIR KITKOB CONSISTS OF ITEM 309X1, 327X1, 329X1, 331X2, 333X1, 336X1
    K.YN30V00101R200[1]REPAIR KITKOB CONSISTS OF ITEM 310X1, 327X1, 329X1, 331X2, 333X1, 336X1
    K.YN30V00101R210[1]REPAIR KITKOB CONSISTS OF ITEM 311X1, 323X1, 324X1, 331X2, 333X1, 336X1
