Brand Name : | Belparts |
Model Number : | EX120-2 |
Price : | Negotiable Price |
Payment Terms : | T/T, Paypal and Trade Assurance |
Supply Ability : | 1000pcs |
Delivery Time : | 1-7 days |

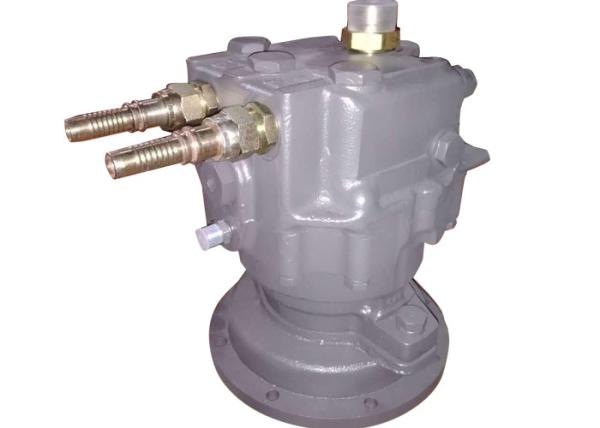

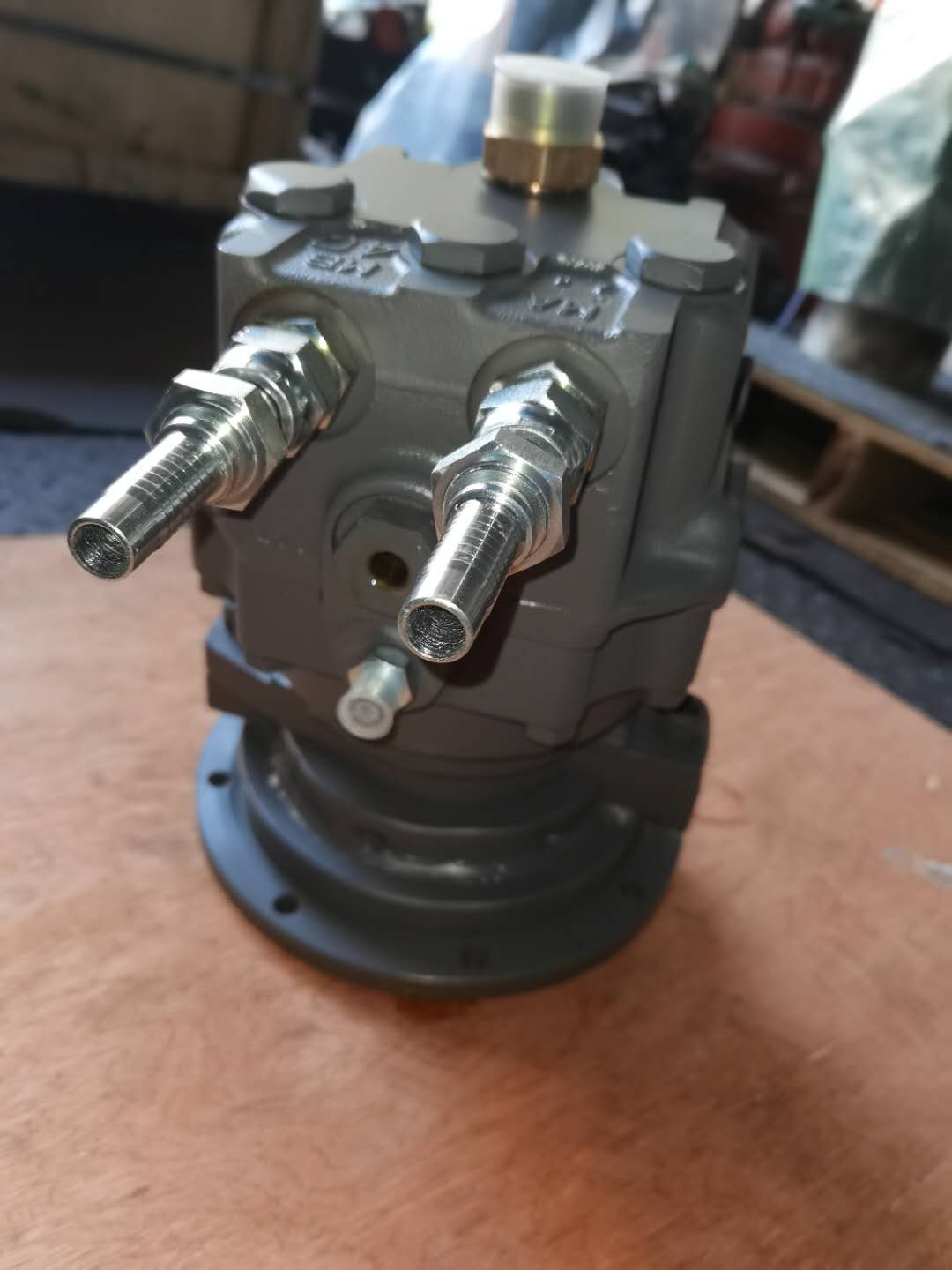

Excavator EX120-2 swing motor assy 4241171 excavator parts swing motor
Product Description
Appliion | Excavator |
Part name | Belparts swing motor |
Material | Steel |
Model | EX120-2 |
MOQ | 1PC |
Payment term | T/T, Paypal, Trade assurance, or as required |
Delivery | 2 days after the payment received |
Shipment | by sea, by air, by express, or as required |
List of spare parts
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
00. | 2028036 | [1] | SHAFT;PROP. | |
01. | 4244693 | [1] | SLEEVE | |
04. | A811100 | [1] | O-RING | |
05. | 4248609 | [1] | BRG.;SPH.ROL. | |
09. | 4244691 | [1] | SEAL;OIL | |
14. | 1014526 | [1] | HOUSING | T 1017261 |
14. | 1014526 | [1] | HOUSING | 3058620 |
14. | 1017261 | [1] | HOUSING | |
15. | 3049949 | [1] | COVER | T 3058620 |
15. | 3049949 | [1] | COVER | 1017261 |
15. | 3058620 | [1] | COVER | |
16. | 4247567 | [1] | O-RING | |
17. | J011035 | [8] | BOLT;SEMS | |
18. | 969154 | [1] | BRG.;SPH.ROL. | I 4293424 |
18. | 4293424 | [1] | BRG.;SPH.ROL. | |
19. | 991350 | [1] | RING;RETAINING | |
22. | 2031003 | [1] | CARRIER | |
23. | 4258089 | [1] | PLATE;THRUST | |
26. | 9732811 | [3] | GEAR;PLANETARY | |
28. | 4244696 | [3] | PIN | |
29. | 4063351 | [3] | PIN;SPRING | |
30. | 4266255 | [6] | PLATE;THRUST | |
31. | 4247567 | [1] | O-RING | |
33. | 2028037 | [1] | GEAR;RING | |
35. | M341450 | [12] | BOLT;SOCKET | |
38. | 3046918 | [1] | GEAR;SUN | |
39. | 2031106 | [1] | CARRIER | |
41. | 4244904 | [1] | PLATE;THRUST | |
42. | 3046916 | [3] | GEAR;PLANETARY | |
44. | 4249345 | [3] | BRG.;NEEDLE | |
45. | 4244689 | [3] | PIN | |
46. | 4116307 | [3] | PIN;SPRING | |
47. | 4269480 | [6] | PLATE;THRUST | |
48. | 3046917 | [1] | GEAR;SUN | |
50. | 4244541 | [1] | O-RING | |
54. | 8050210 | [1] | PIPE | |
57. | 94-2012 | [1] | PLUG | |
60. | 8053413 | [1] | COVER | (for transportation) |
61. | J011050 | [8] | BOLT;SEMS | (for transportation) |
62. | 94-2011 | [1] | PLUG | (for transportation) |
100. | 4241171 | [1] | MOTOR;OIL | |
101. | M341028 | [8] | BOLT;SOCKET | |
102. | 927488 | [1] | RING;RETAINING | |
105. | 4264452 | [1] | PIPE | |
106. | 3053451 | [1] | GAUGE;LEVEL | |
108. | 4255227 | [1] | PIPE | |
109. | 4255226 | [1] | CAP | P 4298608 |
109. | 4298608 | [1] | CAP | |
111. | 3053093 | [1] | NAME-PLATE | |
112. | M492564 | [2] | SCREW;DRIVE | |
127. | J932060 | [10] | BOLT | |
128. | 4018545 | [10] | WASHER | |
200. | 9111265 | [1] | SWING DEVICE | (WITHOUT MOTOR) |
Company Information
GZ Belparts Engineering Machinery Co., Ltd, founded in September
2013, is a foreign trade company, which is specialized in procuring
and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts,
travel motor and gearbox, swing motor, and gearbox. Our products
have been exported to more than 100 countries and regions.
