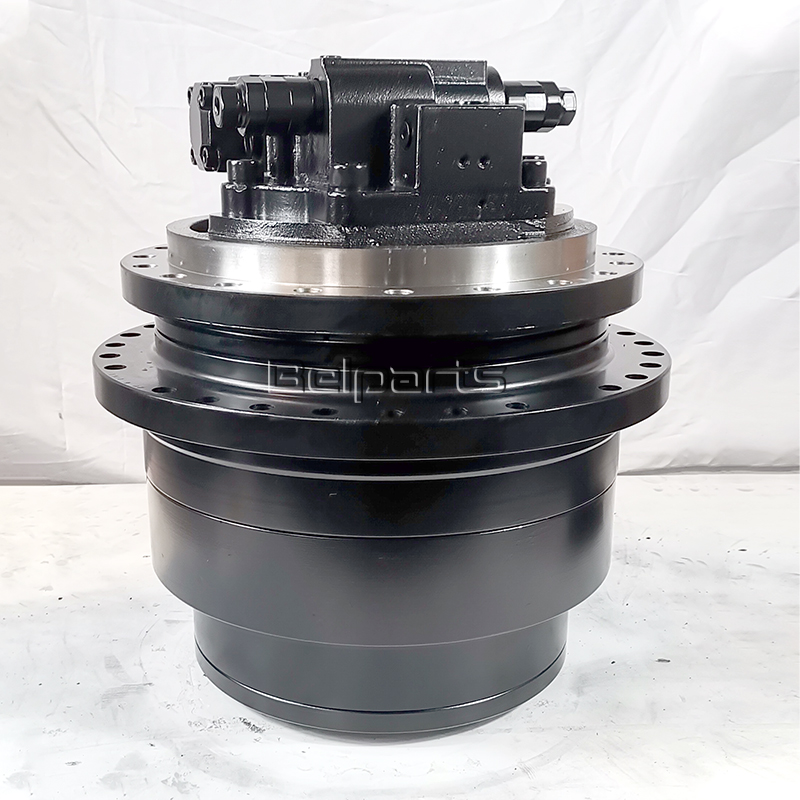

    Excavator Case CX460 KTA10190 LJ015030 Final Drive Assembly Construction Machinery Parts

    Ask Lasest Price
    Brand Name : case
    Model Number : CX460
    Price : Negotiated price
    Payment Terms : T/T, trade assurance,PayPal
    Supply Ability : 1000PCS
    Delivery Time : 1~3 days
    • Product Details
    • Company Profile

    Excavator Case CX460 KTA10190 LJ015030 Final Drive Assembly Construction Machinery Parts

    Construction Machinery Parts excavator case CX460 KTA10190 LJ015030 final drive assembly




    Product nameexcavator final drive
    Part nameFinal drive
    Brandcase
    ModelCX460
    Part numberKTA10190 LJ015030
    MaterialAlloy Steel
    Weight322KG
    TextureSteel


    List of spare parts

    #Part NoPart NameQty.Price request
    45 LJ015030HYDRAULIC MOTOR1
    46 LW005210HOUSING1
    47 LK005330PLUG2
    48 LE00997OIL SEAL1
    49 800-2168SNAP RING,M68, Int1
    50 LJ013800PISTON1
    51 LJ013810PISTON1
    52 LE012890SEAL1
    53 LB011180BALL1
    54 LB00833SHAFT1
    55 LB00834TAPERED BEARING1
    56 LR013570PLATE1
    57 LB00794BEARING, ROLLER2
    58 LR013580PLATE1
    59 LS002910BRACKET1
    60 LG00430COMPRESSION SPRING9
    61 LR00950SPRING SEAT1
    62 LB00795BALL JOINT1
    63 LH00320RETAINER1
    64 LJ015040PISTON9
    65 LR00859ADJUSTING PLATE7
    66 LR00858PLATE6
    67 LJ00954PISTON1
    68 LE012900SEALING RING1
    69 LE012910SEALING RING1
    70 LW004720COVER1
    84 LK00391PLUG2
    85 154467A1O-RING,10.8mm ID x 2.4mm Width2
    88 TK00028PLUG5
    89 154455A1O-RING5
    90 TJ00129CHECK VALVE3
    91 TG00045SPRING3
    98 LH00389SHIM KIT1
    99 LH00428SHIM,0.4mm Thk1
    100 LH00429SHIM,0.5mm Thk1
    101 LH00430SHIM,0.6mm Thk1
    102 LH00431SHIM,0.7mm Thk1
    103 LH00432SHIM,0.8mm Thk1
    104 LH00433SHIM,0.9mm Thk1
    105 837-8012DOWEL,M8 x 121
    106 LR015650PLATE1
    107 LG00431COMPRESSION SPRING14
    123 LB00793COUPLING FLANGE1
    124 800-2140SNAP RING,M40, Int1
