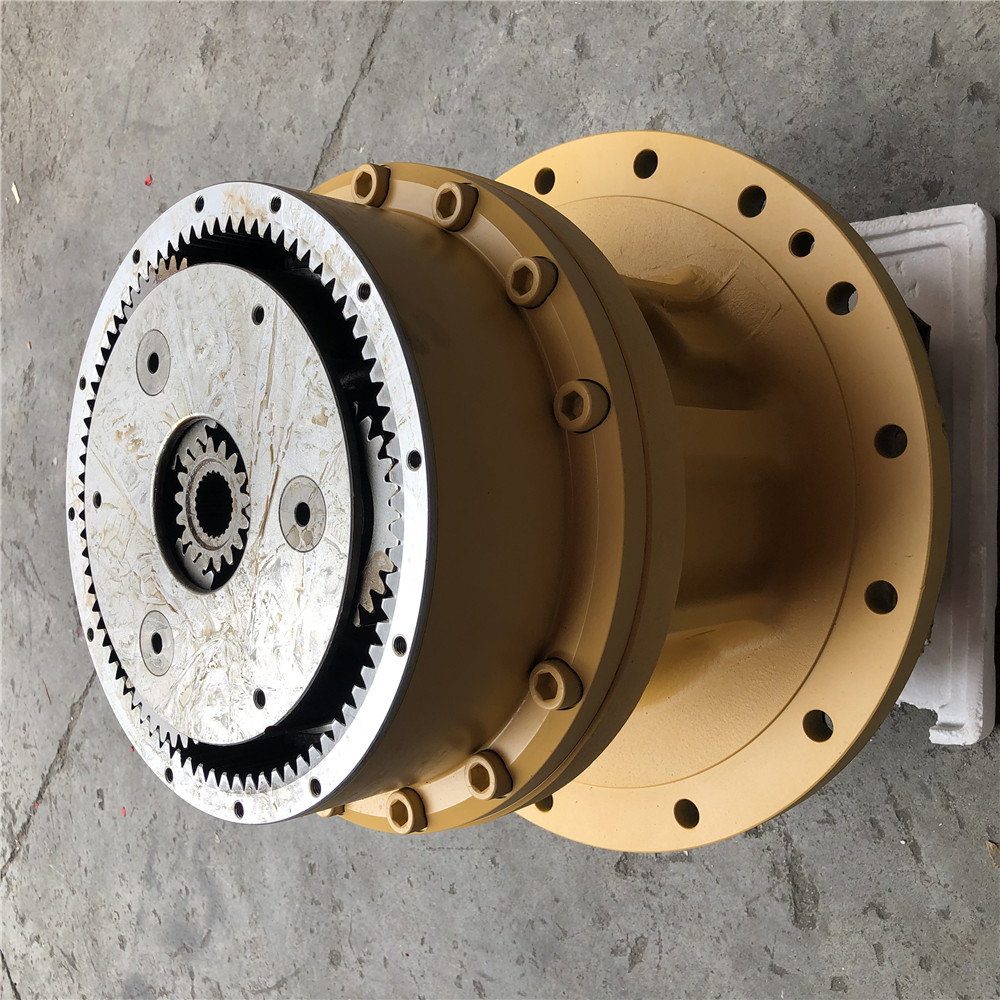

Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy

Product Categories
GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy from wholesalers

    Buy cheap Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy from wholesalers
    • Buy cheap Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy from wholesalers
    • Buy cheap Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy from wholesalers
    • Buy cheap Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy from wholesalers
    • Buy cheap Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy from wholesalers
    • Buy cheap Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy from wholesalers
    • Buy cheap Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy from wholesalers
    • Buy cheap Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy from wholesalers

    Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : R300-9
    Price : negotiation
    Supply Ability : 1000 Piece/Pieces per Month
    • Product Details
    • Company Profile

    Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy

    Excavator machine swing gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 swing reduction assy

    Product parameter:

    Product name

    swing gearbox

    Weight

    343KG

    Model:

    R300-9

    Part number:

    39Q8-12100 31Q8-10141 31Q8-11141

    Brand:

    Hyundai

    Package:

    61X62x63

    Delivery time:

    Within 2 days after receiving the payment


    Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction AssyExcavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy

    Parts on group SWING REDUCTION GEAR (TYPE 3, 4):

    Pos.Part NoQtyParts nameComments
    *-2. 39Q8-12100[1]SWING REDUCTION GEARSEE 4107
    *-2. 39Q8-12101[1]SWING REDUCTION GEARSEE 4107
    1. 39Q8-12110[1]GEAR RING
    2. 39Q8-12120[1]SHAFT-DRIVE
    3. 39Q8-12130[1]BEARING-SPH.ROLLER
    4. 39Q8-12140[1]BEARING-SPH.ROLLER
    5. 39Q8-12150[1]PLATE-THRUST
    6. 39Q8-12160[1]RING-SNAP
    7. 39Q8-12170[1]COVER
    8. S017-120306[12]BOLT-HEX
    9. 39Q8-12180[1]CASING
    10. S632-290001[1]O-RING
    11. S109-100306[12]BOLT-SOCKET
    K12. 39Q8-12201[1]CARRIER NO.2
    K13. 39Q8-12211[4]GEAR-PLANETARY NO.2
    K14. 39Q8-12220[4]BEARING-NEEDLE NO.2
    K15. 39Q8-12231[8]WASHER-THRUST NO.2
    K16. 39Q8-12240[4]PIN-CARRIER NO.2
    K17. S472-910404[4]PIN-SPRING
    K18. 39Q8-12251[1]GEAR-SUN NO.2
    K19. 39Q8-12261[1]PLATE-THRUST NO.2
    K20. 39Q8-12281[1]CARRIER NO.1
    K21. 39Q8-12291[3]GEAR-PLANETARY NO.1
    K22. 39Q8-12300[3]BEARING-NEEDLE NO.1
    K23. 39Q8-12311[6]WASHER-THRUST NO.1
    K24. 39Q8-12320[3]PIN-CARRIER NO.1
    K25. S472-800404[3]PIN-SPRING NO.1
    K26. 39Q8-12331[1]GEAR-SUN NO.1
    K27. 39Q8-12341[1]PLATE-THRUST NO.1
    28. 39Q8-12350[1]SLEEVE
    29. S632-140001[1]O-RING
    30. 39Q6-12350[1]SEAL-OIL
    31. 39Q6-41450[2]PIN-PARALLEL
    32. S109-18050D[14]BOLT-SOCKET
    33. 39Q8-12360[1]NAME PLATE
    34. 39Q6-41800[2]RIVET
    35. P220-430204[1]PLUG-HEX
    K. 39Q8-12190[1]CARRIER ASSY NO.2SEE ILLUST
    K. 39Q8-12270[1]CARRIER ASSY NO.1SEE ILLUST
    Product Tags:

    R300-9 Swing Gearbox



    31Q8-10141 Swing Gearbox



    39Q8-12100 Swing Gearbox


    Quality Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy for sale
