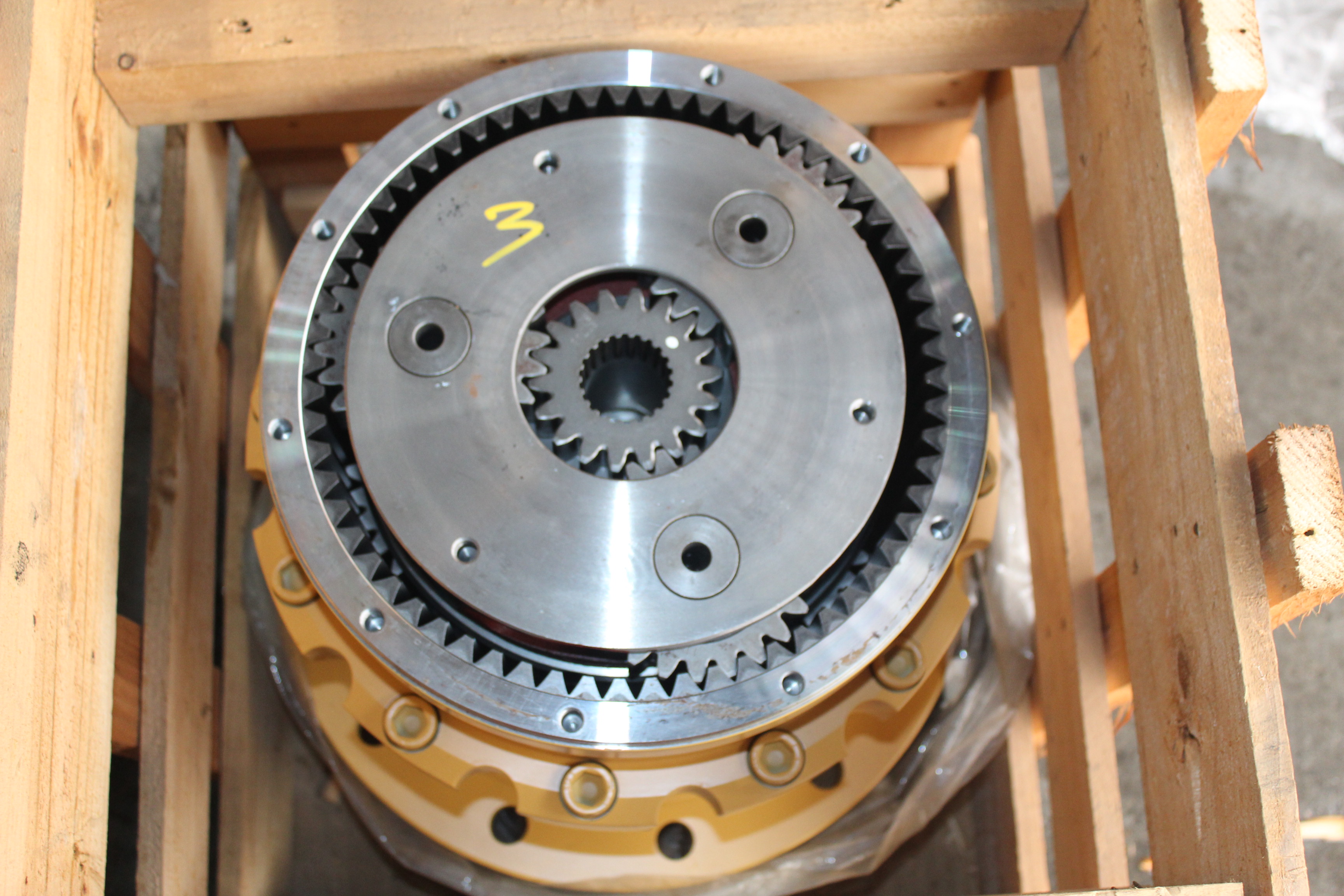

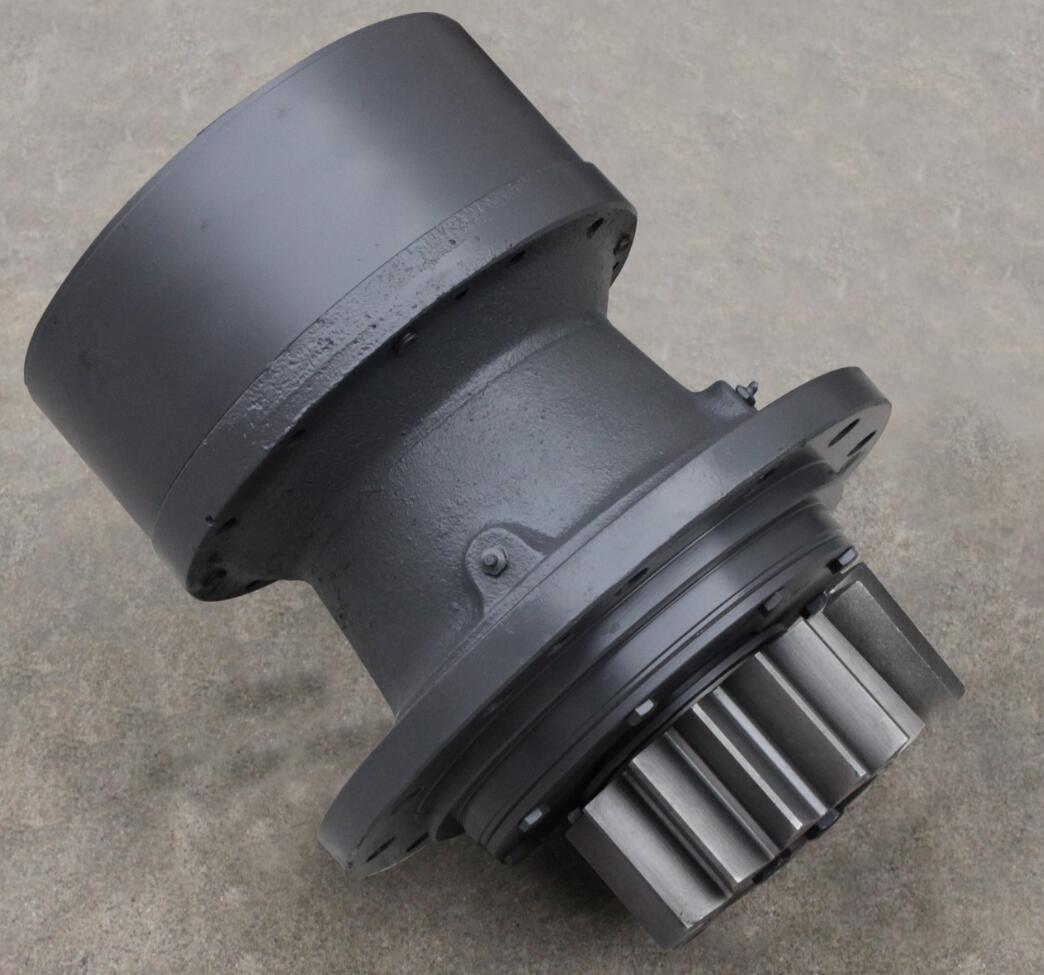

Belparts excavator swing gearbox R220LC-9S 39Q6-12100 / 39Q6-12101 / 39Q6-12102 swing reduction gearbox

Product parameter:

Product name	swing gearbox
Weight	85KG
Model:	R220LC-9S
Part number:	39Q6-12100 / 39Q6-12101 / 39Q6-12102
Brand:	Hyundai
Package:	60X60x64
Delivery time:	Within 2 days after receiving the payment

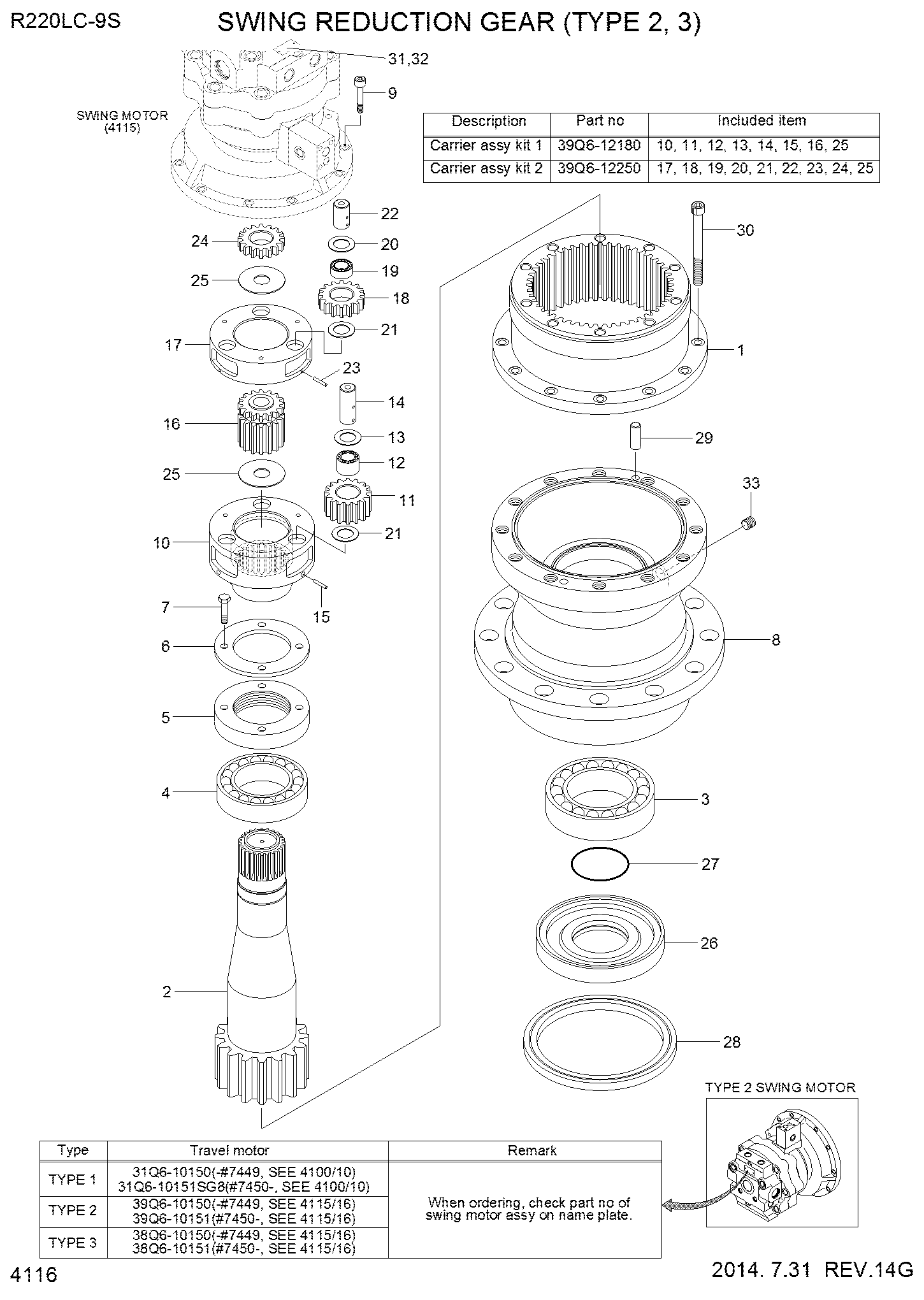

Belparts Excavator Swing Gearbox R220LC-9S 39Q6-12100 / 39Q6-12101 / 39Q6-12102 Swing Reduction Gearbox

Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	SWING MOTOR ASSY	SEE 4115
*-2.	39Q6-12100	[1]	SWING REDUCTION GEAR	HYMS
*-2.	39Q6-12101	[1]	SWING REDUCTION GEAR	HYMS
*-2.	39Q6-12102	[1]	SWING REDUCTION GEAR	HYMS
1.	39Q6-12110	[1]	GEAR-RING
2.	39Q6-12121	[1]	SHAFT-DRIVE
3.	39Q6-12130	[1]	BEARING-TAPER.MAIN
4.	39Q6-12140	[1]	BEARING-TAPER
5.	39Q6-12150	[1]	NUT-RING
6.	39Q6-12161	[1]	PLATE-LOCK
7.	S017-120166	[4]	BOLT-HEX
8.	39Q6-12171	[1]	CASING
8.	39Q6-12172	[1]	CASING
9.	S109-100306	[10]	BOLT-SOCKET
10.	39Q6-12190	[1]	CARRIER 2
11.	39Q6-12200	[3]	GEAR-PLANETARY 2
12.	39Q6-12210	[6]	BEARING-NEEDLE 2
13.	39Q6-12220	[6]	WASHER-THRUST 2
14.	39Q6-12230	[3]	PIN-CARRIER 2
15.	S472-800364	[3]	PIN-SPRING
16.	39Q6-12240	[1]	GEAR-SUN 2
17.	39Q6-12260	[1]	CARRIER 1
18.	39Q6-12271	[3]	GEAR-PLANETARY 1
19.	39Q6-12280	[3]	BEARING-NEEDLE 1
20.	39Q6-12290	[3]	WASHER-THRUST 1,UPP
21.	39Q6-12300	[3]	WASHER-THRUST 1,LOW
22.	39Q6-12310	[3]	PIN-CARRIER 1
23.	S472-600364	[3]	PIN-SPRING
24.	39Q6-12320	[1]	GEAR-SUN 1
25.	39Q6-12330	[2]	PLATE-THRUST
26.	39Q6-12340	[1]	SLEEVE
27.	S631-120001	[1]	O-RING
28.	39Q6-12350	[1]	SEAL-OIL
29.	39Q6-41450	[2]	PIN-PARALLEL
30.	S109-16045D	[12]	BOLT-SOCKET
31.	39Q6-12360	[1]	NAME PLATE
31.	39Q6-12361	[1]	NAME PLATE
31.	39Q6-12362	[1]	NAME PLATE
32.	39Q6-41800	[2]	RIVET
33.	P220-430204	[1]	PLUG-HEX
*-1.	@	[1]	SWING MOTOR UNIT	SEE 4115
K1.	39Q6-12180	[1]	CARRIER ASSY KIT 1	SEE ILLUST
K2.	39Q6-12250	[1]	CARRIER ASSY KIT 2	SEE ILLUST
