    Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : R480LC-9S R520LC-9S
    Price : negotiation
    Supply Ability : 1000 Piece/Pieces per Month
    • Product Details
    • Company Profile

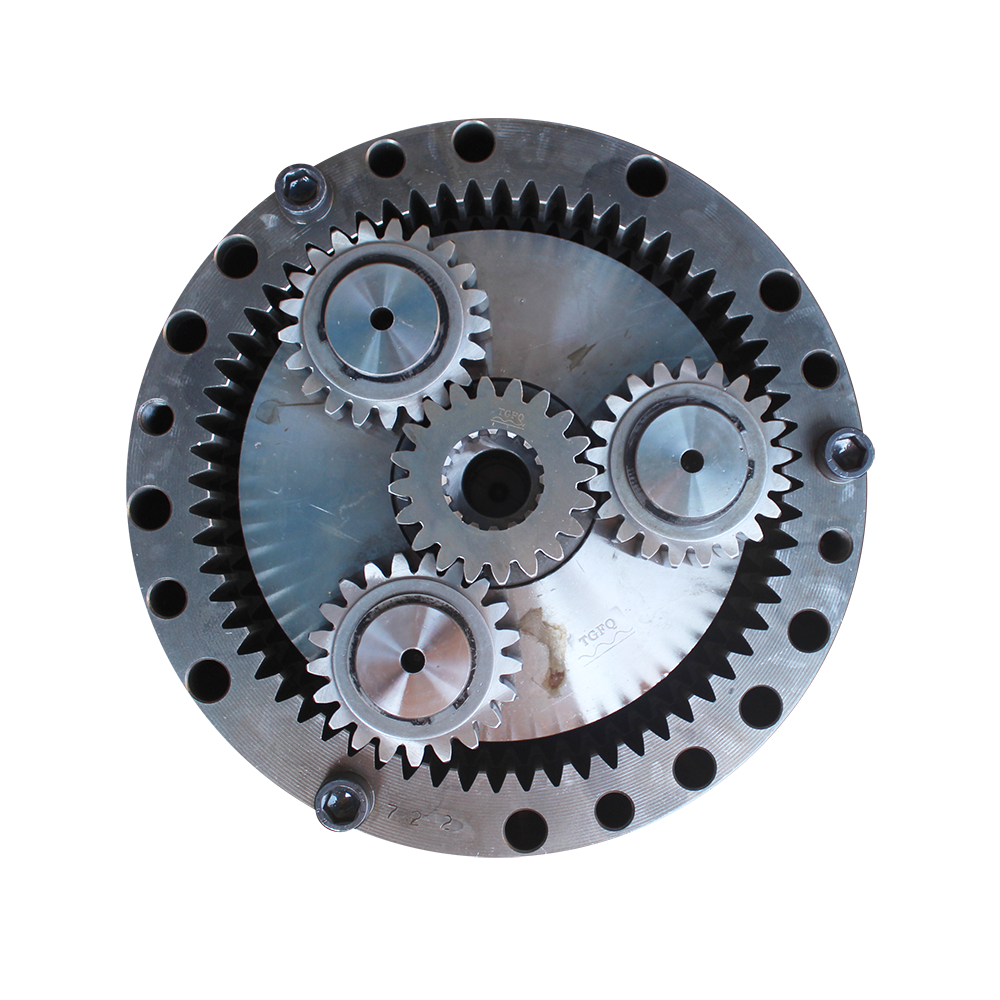

    Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI

    Excavator R480LC-9S R520LC-9S swing gearbox reduction 31QB-10141 swing gearbox for HYUNDAI

    Product parameter:

    Product name

    swing gearbox

    Weight

    190KG

    Model:

    R480LC-9S R520LC-9S

    Part number:

    31QB-10141

    Brand:

    Hyundai

    Package:

    46*70*40

    Delivery time:

    Within 2 days after receiving the payment


    Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAIExcavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI


    List of spare parts

    #Part NoPart NameQty.Price request
    *-2 31QB-10140SWING REDUCTION GEAR1
    1 XKAQ-00637CASING1
    2 XKAQ-00752SHAFT-DRIVE1
    3 XKAQ-00026BEARING-ROLLER1
    4 XKAQ-00032SEAL-OIL1
    5 XKAQ-00029BEARING-ROLLER1
    6 XKAQ-00753CARRIER ASSY 21
    7 XKAQ-00075CARRIER-21
    8 XKAQ-00023GEAR-PLANET 23
    9 XKAQ-00643PIN ASSY 23
    10 XKAQ-00070PIN & BUSHING1
    N11 XKAQ-00291BUSHING 21
    12 XKAQ-00644WASHER-THRUST6
    13 XKAQ-00048PIN-SPRING6
    14 XKAQ-00754CARRIER ASSY 1
    INCL 13
    1
    15 XKAQ-00531CARRIER 11
    16 XKAQ-00646PLANET GEAR 13
    17 XKAQ-00415PIN 13
    18 XKAQ-00030CAGE-NEEDLE3
    19 XKAQ-00417PLATE-SIDE 13
    20 XKAQ-00416PLATE-SIDE 23
    21 XKAQ-00041RING-STOP3
    22 XKAQ-00755GEAR-SUN 21
    23 XKAQ-00648GEAR-SUN 11
    24 XKAQ-00534PLATE-SIDE 31
    25 XKAQ-00649GEAR-RING1
    26 XKAQ-00072PIN-KNOCK2
    27 XKAQ-00404PLATE-THRUST1
    28 XKAQ-00074RING-STOP1
    29 XKAQ-00287GEAR-PINION1
    30 XKAQ-00018SPACER1
    31 XKAQ-00031PLATE-COVER1
    32 XKAQ-00064BOLT-HEX8
    33 XKAQ-00043PLATE-LOCK1
    34 XKAQ-00042BOLT-HEX2
    35 XKAQ-00029BEARING-ROLLER1
    36 XKAQ-00065BOLT-SOCKET12
    37 XKAQ-00049PLUG-PRESSURE1
    38 XKAQ-00274PLUG2
