    Small Excavator R160LC-9 R210LC-9 Swing Reduction Assy 31Q6-10140 Swing Gearbox For Hyundai

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : R160LC-9 R210LC-9
    Price : negotiation
    Supply Ability : 1000 Piece/Pieces per Month
    • Product Details
    • Company Profile

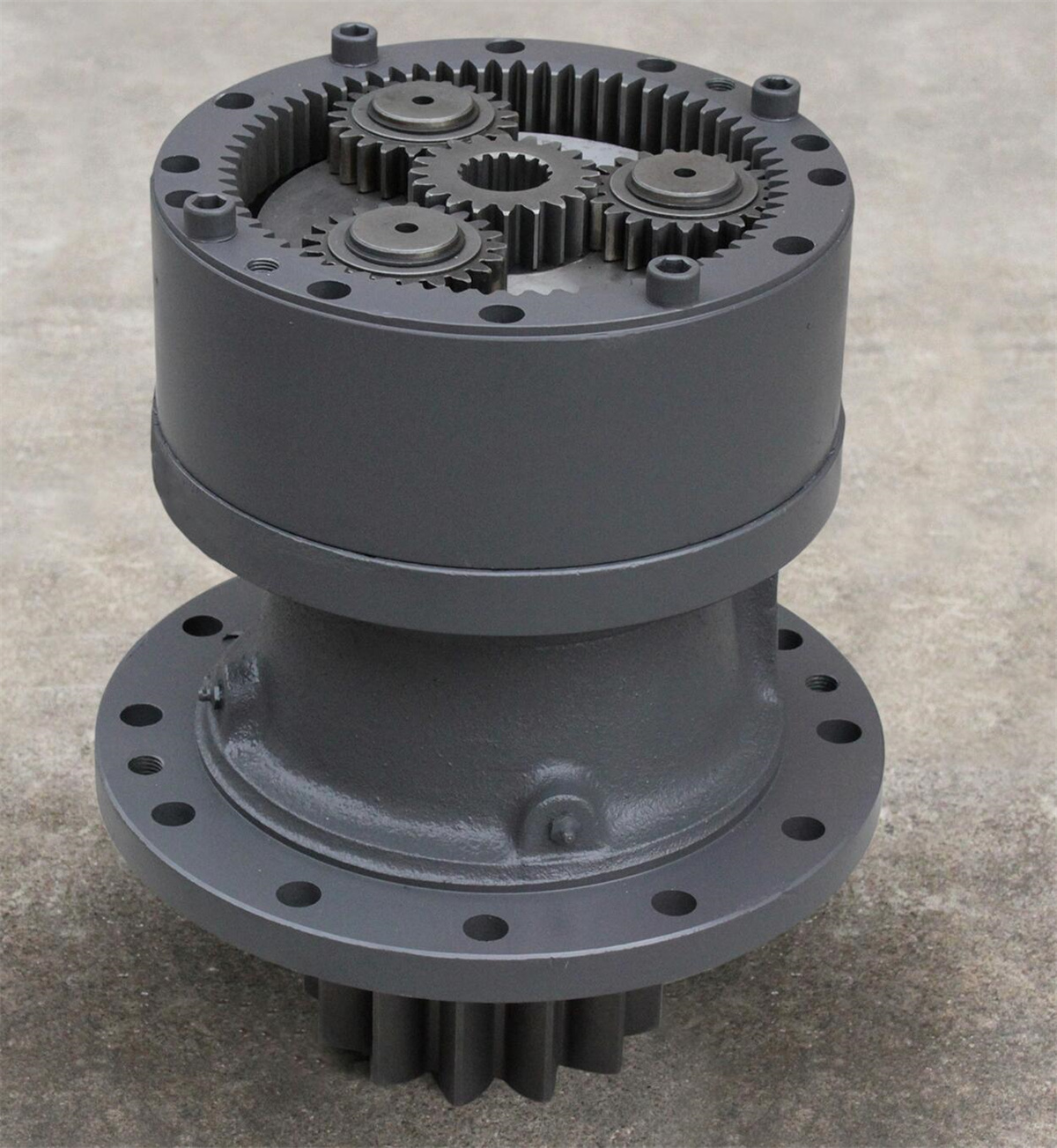

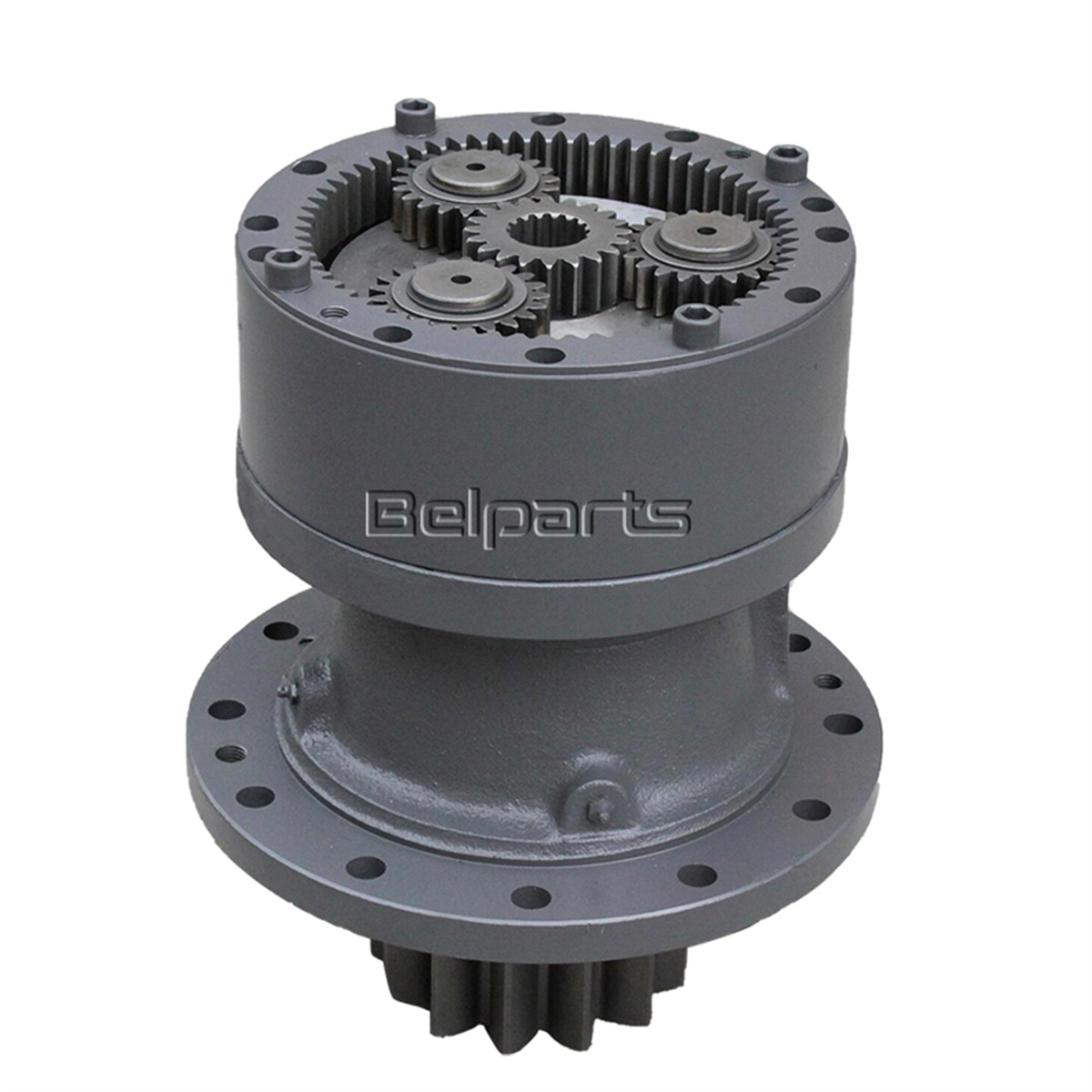

    Small Excavator R160LC-9 R210LC-9 Swing Reduction Assy 31Q6-10140 Swing Gearbox For Hyundai

    Small excavator R160LC-9 R210LC-9 swing reduction assy 31Q6-10140 swing gearbox for hyundai

    Product parameter:

    Product name

    swing gearbox

    Weight

    160KG

    Model:

    R160LC-9 R210LC-9

    Part number:

    31Q6-10140

    Brand:

    Hyundai

    Package:

    54*54*68

    Delivery time:

    Within 2 days after receiving the payment


    Small Excavator R160LC-9 R210LC-9 Swing Reduction Assy 31Q6-10140 Swing Gearbox For HyundaiSmall Excavator R160LC-9 R210LC-9 Swing Reduction Assy 31Q6-10140 Swing Gearbox For Hyundai

    List of spare parts

    #Part NoPart NameQty.Price request
    N* @FUEL INJECTION PIPE & NOZZLE
    SEE 4100
    1
    *-2 31Q6-10140SWING REDUCTION GEAR1
    1 XKAQ-00771CASING1
    2 XKAQ-00403SHAFT-DRIVE1
    3 XKAQ-00018SPACER1
    4 XKAQ-00026BEARING-ROLLER1
    5 XKAQ-00032SEAL-OIL1
    6 XKAQ-00029BEARING-ROLLER1
    7 XKAQ-00404PLATE-THRUST1
    8 XKAQ-00753CARRIER ASSY 21
    9 XKAQ-00075CARRIER-21
    10 XKAQ-00023GEAR-PLANET 23
    11 XKAQ-00643PIN ASSY 23
    12 XKAQ-00070PIN & BUSHING3
    N13 XKAQ-00291BUSHING 21
    14 XKAQ-00071WASHER-THRUST6
    15 XKAQ-00048PIN-SPRING3
    16 XKAQ-00755GEAR-SUN 21
    17 XKAQ-00754CARRIER ASSY 11
    18 XKAQ-00531CARRIER 11
    19 XKAQ-00025GEAR-PLANET 13
    20 XKAQ-00415PIN 13
    21 XKAQ-00030CAGE-NEEDLE3
    22 XKAQ-00057PLATE-SIDE 13
    23 XKAQ-00040PLATE-SIDE 23
    24 XKAQ-00041RING-STOP3
    25 XKAQ-00010GEAR-SUN 11
    26 XKAQ-00534PLATE-SIDE 31
    27 XKAQ-00529GEAR-RING1
    28 XKAQ-00770GEAR-PINION1
    29 XKAQ-00074RING-STOP1
    30 XKAQ-00072PIN-KNOCK2
    31 XKAQ-00065BOLT-SOCKET12
    32 XKAQ-00031PLATE-COVER1
    33 XKAQ-00064BOLT-HEX8
    34 XKAQ-00043PLATE-LOCK1
    35 XKAQ-00042BOLT-HEX2
    36 XKAQ-00292WASHER-LOCK1
    37 XKAQ-00049PLUG-PRESSURE1
    38 XKAQ-00066PLUG2
    *-1 @FUEL INJECTION PIPE & NOZZLE
    SEE 4100
    1
    N @FUEL INJECTION PIPE & NOZZLEAR
