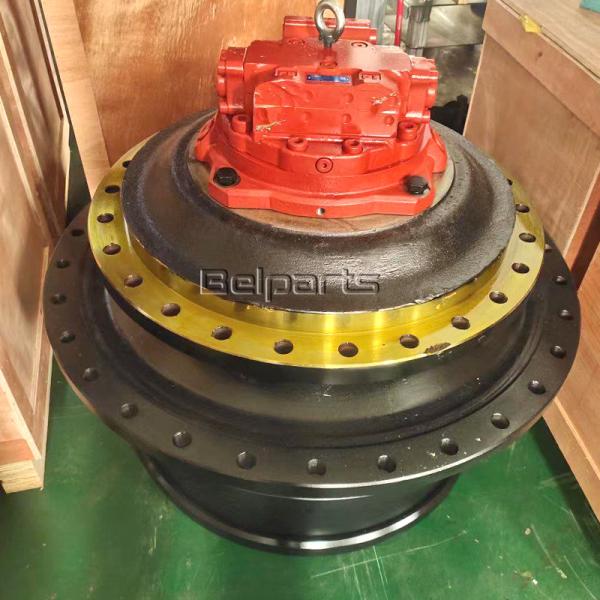

Excavator machine travel motor assy EX1200-6 4688059 final drive assembly for hitachi

Product Categories

GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Excavator machine travel motor assy EX12006 4688059 final drive assembly for hitachi
Brand: Belparts
Price: 1 USD

Add to Cart

Product parameter:

Product name	travel motor device
Weight	1300KG
Model:	110115115
Part number:	4688059
Brand:	Hitachi
Packing:	110115115
Delivery time:	Within 2 days after receiving the payment

Excavator machine travel motor assy EX1200-6 4688059 final drive assembly for hitachi

#	Part No	Part Name	Qty.
	9270013	TRAVEL DEVICE	1
00	1013435	. SPINDLE	1
02	J931860	. BOLT	4
03	A590918	. WASHER; SPRING	4
04	4271596	. O-RING	1
06	4688059	. MOTOR; OIL	1
07	1033971	. DRUM	1
09	2027546	. SUPPORT	1
10	M341230	. BOLT; SOCKET	18
11	4082698	. SEAL; GROUP	1
12	4224213	. BRG.; ROL.	1
13	4236786	. BRG.; ROL.	1
15	4661591	. SPROCKET	1
17	4085857	. WASHER	30
18	J932785	. BOLT	30
19	3045511	. NUT	1
20	3045510	. PLATE; LOCK	1
21	J901430	. BOLT	2
22	4471870	. BRG.; SPH.ROL.	4
23	1030005	. CARRIER	1
24	3094471	. GEAR; PLANETARY	4
26	959503	. RING; RETAINING	4
27	4235272	. PIN; SPRING	4
28	4464815	. PIN	4
29	4263905	. SPACER	1
30	3094470	. GEAR; SUN	1
32	4236701	. O-RING	1
33	J782470	. BOLT; SOCKET	28
35	1030106	. GEAR; RING	1
37	2047641	. CARRIER	1
38	3093778	. GEAR; PLANETARY	4
39	4452484	. BRG.; NEEDLE	4
40	4201913	. PLATE; THRUST	8
41	4464814	. PIN	4
42	4239705	. PIN; SPRING	4
43	4219641	. SPACER	1
44	3093780	. GEAR; SUN	1
46	2047640	. CARRIER	1
47	3093777	. GEAR; PLANETARY	3
48	4464813	. PIN	3
49	4096554	. BRG; NEEDLE	3
50	4239572	. PLATE; THRUST	6
51	4149437	. PIN; SPRING	3
53	4484178	. SPACER	1
54	2047642	. SHAFT; PROP.	1
56	1030007	. COVER	1
57	4160767	. BRG.; BALL	1
58	4277474	. PIN; STOPPER	1
59	J901435	. BOLT	26
60	A590914	. WASHER; SPRING	26
61	4462824	. PLUG	3
62	439641	. CORK	2
63	429597	. CORK	2
64	425175	. CORK	2
65	429597	. CORK	2
67		. NAME-PLATE	1
68	M492564	. SCREW; DRIVE	2
