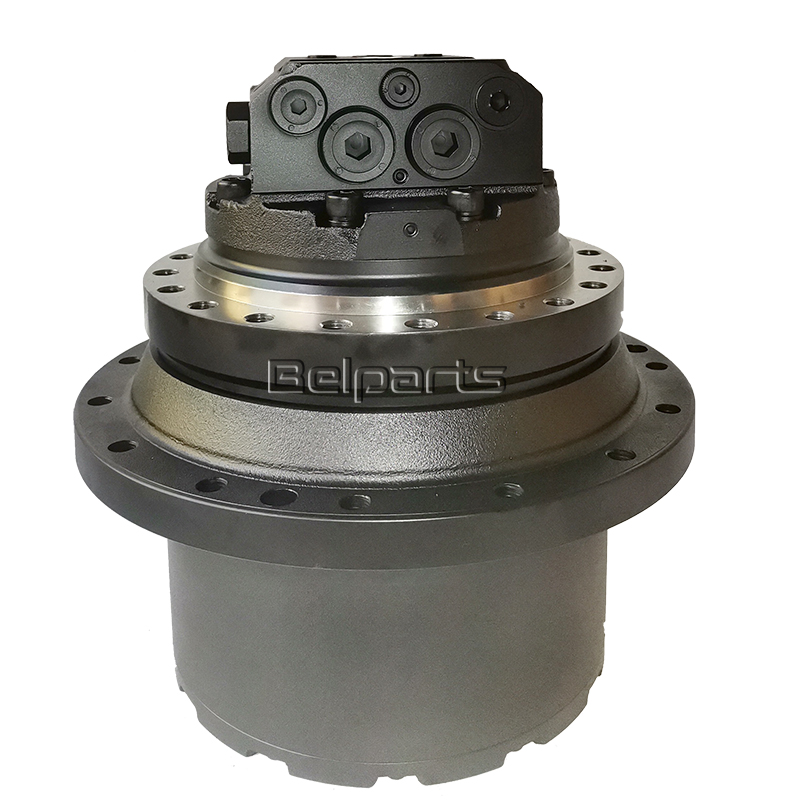

Excavator Parts S140LC-V Travel Motor Assy TM18B For Doosan 263B2070-00

Ask Lasest Price
Brand Name :	Doosan
Model Number :	S140LC-V
Price :	Negotiated price
Payment Terms :	T/T, trade assurance,PayPal
Supply Ability :	1000PCS
Delivery Time :	1~3 days

Add to Cart

Product Details
Company Profile

Excavator Parts S140LC-V Travel Motor Assy TM18B For Doosan 263B2070-00

Original Excavator hyundai R480LC-9 39QB-40101 39QB-41100 final drive travel motor

Part name	Final drive
Brand	Doosan
Model	S140LC-V
Part number	263B2070-00
Material	Alloy Steel
Weight	140 Kg
Package	464657
Motor number	TM18B

Excavator Parts S140LC-V Travel Motor Assy TM18B For Doosan 263B2070-00

List of spare parts

#	Part No	Part Name	Comment	Qty.
-	246B3103-00	VALVE, SLEEVE		1
201	247B3002-00	247B3000-0001 VALVE		1
202	246B3003-00	247B3000-0001 SLEEVE		1
203	247B3004-00	RETAINER, SPRING		1
204	247B3005-00	PLUG		1
205	247B3006-00	SHIM		1
206	247B3008-00	SPRING		1
208	JISB2401-P14-90	O-RING		2
209	JISB2401-P20-90	O-RING		2
210	JISB2401-P16-90	O-RING		1
211	JISB2407-T2-P14	RING, BACK-UP		2
*	249B3200-01	KIT, BODY(558~)		1
-	249B3201-01	KIT, BODY PISTON		1
212	249B3001-01	BODY, VALVE		1
213	247B3007-00	247B3000-0001 PISTON		1
209	JISB2401-P20-90	O-RING		2
214	610B2021-00	PLUG		1
215	512B2021-00	PLUG		2
216	JISB1501-3/8	BALL, STEEL	4 kg	2
217	JISB2407-T3-P20	RING, BACK-UP		4
218	GDL-1/16-S	PLUG, HEX. SOCKET		5
219	S0808	247B3000-0001 ORIFICE		2
220	JISB2401-P11-90	O-RING		2
221	JISB2401-P18-90	O-RING		1
*	2401-9121AKT	SEAL KIT, TRAVEL MOTOR		1 KIT
150	263B2049-00	BEARING, BALL		1
151	263B2098-00	BEARING, ROLLER		3
167	263B2076-02	PIVOT		2
169	263B2014-00	COLLAR		1
170	JISB1176-M8X65	BOLT, HEX. SOCKET		4
171	263B2077-01	PIN, PARELLEL		2
173	JISB2401-P18-90	O-RING		1
174	SW-M8	WASHER, SUPER LOCK		4
191	263B2090-00	SPRING		1
193	JISB2401-P11-90	O-RING		2
*	263B2105-00	KIT, PISTON		1
-	263B2040-01	PISTON ASS'Y		9
105	263B2005-01	PISTON		1
106	263B2006-02	SHOE, TRACK		1
-	263B2070-00	PISTON ASS'Y		1
161	263B2071-00	PISTON		1
162	263B2072-00	SHOE, TRACK		1
*	247B3000-01-0C	MOTOR, SERVO	3 kg	1
-	247B3100-00-0B	KIT, VALVE		2
-	269B2000-01-HE	TRAVEL MOTOR	20 kg	2
*	269B2100-00-E	REAR FLANGE ASS'Y	13 kg	1
-	269B2101-00-E	KIT REAR FLANGE(558~)		1
101	269B2001-00	FLANGE, REAR		1
123	266B2050-00-E	SPOOL		1
146	GM-1/8	PLUG, HEX. SOCKET	75 kg	3
154	GDL-1/16-S	PLUG, HEX. SOCKET		6
179	263B2079-00	FILTER		1
190	121F2070-00	ORIFICE		1
124	860A2051-00	PLUG		2
125	869A2052-00	RETAINER, SPRING		2
126	860A2053-02	PLUG		2
127	860A2054-01	VALVE, CHECK		2
128	860A2056-00	SPRING		2
130	860A2055-01	SPRING		2
136	JISB2401-P26-90	O-RING 1BP-26		2
137	JISB2401-P16-90	O-RING		2
163	200B2073-00	VALVE		1
164	300B2039-00	STOPPER		1
165	300B2042-00	RING		1
166	300B2043-01	SPRING		1
168	JISB1501-3/8	BALL, STEEL	4 kg	2
192	512B2021-00	PLUG		2
102	269B2002-00	SHAFT	1 kg	1
103	263B2003-01-H	PLATE, SWASH	2 kg	1
104	263B2004-04	BLOCK, CYLINDER	1 kg	1
107	263B2007-00	PLATE, RETAINER(558~)		1
108	263B2008-00	BALL, THRUST		1
109	263B2009-01	PLATE, TIMING		1
110	880A2010-00	WASHER		2
111	263B2011-03	WASHER		1
112	266B2012-00	PISTON		1
113	800A2013-00	SPRING		8
114	263B2093-01	SPRING		1
115	800A2015-00	PLATE, FRICTION		2
116	800A2016-00	PLATE, MATING		2
117	263B2074-00	PLATE MATING, TR MOT(TEIJ		1
121	610B2021-00	PLUG		1
132	15Z-25X42X10	SEAL, OIL		1
135	266B2035-00	O-RING		1
138	JISB2401-P18-90	O-RING		2
139	266B2039-00	O-RING		1
141	JISB1354-4X10	PIN, PARALLEL		1
142	JISB1354-10X25	PIN, PARALLEL		2
143	JISB1176-M10X30	BOLT, HEX. SOCKET		8
145	TH-R-42	RING, SNAP		1
149	263B2048-00	BEARING, ROLLER		1
