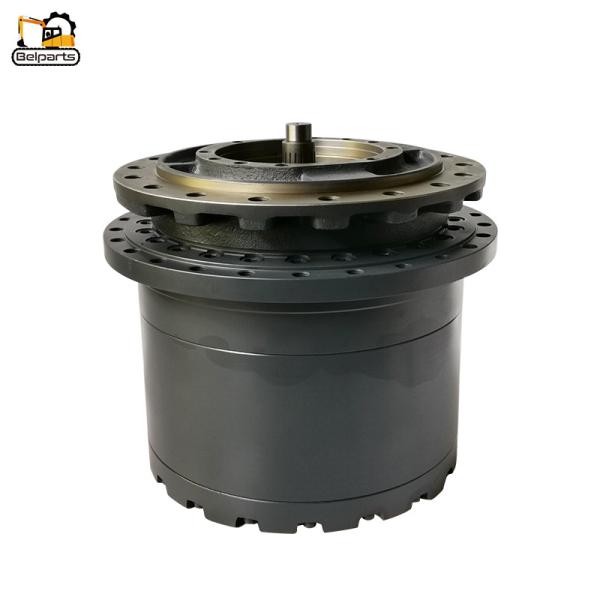

    Excavator SK330-6 hydraulic travel gearbox LC15V00026F1 LC15V00026F2

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : SK330-6
    Price : Negotiable price
    Payment Terms : T/T, Paypal, Trade Assurance
    Supply Ability : 1000 pieces
    Delivery Time : 1-7days
    • Product Details
    • Company Profile

    Excavator SK330-6 hydraulic travel gearbox LC15V00026F1 LC15V00026F2

    Excavator SK330-6 hydraulic travel gearbox LC15V00026F1 LC15V00026F2


    Name or description of a commodity


    Travel Gearbox


    Production address


    China


    Type



    sk330-6


    Minimum Order Quantity


    1 piece


    Payment Method


    T/T & Paypal


    Shipping Time


    Within 2 days after receiving The payment


    Packaging


    The first layer is packed in plastic and the second in wooden cases

    List of spare parts


    Pos.Part NoQtyParts nameComments
    . .LC15V00023F1[1]HYDRAULIC MOTORKOB Assembly, Incls. LC15V00026F1 -- Not Shown Superseded by part number: LC15V00023F2
    . .LC15V00023F2R[1]REMAN-HYD MOTORKOB SK350-8 ACERA MARK 8 EXCAVATOR - TIER 3 ASN YC08U~ (NA) (10/06-), REMAN FOR NEW PN LC15V00023F1
    . .LC15V00023F2C[1]CORE-MOTOR HYDRAULICKOB Return Number
    . .LC15V00026F1[1]HYDRAULIC MOTORKOB Hydraulic Motor Superseded by part number: LC15V00026F2
    1.LC53D00007S018[1]HOUSINGKOB
    2.24100U1682S19[2]BALL BEARINGKOB
    3.LC53D00007S017[1]GEARKOB RING
    4.ZS23C18110[25]SCREW,Hex Socket Head, M18 x 110mmKOB M18x2.50x110mm
    5.24100U1743S24[1]SEALKOB
    6.24100U1682S20[1]SHIMKOB
    7.24100U1682S21[2]LOCK WASHERKOB
    8.24100U1682S22[1]RINGKOB
    9.LC53D00007S011[1]CARRIERKOB
    10.LC15V00023S010[3]PLANETARY GEARKOB
    11.LC53D00007S016[6]WASHERKOB THRUST
    12.LC15V00023S012[3]BEARINGKOB NEEDLE
    13.LC53D00007S012[3]CARRIERKOB
    14.ZP26D10050[3]PINKOB SPRING
    15.LC15V00023S015[1]GEARKOB SUN
    16.LC53D00007S002[1]CARRIERKOB
    17.LC15V00023S017[3]PLANETARY GEARKOB
    18.LC53D00007S005[6]WASHERKOB THRUST
    19.LC15V00023S019[3]BEARINGKOB NEEDLE
    20.LC53D00007S003[3]PINKOB
    21.ZP26D06036[3]PINKOB Roll -- OD 06 x 36mm Long
    22.LC15V00023S022[1]GEARKOB SUN
    23.LQ15V00005S008[1]PLATEKOB
    24.LC15V00023S024[1]COVERKOB
    25.ZS28C10030[18]SCREW,Hex Socket Head, M10 x 30mmKOB M10x1.50x30mm
    26.YR30V00001S116[2]PLUGKOB
    27.ZD12P02400[2]O-RINGKOB ID 23.70 ± 0.24 x OD 30mm
    28.LC15V00023S028[1]CASEKOB
    29.LC15V00023S029[1]PLUGKOB
    30.2441U1040S27[1]RINGKOB
    31.2441U1040S19[1]COVERKOB
    32.2436U1749S17[1]PLUGKOB
    33.NSS[1]NOT SOLD SEPARATCON PISTON
    34.NSS[1]NOT SOLD SEPARATCON SEAL,PISTON
    35.LC15V00023S035[1]BALLKOB
    36.2441U1040S9[1]SHAFTKOB
    37.2441U1040S31[1]ROLLER BEARINGKOB
    38.NSS[2]NOT SOLD SEPARATCON PIVOT
    39.NSS[1]NOT SOLD SEPARATCON PLATE,SHOE
    40.LC15V00023S040[1]BLOCKKOB CYLINDER
    41.2441U1030S29[9]SPRINGKOB
    42.LC15V00023S042[1]HOLDERKOB
    43.LC15V00021S024[1]BALL JOINTKOB
    44.LC15V00021S004[1]RETAINERKOB SHOE
    45.GK15V00003S014[9]PISTONKOB ASSY
    46.2441U1040S7[7]PLATEKOB SEPARATOR
    47.2441U1040S5[6]PLATEKOB
    48.2441U1040S6[1]PISTONKOB
    49.LS15V00004S052[1]O-RINGKOB O-RING
    50.LS15V00004S053[1]O-RINGKOB
    51.LC15V00023S051[1]COVERKOB
    52.2436U1427S25[14]PLUGKOB
    53.LC15V00023S053[1]SPOOLKOB
    54.LC15V00023S054[2]SPRING SEATKOB
    55.YN15V00017S053[2]SPRINGKOB
    56.LC15V00023S056[2]COVERKOB
    57.ZD12G04000[2]O-RING,39.40mm ID x 45.60mm OD x 3.10mmKOB ID 39.40 ± 0.37 x OD 45mm
    58.LC15V00023S058[1]SPOOLKOB
    59.2436R874S6[1]PINKOB
    60.2436R874S5[1]SPRING SEATKOB
    61.2436R874S7[1]SPRINGKOB
    62.LC15V00023S062[1]PLUGKOB
    63.ZD12P01400[2]O-RINGKOB ID 13.80 ± 0.19 x OD 18mm
    64.2436R874S3[1]FLEXIBLE JOINTKOB
    65.2436U1317S13[2]PLUGKOB
    66.ZD12P01100[2]O-RINGKOB ID 10.8mm x OD 13.2mm
    67.LC15V00023S067[2]RESTRICTORKOB
    68.LC15V00023S068[2]SPRINGKOB
    69.YN15V00017S038[5]PLUGKOB
    70.ZD12P00800[5]O-RING,1.9mm Thk x 7.8mm ID, 90 DuroKOB ID 7.8mm x OD 9.7mm
    71.YN15V00017S017[3]CHECK VALVEKOB
    72.YN15V00017S026[3]SPRINGKOB
    73.GN15V00010S024[2]RESTRICTORKOB
    74.ZD12P01250[1]O-RINGKOB ID 12.3mm X OD 14.7mm
    75.GN15V00010S025[1]RESTRICTORKOB
    76.ZD12P01500[1]O-RINGKOB ID 14.80 ± 0.20 x OD 19mm
    77.2441U1040S40[1]O-RINGKOB
    78.2441U1040S32[1]ROLLER BEARINGKOB
    79.LS15V00014S033[2]SHIMKOB Superseded by part number: 2441U1040S34
    80.2441U1040S35[1]PINKOB
    81.LC15V00021S008[1]PLATEKOB VALVE
    82.YN15V00003S030[10]SPRINGKOB
    83.ZS23C18050[10]SCREW,Hex Socket Head, M18 x 50mmKOB M18x2.50x50mm
    84.LC22V00006F1[2]VALVEKOB ASSY,OVERLOAD RELIEF SEE(HC385)
    85.2441U1040S10[1]COUPLING JOINTKOB
    86.ZR26X04000[1]RINGKOB Retaining -- ID 40 x OD 43.5 x Th 1.8mm
    87.YR30V00001S115[2]PLUGKOB
    88.ZD12P01800[2]O-RINGKOB ID 17.8mm x OD 20.2mm
    K.LC15V00023R100[1]KITSM Ref 33x1 34x1
    K.LC15V00023R200[1]KITSM Ref 38x2 39x1
    K.LC15V00023R300[1]KITSM Ref 46x7 47x6
