    Excavator R520 Swing Reduction Slewing Gearbox 31QB-10141

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : R520
    Price : Negotiable Price
    Payment Terms : T/T, Paypal and Trade Assurance
    Supply Ability : 1000pieces
    Delivery Time : 1-7days
    MOQ : 1PC
    • Product Details
    • Company Profile

    Excavator R520 Swing Reduction Slewing Gearbox 31QB-10141

    Excavator R520 Slewing gearbox 31QB-10141 Swing Gearbox


    AppliionExcavator
    Part nameBelparts swing gearbox
    MaterialSteel
    ModelR520
    MOQ1PC
    Payment termT/T, Paypal, Trade assurance, or as required
    Delivery2 days after the payment received
    Shipmentby sea, by air, by express, or as required

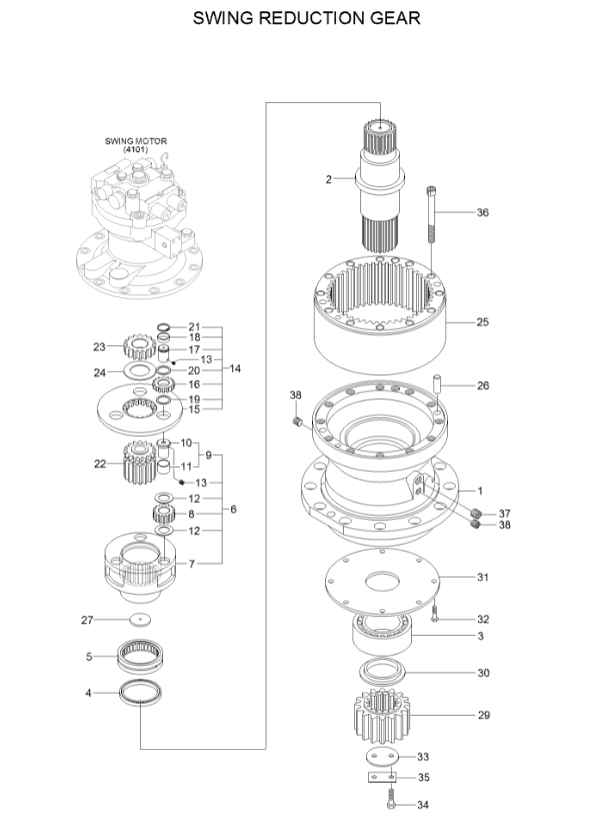

    Parts on group


    Pos.Part NoQtyParts name
    *-2.31QB-10140[1]SWING REDUCTION GEAR
    *-2.31QB-10141[1]SWING REDUCTION GEAR
    *-2.31QB-10141AR[1]SWING REDUCTION GEAR
    1.XKAQ-00637[1]CASING
    1.XKAQ-00964[1]CASING
    2.XKAQ-00645[1]SHAFT-DRIVE
    3.XKAQ-00026[1]BEARING-ROLLER
    4.XKAQ-00032[1]SEAL-OIL
    5.XKAQ-00647[1]BEARING-ROLLER
    5.XKAQ-00961[1]BEARING-ROLLER
    6.XKAQ-00753[1]CARRIER ASSY 2
    7.XKAQ-00075[1]CARRIER 2
    8.XKAQ-00023[3]GEAR-PLANET 2
    9.XKAQ-00643[3]PIN ASSY 2
    10.XKAQ-00070[1]PIN 2
    N11.XKAQ-00291[1]BUSHING 2
    12.XKAQ-00644[6]WASHER-THRUST
    13.XKAQ-00048[6]PIN-SPRING
    14.XKAQ-00754[1]CARRIER ASSY 1
    15.XKAQ-00531[1]CARRIER 1
    16.XKAQ-00646[3]GEAR-PLANET 1
    17.XKAQ-00415[3]PIN 1
    18.XKAQ-00030[3]CAGE-NEEDLE
    19.XKAQ-00417[3]PLATE 1-SIDE
    20.XKAQ-00416[3]PLATE 2-SIDE
    21.XKAQ-00041[3]RING-STOP
    22.XKAQ-00755[1]GEAR-SUN 2
    23.XKAQ-00648[1]GEAR-SUN 1
    24.XKAQ-00534[1]PLATE-SIDE 3
    25.XKAQ-00779[1]GEAR-RING
    26.XKAQ-00072[2]PIN-KNOCK
    27.XKAQ-00404[1]PLATE-THRUST
    29.XKAQ-00287[1]GEAR-PINION
    29.XKAQ-00978[1]GEAR-PINION
    30.XKAQ-00018[1]SPACER
    31.XKAQ-00031[1]PLATE-COVER
    32.XKAQ-00064[8]BOLT-HEX
    33.XKAQ-00043[1]PLATE-LOCK
    34.XKAQ-00042[2]BOLT-HEX
    35.XKAQ-00044[1]WASHER-LOCK
    36.XKAQ-00065[12]BOLT-SOCKET
    37.XKAQ-00049[1]PLUG
    38.XKAQ-00274[2]PLUG
    N.@[AR]NOT SUPPLIED PARTS
