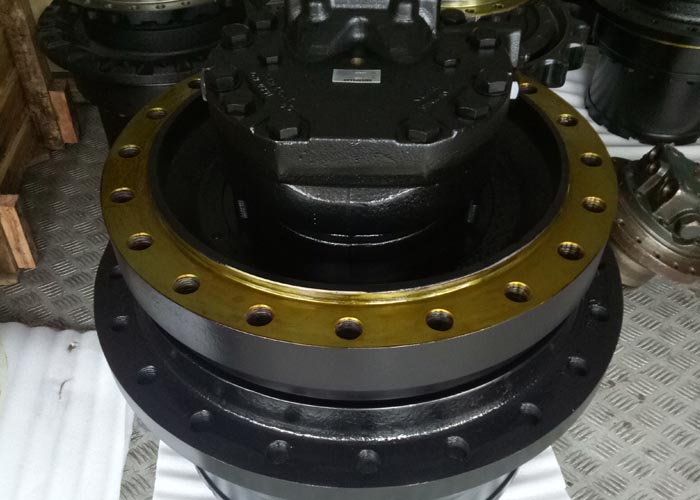

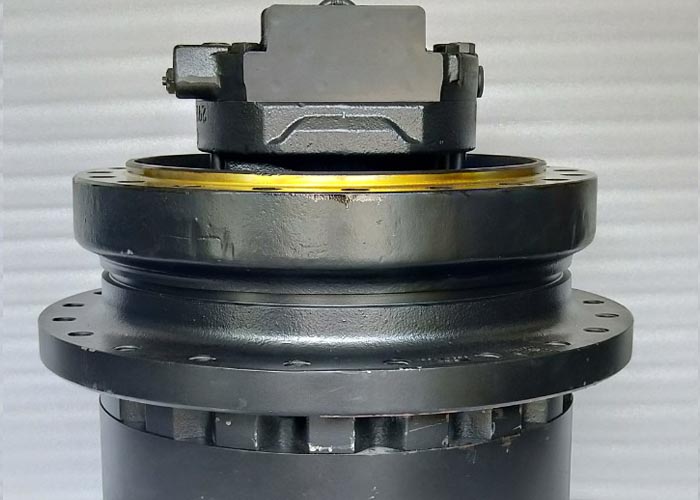

Excavator travel motor assy 9254462 travel device ZX650LC-3 travel
reduction
| Product name | Belparts excavator parts E374D E374DL travel motor ass'y 315-4480 final drive |
| Part name | Final drive |
| Excavator model | Crawler Excavator |
| Appliion | E374DL |
| MOQ | 1pcs |
| Material | Alloy Steel |
| Delivery | By sea,By air,By express |
| Package | Standard shipping package |

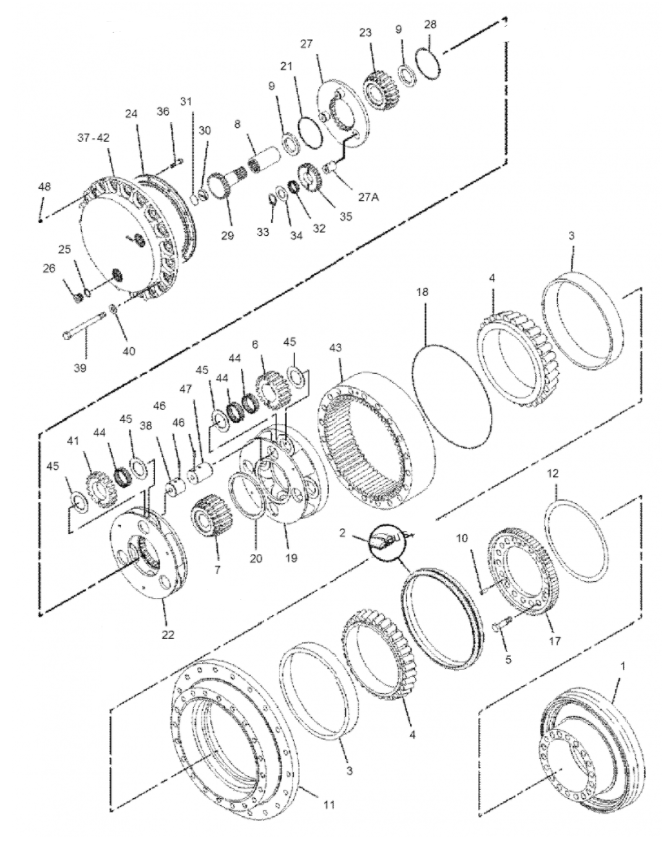

| # | 号码 | 名称 | 数量 |
|---|
| 1 | 1994727 | HOUSING-MOTOR | 1 |
| 2 | 2147880 | SEAL GROUP-DUO-CONE | 1 |
| 2147879 | RING-TORIC | 2 |
| 3 | 1631657 | CUP-SPECIAL TAPERED | 2 |
| 4 | 1631656 | CONE-SPECIAL TAPERED | 2 |
| 5 | 8C3411 | BOLT (M30X3.5X90-MM) | 10 |
| 6 | 1362926 | GEAR-PLANETARY (22-TEETH) | 4 |
| 7 | 1362923 | GEAR-SUN (20-TEETH) | 1 |
| 8 | 7Y1469 | COUPLING | 1 |
| 9 | 1362944 | SPACER (61X95.1X10-MM THK) | 2 |
| 10 | 1362948 | PIN-DOWEL | 6 |
| 11 | 1994728 | HOUSING | 1 |
| 12 | 1362959 | SHIM (0.3-MM THK) | 1 |
| 1362962 | SHIM (0.6-MM THK) | 1 |
| 1362963 | SHIM (0.7-MM THK) | 1 |
| 1362964 | SHIM (0.8-MM THK) | 1 |
| 1362965 | SHIM (1-MM THK) | 1 |
| 1362966 | SHIM (1.6-MM THK) | 1 |
| 17 | 1362949 | GEAR-COUPLING (83-TEETH) | 1 |
| 18 | 1362967 | SEAL-O-RING | 1 |
| 19 | 1362947 | CARRIER-PLANETARY | 1 |
| 20 | 1362945 | SPACER (203X233X8.5-MM THK) | 1 |
| 21 | 1362943 | RING-RETAINING | 1 |
| 22 | 1362930 | CARRIER-PLANETARY | 1 |
| 23 | 1362922 | GEAR-SUN (19-TEETH) | 1 |
| 24 | 1362927 | GEAR-RING (86-TEETH) | 1 |
| 25 | 7M8485 | SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429 | 2 |
| 26 | 3E2338 | PLUG-PIPE | 2 |
| 27 | 1362934 | CARRIER AS | 1 |
| 27A | 1362931 | SHAFT-PLANETARY | 3 |
| 28 | 7Y0667 | RING (RETAINING) | 1 |
| 29 | 1362921 | GEAR-SUN (22-TEETH) | 1 |
| 30 | 7Y1493 | SPACER (8.7X50X14-MM THK) | 1 |
| 31 | 7Y0808 | SHIM (1.6mm THICK) | 1 |
| 32 | 1362946 | BEARING-CAGED | 3 |
| 33 | 8T4240 | RING - RETAINING | 3 |
| 34 | 0940584 | WASHER (40.3X72X1-MM THK) | 6 |
| 35 | 1362924 | GEAR-PLANETARY (31-TEETH) | 3 |
| 36 | 8T3957 | BOLT (SOCKET HEAD) (M12X1.75X30MM) | 12 |
| 37 | 1362920 | COVER | 1 |
| 38 | 1362932 | SHAFT-PLANETARY | 3 |
| 39 | 7Y5231 | BOLT (M30X3.5X260-MM) | 18 |
| 40 | 9X8258 | WASHER (33X56X6-MM THK) | 18 |
| 41 | 1362925 | GEAR-PLANETARY (23-TEETH) | 3 |
| 42 | 1U8846 | SEALANT (FOR LOIONS A) | |
| 43 | 1362928 | GEAR-RING (68-TEETH) | 1 |
| 44 | 7Y0912 | BEARING-ROLLER AS | 11 |
| 45 | 4I7576 | WASHER (66.3X104X3-MM THK) | 14 |
| 46 | 0995194 | PIN-SPRING | 7 |
| 47 | 1362933 | SHAFT-PLANETARY | 4 |
| 48 | 0963216 | SETSCREW-SOCKET (M12X1.75X12-MM) | 2 |
| | | |
| | AVAILABLE REPAIR KIT(S): | |
| 1362957 | KIT-SHIM (FINAL DRIVE) | 1 |
| | USE AS REQUIRED | |
| | KIT MARKED J SERVICES PARTS MARKED J | |
| | METRIC PART | |
Company Information
GZ Yuexiang(Belparts) Engineering Machinery Co., Ltd, founded in
September 2013, is a foreign trade company, which is specialized in
procuring and selling excavator parts.Our main products are
excavator hydraulic pump, hydraulic parts, travel motor and
gearbox, swing motor and gearbox. Our products have been exported
to more than 100 countries and regions.
Exhibition Strength
In the past few years, in order to sell our products all over the
world, we have participated in many exhibitions, such as Beijing
Construction Machinery Exhibition in 2017, Shanghai Bauma
Exhibition in 2018, German Exhibition in 2019, and we will continue
to participate in various exhibitions in the future to let our
products go to the world.
Hot products
Our advantages
1.Strong part number database.
If you can provide the right model and part number, we can supply
the right product.
2.Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with
rich experiences.
3.Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before
delivery, we must verify the part number or pictures of products
one by one, to make sure that customers can receive high-quality
and right-quantity goods.
4.Good management system.
No matter how big or small order, as long as customers place the
order, we will provide exporting service free for charge.
5.Good service attitude.
If the customer has any questions about the product, In our
receiving and knowing the situation, we will help the customer to
solve the problem in the first place.As long as customers’
requirements are reasonable, we will endeavour to make them
satisfied.
Factory Superiority
Packing and Logistics
FAQ:
1. If I only know the excavator model, but can not offer parts No.,
what should I do ?
If possible, you can send us pictures of old products, nameplate or
the size for reference.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), trade
assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24
hours; if not in stock , we will inform you before placing the
order.
5. How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if
you really found something wrong ,pls provide pictures for us and
we will check. After it is confirmed, pls return to us , we will
offer the correct item.
6. What is your main products ?
We are specialized in the excavator spare parts, such as travel
motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts,
hydraulic pump assy/parts and gear parts. If you need other
excavator parts, we also can supply as your requirements.
