EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction

GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction from wholesalers

    Buy cheap EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction from wholesalers
    • Buy cheap EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction from wholesalers
    • Buy cheap EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction from wholesalers
    • Buy cheap EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction from wholesalers

    EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : EX60-1
    Price : Negotiable Price
    Payment Terms : T/T, Paypal and Trade Assurance
    Supply Ability : 1000pieces
    Delivery Time : 1-7 days
    MOQ : 1PC
    • Product Details
    • Company Profile

    EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction

    Excavator EX60-1 hydraulic travel gearbox 9069295 travel reduction


    Appliion

    Excavator

    Part name

    Belparts

    Material

    Steel

    Model

    EX60-1

    MOQ

    1PC

    Payment term

    T/T, Paypal, Trade assurance, or as required

    Delivery

    2 days after the payment received

    Shipment

    by sea, by air, by express, or as required

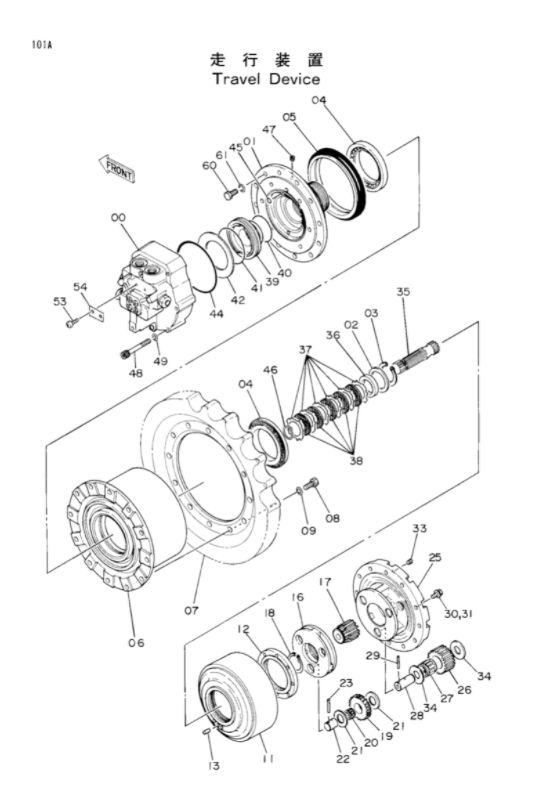

    List of spare parts


    Pos.Part NoQtyParts nameComments
    00.9069509[1]MOTOR;OILI 9123069
    00.9123069[1]MOTOR;OILY 9138838
    00.9138838[1]MOTOR;OIL
    00-49.9069295[2]TRAVEL DEVICE ASS'YY 9096479
    00-54.9096479[2]TRAVEL DEVICE ASS'YI 9138927
    00-54.9138927[2]TRAVEL DEVICE ASS'Y
    01.1011457[1]HOUSING
    02.4092443[1]SPACER
    03.991726[1]RING;RETAINING
    04.4148014[2]BRG.;ROL
    05.4092483[1]SEAL;GROUP
    06.1011458[1]DRUM
    07.1010447[1]SPROCKET
    08.J931635[12]BOLTY J931640
    08.J931635[12]BOLT
    08.J931640[12]BOLTY J931635
    09.A590916[12]WASHER;SPRING
    11.2023132[1]GEAR;RING
    12.3027147[1]NUT
    13.4148012[1]PIN;KNOCK
    16.2023175[1]CARRIER
    17.3027146[1]GEAR;SUN
    18.959499[1]RING;RETAINING
    19.3027148[3]GEAR;PLANETARY
    20.4177007[3]BRG.;NEEDLE
    21.4192910[6]PLATE;THRUST
    22.4178202[3]PIN
    23.4169566[3]PIN;SPRING
    23.4173093[3]PIN;SPRINGY 4169566
    25.1010450[1]CARRIER
    26.3027149[3]GEAR;PLANETARY
    27.4148013[3]BRG.;NEEDLE
    28.4148016[3]PIN
    29.4144017[3]PIN;SPRING
    30.J011230[12]BOLT;SEMS
    30.M221232[12]BOLTI J011230
    31.A590912[12]WASHER;SPRING
    33.4245797[3]PLUG
    33.94-2013[2]PLUG
    33.94-2013[3]PLUGY 4245797
    34.4148080[6]PLATE;THRUST
    35.2017872[1]SHAFT;PROP.
    36.4092444[1]SPACER
    37.3036156[6]PLATET 3070674
    37.3036156[6]PLATET 3070675
    37.3070675[6]PLATE
    38.3036157[5]PLATE;FRICTIONT 3070674
    38.3036157[5]PLATE;FRICTIONT 3070675
    38.3070674[5]PLATE;FRICTION
    39.3036158[1]PISTON
    40.4092712[1]D-RING
    41.4092713[1]D-RING
    42.3017067[1]SPRING;DISC
    44.4154877[1]O-RING
    45.957366[1]O-RING
    46.929231[1]RING
    47.94-2010[1]PLUG
    48.4192042[6]BOLT;SOCKET
    49.A590914[6]WASHER;SPRING
    53.M492564[2]SCREW;DRIVE
    54.3053559[1]NAME-PLATEY 3071686
    54.3071686[1]NAME-PLATE(FOR TRANSMISSION)
    60.J931650[24]BOLT
    61.A590916[24]WASHER;SPRING
