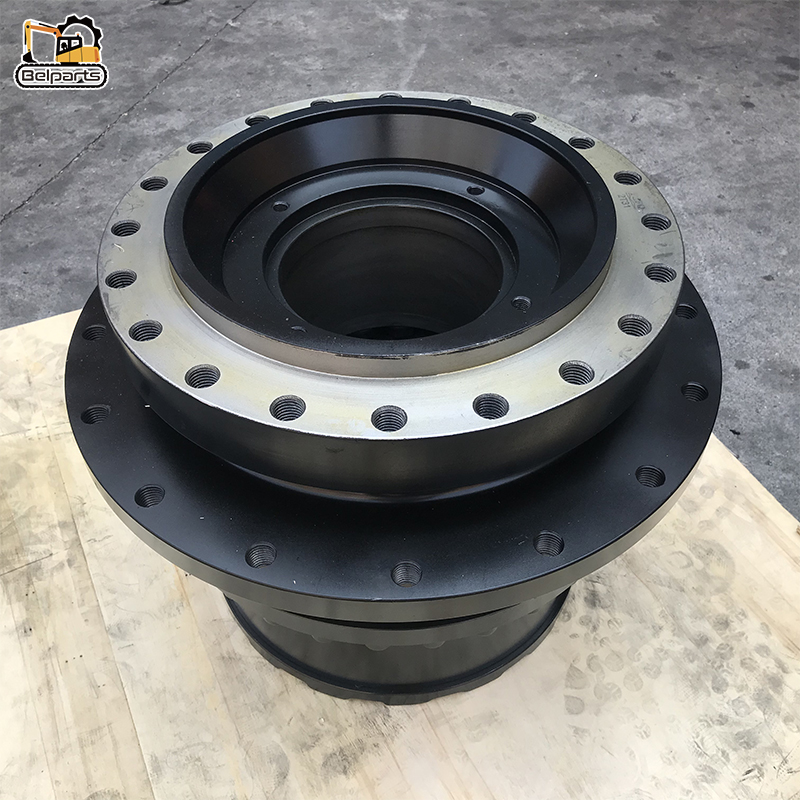

Excavator E336E Hydraulic Travel Gearbox 353-0562

GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Excavator E336E Hydraulic Travel Gearbox 353-0562 from wholesalers

    Buy cheap Excavator E336E Hydraulic Travel Gearbox 353-0562 from wholesalers
    • Buy cheap Excavator E336E Hydraulic Travel Gearbox 353-0562 from wholesalers
    • Buy cheap Excavator E336E Hydraulic Travel Gearbox 353-0562 from wholesalers
    • Buy cheap Excavator E336E Hydraulic Travel Gearbox 353-0562 from wholesalers

    Excavator E336E Hydraulic Travel Gearbox 353-0562

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : E336E
    Price : Negotiable Price
    Payment Terms : T/T, Paypal and Trade Assurance
    Supply Ability : 1000pieces
    Delivery Time : 1-7 days
    MOQ : 1PC
    • Product Details
    • Company Profile

    Excavator E336E Hydraulic Travel Gearbox 353-0562

    Excavator E336E hydraulic travel gearbox 353-0562 travel reduction​


    Appliion

    Excavator

    Part name

    Belparts

    Material

    Steel

    Model

    E336E

    MOQ

    1PC

    Payment term

    T/T, Paypal, Trade assurance, or as required

    Delivery

    2 days after the payment received

    Shipment

    by sea, by air, by express, or as required


    List of spare parts


    Pos.Part NoQtyParts nameComments
    1.7Y-0595[2]SPACER (58X79.6X6-MM THK)
    2.7Y-1056 B[1]SHIM (0.8-MM THK)
    7Y-1057 B[1]SHIM (1-MM THK)
    267-6809 B[1]SHIM (0.75-MM THK)
    267-6810 B[1]SHIM (0.85-MM THK)
    267-6811 B[1]SHIM (0.9-MM THK)
    267-6812 B[1]SHIM (0.95-MM THK)
    267-6813 B[1]SHIM (1.2-MM THK)
    267-6814 B[1]SHIM (1.4-MM THK)
    267-6815 B[1]SHIM (1.8-MM THK)
    267-6816 B[1]SHIM (2-MM THK)
    267-6817 B[1]SHIM (2.3-MM THK)
    4.094-0577 B[1]PLATE (7-MM THK)
    094-0578 B[1]PLATE (8-MM THK)
    094-0579 B[1]PLATE (9-MM THK)
    094-0580 B[1]PLATE (10-MM THK)
    8.114-1541[6]PIN-DOWEL
    9.136-2898[14]WASHER (58.3X89X1-MM THK)
    10.191-2690[6]WASHER (42.3X70X1-MM THK)
    11.227-6192[1]GEAR-COUPLING
    12.255-2272[1]SEAL GP-DUO-CONE
    22.279-0344[2]BEARING AS-TAPERED ROLLER
    23.295-9234[1]SEAL-O-RING
    24.296-6181[1]HOUSING (SPROCKET)
    25.296-6182[1]COVER
    26.296-6183[1]CARRIER-PLANETARY
    27.296-6184[4]GEAR-PLANETARY (21-TEETH)
    28.296-6185[4]SHAFT
    29.296-6186[3]GEAR-PLANETARY (21-TEETH)
    30.296-6189[1]GEAR-SUN (20-TEETH)
    31.296-6190[1]GEAR-SUN (20-TEETH)
    32.296-6192[1]SPACER (143X170X8-MM THK)
    33.296-6194[1]CARRIER-PLANETARY
    34.296-6195[3]SHAFT
    35.296-6230[3]GEAR-PLANETARY (21-TEETH)
    36.296-6231[1]GEAR-SUN (20-TEETH)
    37.296-6232[1]CARRIER AS (PLANETARY)
    38.296-6247[11]BEARING AS-ROLLER
    39.296-6248[3]BEARING AS-ROLLER
    40.296-6311[1]GEAR-RING (64-TEETH)
    41.353-0563[1]HOUSING-MOTOR
    42.093-1731[2]RING-RETAINING (EXTERNAL)
    43.095-0891[7]PIN-SPRING
    44.096-3216 M[2]SETSCREW-SOCKET (M12X1.75X12-MM)
    45.096-8058[3]RING-RETAINING
    46.191-2645[1]COUPLING
    47.3E-2338[2]PLUG-PIPE
    48.6V-8133 M[10]BOLT (M24X3X80-MM)
    49.6V-8237[10]WASHER (26X44X4-MM THK)
    50.7M-8485[2]SEAL-O-RING
    51.7Y-5217 M[30]BOLT-SOCKET HEAD (M20X2.5X70-MM)
    52.8T-4123[30]WASHER (3.62X5.75X0.375-MM THK)
    53.8T-4223[16]WASHER-HARD (13.5X25.5X3-MM THK)
    54.8T-4956 M[16]BOLT (M12X1.75X35-MM)
    1U-8846 BFSEALANT-GASKET
    BUSE AS REQUIRED
    FNOT SHOWN
    MMETRIC PART

    Company Information


    Excavator E336E Hydraulic Travel Gearbox 353-0562


    GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
    Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.

    > Self-improvement
    We will always remain active and positive to be self-improvement with great effort.

    > Integrity
    Belparts holds a belief: have faith in ourselves, have confidence in others. We are faithful and honest to everyone, and to all of our partners.

    > Innovation
    Belparts is committed to bringing in new methods to create innovation in its production.

    > Share
    Belparts is a team, we share difficulties and achievements.


    Factory


    Excavator E336E Hydraulic Travel Gearbox 353-0562

    Product Testing


    Excavator E336E Hydraulic Travel Gearbox 353-0562

    Delivery


    • 1.Outside packing: standard export carton packing;
    • 2.According to orders, pack the spare parts one by one in a small plastic bag;
    • 3.Put them into small carton boxes one by one;
    • 4.Put the packed small carton boxes into bigger carton boxes one by one;
    • 5.Put the bigger carton boxes into wooden boxes if necessary especially for
    • the shipments by sea.

    Hot Production


    Excavator E336E Hydraulic Travel Gearbox 353-0562

    Excavator E336E Hydraulic Travel Gearbox 353-0562
