    Steel E325C Travel Gearbox E329DL 267-6796

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : E325C
    Price : Negotiable Price
    Payment Terms : T/T, Paypal and Trade Assurance
    Supply Ability : 1000pcs
    Delivery Time : 1-7 days
    • Product Details
    • Company Profile

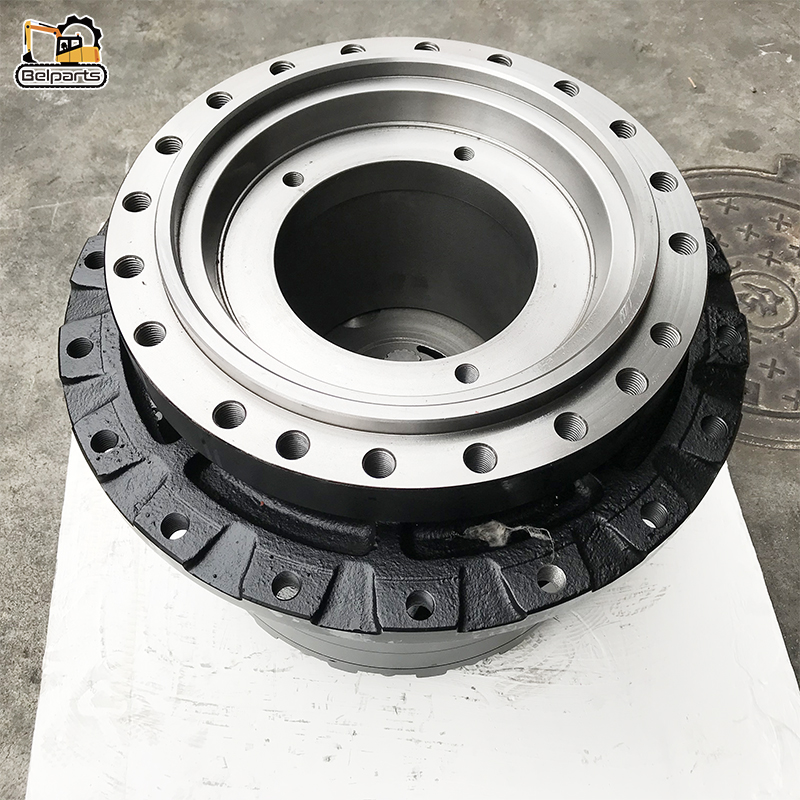

    Steel E325C Travel Gearbox E329DL 267-6796

    Excavator E325C travel gearbox E329DL 267-6796 hydraulic travel reduction


    AppliionExcavator
    Part nameBelparts swing motor
    MaterialSteel
    ModelE325C
    MOQ1PC
    Payment termT/T, Paypal, Trade assurance, or as required
    Delivery2 days after the payment received
    Shipmentby sea, by air, by express, or as required


    List of spare parts


    Pos.Part NoQtyParts nameComments
    1.3E-2338[2]PLUG-PIPE
    2.267-6863 BJ[1]SHIM (0.75-MM THK)
    7Y-0752 BJ[1]SHIM (0.8-MM THK)
    267-6864 BJ[1]SHIM (0.85-MM THK)
    267-6865 BJ[1]SHIM (0.9-MM THK)
    267-6866 BJ[1]SHIM (0.95-MM THK)
    7Y-0753 BJ[1]SHIM (1-MM THK)
    267-6867 BJ[1]SHIM (1.2-MM THK)
    267-6868 BJ[1]SHIM (1.4-MM THK)
    7Y-0754 BJ[1]SHIM (1.6-MM THK)
    267-6869 BJ[1]SHIM (1.8-MM THK)
    267-6870 BJ[1]SHIM (2-MM THK)
    267-6871 BJ[1]SHIM (2.3-MM THK)
    5.094-0578 B[1]PLATE (8-MM THK)
    094-0579 B[1]PLATE (9-MM THK)
    094-0580 B[1]PLATE (10-MM THK)
    8.094-1528[12]WASHER (53X84X1-MM THK)
    9.114-1540 J[4]PIN-DOWEL
    10.168-8452 J[2]BALL BEARING
    11.169-5589[1]GEAR-SUN (24-TEETH)
    12.169-5590[1]GEAR-SUN (24-TEETH)
    13.169-5592[3]GEAR-PLANETARY (23-TEETH)
    14.169-5593[3]GEAR-PLANETARY (23-TEETH)
    15.169-5601[3]SHAFT-PLANETARY
    16.169-5602[3]SHAFT-PLANETARY
    17.171-9387[1]GEAR-RING (64-TEETH)
    18.191-2569[3]BEARING AS (CAGED ROLLER)
    19.191-2570[6]BEARING AS (CAGED ROLLER)
    20.191-2571[1]CARRIER-PLANETARY
    21.191-2676[1]GEAR-RING (72-TEETH)
    22.191-2683[1]GEAR-SUN (20-TEETH)
    23.191-2684[3]GEAR-PLANETARY (21-TEETH)
    24.191-2685[3]BEARING AS
    25.191-2686[1]CARRIER AS
    191-2687[3]RACE-BEARING
    26.191-2689[3]WASHER (34X70X1-MM THK)
    27.191-2690[3]WASHER (42.3X70X1-MM THK)
    28.199-4503[1]COVER
    29.207-1571 J[1]SEAL GP-DUO-CONE
    214-3570[2]RING-TORIC
    30.267-6797 J[1]HOUSING-MOTOR
    31.267-6798 J[1]HOUSING
    32.267-6799[1]CARRIER-PLANETARY
    33.267-6800 J[1]GEAR-COUPLING
    43.093-1731[2]RING-RETAINING
    44.095-0891[6]PIN-SPRING
    45.096-0433[3]RING-RETAINING
    46.096-3216 M[2]SETSCREW-SOCKET (M12X1.75X12-MM)
    47.171-9298[1]SEAL-O-RING
    48.179-8733 M[16]BOLT (M20X2.5X170-MM)
    49.7M-8485[2]SEAL-O-RING
    50.7Y-0595[3]SPACER (58X79.6X6-MM THK)
    51.7Y-5217 JM[16]BOLT-SOCKET HEAD (M20X2.5X70-MM)
    52.8T-3282 J[16]WASHER-HARD (22X35X3.5-MM THK)
    53.8T-4123[16]WASHER (22X35X3.5-MM THK)
    54.9X-6032 M[12]BOLT-SOCKET HEAD (M10X1.5X30-MM)
    55.1U-8846 BSEALANT-GASKET
    AVAILABLE REPAIR KIT(S):
    267-6818 J[1]KIT-FINAL DRIVE BEARING
    BUSE AS REQUIRED
    JKIT MARKED J SERVICES PART(S) MARKED J
    MMETRIC PART
