Material:Steel

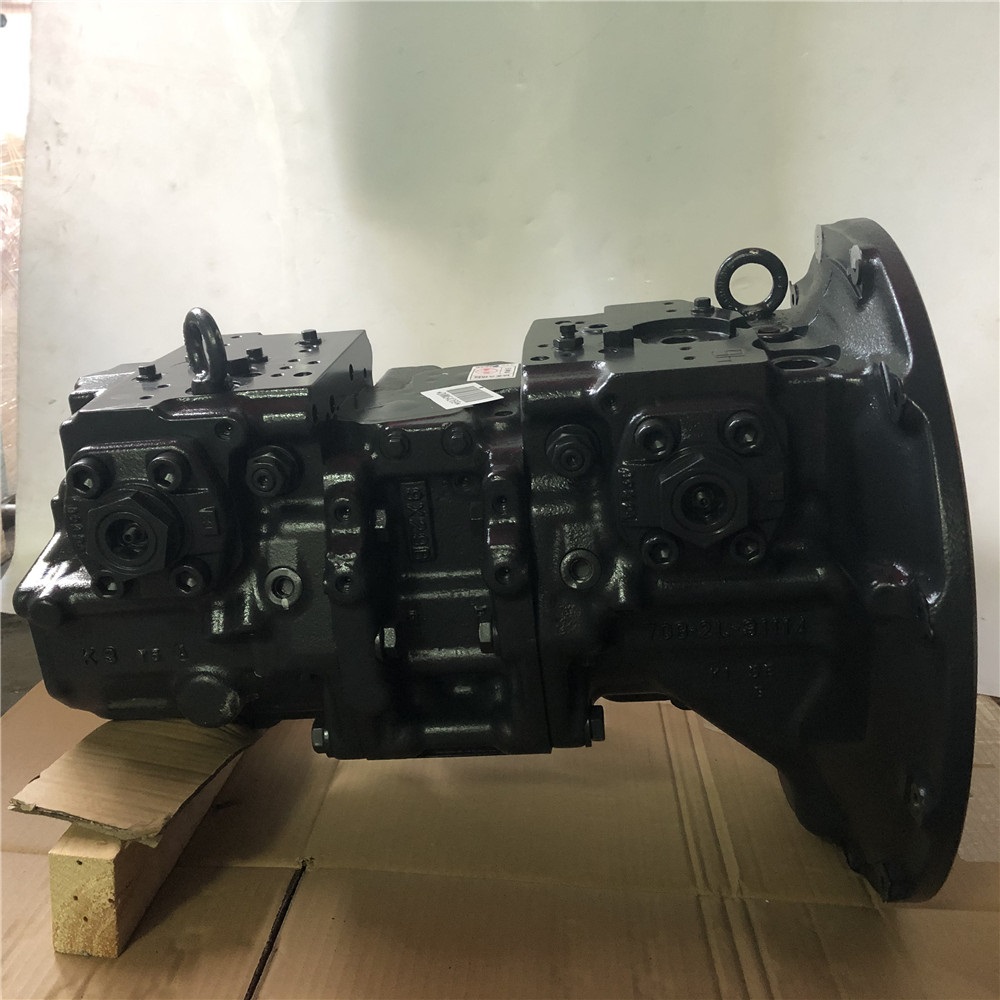

Product Name: Excavator Main Hydraulic Pump
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Dimension(L*W*H):35*51*52
Part number:708-2L-00112
Package Details:Export Wooden Box
Weight:130KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
| Appliion | Excavator |
| Part name | pump hydarulic |
| Part number | 708-2L-00112 |
| Model | pc220 7 pc220-7 pc50 pc35 mr1 pc25 pc160-7 pc95 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 190KG |
| Brand | Belparts |

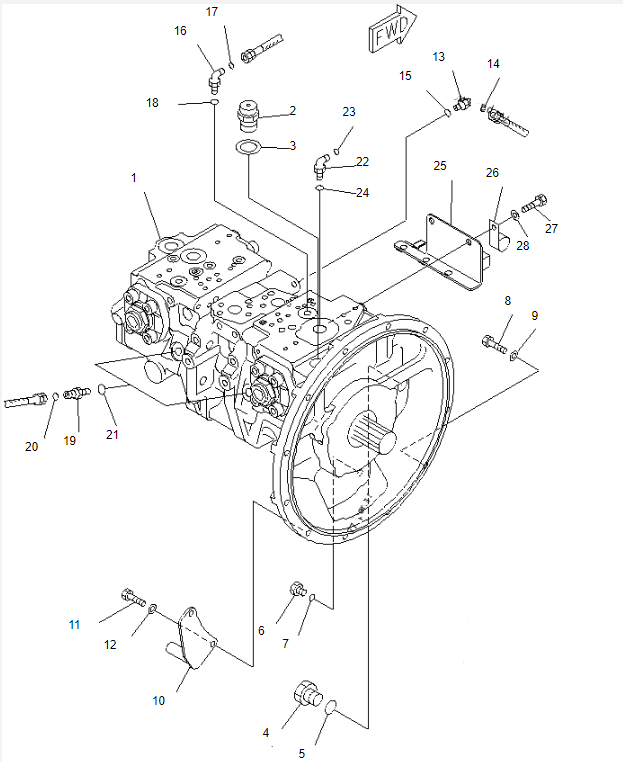

| # | Part No | Part Name | Qty. | Price request |
| 1 | (708-2L-00112) | PUMP ASS'Y | 1 | |
| | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0
Y1600-11A0 | | |
| 1 | (708-2L-01151) | PUMP SUB ASS'Y | 1 | |
| 1 | (*708-2L-32110) | SHAFT,FRONT | 1 | |
| 2 | (*708-2L-32150) | Bearing | 1 | |
| 3 | (*708-2E-05040) | WASHER KIT | 1 | |
| 3 | | WASHER? 3.1MM | 1 | |
| 3 | | WASHER? 3.0MM | 1 | |
| 3 | | WASHER? 2.9MM | 1 | |
| 3 | | WASHER? 2.8MM | 1 | |
| 4 | (*708-25-12790) | RING, SNAP | 1 | |
| 5 | 708-25-52861 | SEAL, OIL | 1 | |
| 6 | 708-2L-22160 | Spacer | 1 | |
| 7 | 04065-06825 | RING,(W/EMERGENCY STEERING) (1M?1D) | 1 | |
| 8 | (*708-2L-06340) | BLOCK ASS'Y,FRONT | 1 | |
| 8 | | BLOCK,CYLINDER | 1 | |
| 9 | | PLATE,VALVE | 1 | |
| 10 | (*720-68-19610) | PIN,DOWEL | 1 | |
| 11 | (*04065-04818) | RING,SNAP | 1 | |
| 12 | (*708-2L-23131) | SEAT | 1 | |
| 13 | (*708-2L-33160) | Spring | 1 | |
| 14 | (*708-7L-13140) | SEAT | 1 | |
| 15 | (*708-2L-23351) | GUIDE,RETAINER | 1 | |
| 16 | (*708-2L-23360) | Pin | 3 | |
| 17 | (*708-2L-33350) | RETAINER,SHOE | 1 | |
| 18 | (*708-2L-33310) | PISTON SUB ASS'Y | 9 | |
| 19 | (*708-2L-06190) | CRADLE ASS'Y | 1 | |
| 19 | | CRADLE | 1 | |
| 20 | | CAM,ROCKER | 1 | |
| 21 | (*04020-01228) | PIN, DOWEL | 1 | |
| 22 | (*01252-61230) | Screw | 4 | |
