    DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : DH55 R60-7
    Price : Negotiable price
    Payment Terms : T/T, Paypal and Trade Assurance
    Supply Ability : 1000pieces
    Delivery Time : 1-7days
    • Product Details
    • Company Profile

    DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975

    Excavator DH55 main relief valve R60-7 XKAY-01975 swing motor relief valve assy​


    Appliion

    Excavator

    Part name

    Excavator relief valve

    Part number

    XKAY-01975

    Model

    DH55 R55 R60-7

    MOQ

    1PC

    Payment term

    T/T, PayPal

    Delivery

    1 day after the payment received

    Shipment

    by sea, by air, by express, or as required

    List of Spare Parts


    Pos.Part NoQtyParts nameComments
    *.31M8-10151[1]SWING MOTOR ASSY*-1, *-2
    *.31M8-10152[1]SWING MOTOR ASSY*-1, *-2
    *-1.31M8-10130[1]SWING MOTOR UNIT
    *-1.31M8-10131[1]SWING MOTOR UNIT
    1.XKAY-00115[1]BODY
    1.XKAY-00694[1]BODY
    1.XKAY-02028[1]BODY
    K2.XKAY-00116[1]SEAL-OIL
    *-11.XKAY-00416[1]ROTARY KIT
    *-11.XKAY-02033[1]ROTARY KIT
    *-111.XKAY-00417[1]CYLINDER BLOCK KIT
    *-111.XKAY-02034[1]CYLINDER BLOCK KIT
    3.XKAY-00158[1]CYLINDER BLOCK
    3.XKAY-02035[1]CYLINDER BLOCK
    8.XKAY-00124[9]SPRING
    16.XKAY-00125[1]PLATE-VALVE
    16.XKAY-02036[1]PLATE-VALVE
    *-112.XKAY-00418[1]RETAINER KIT
    *-112.XKAY-02037[1]RETAINER KIT
    9.XKAY-00160[1]PLATE-SET
    9.XKAY-02038[1]PLATE-SET
    11.XKAY-00129[1]GUIDE-BALL
    *-113.XKAY-00419[1]PISTON KIT
    *-113.XKAY-02039[1]PISTON KIT
    N10.XKAY-00117[9]PISTON SHOE ASSY
    N10.XKAY-02040[9]PISTON SHOE ASSY
    4.XKAY-00120[1]SHAFT
    5.XKAY-00121[1]BEARING-TAPER
    6.XKAY-00122[1]BUSHING
    7.XKAY-00123[1]PLATE-SHOE
    12.XKAY-00118[1]COVER-REAR
    13.XKAY-00131[2]PIN
    K14.XKAY-00420[1]O-RING
    15.XKAY-00133[1]BEARING-TAPER
    *-12.XKAY-00421[2]RELIEF VLV ASSY KIT
    *-12.XKAY-00695[2]RELIEF VLV ASSY KIT
    *-12.XKAY-02029[2]RELIEF VLV ASSY KIT
    17.XKAY-00603[1]RELIEF VALVE ASSY
    17.XKAY-00696[1]RELIEF VALVE ASSY
    17.XKAY-01975[1]RELIEF VALVE ASSY
    K24.XKAY-00141[1]RING-BACK UP
    K25.XKAY-00310[1]O-RING
    K39.XKAY-00423[1]O-RING
    K40.XKAY-00157[1]RING-BACK UP
    18.XKAY-00136[4]BOLT-SOCKET
    19.XKAY-00137[1]PLUG
    20.XKAY-00138[1]PLUG
    K21.XKAY-00267[1]O-RING
    22.XKAY-00139[AR]SHIM
    23.XKAY-00140[3]PLUG
    26.XKAY-00143[1]PLATE-FRICTION
    27.XKAY-00144[1]PLATE
    28.XKAY-00145[1]PISTON-PARKING
    K29.XKAY-00422[2]O-RING
    30.XKAY-00147[18]SPRING
    31.XKAY-00148[1]VALVE-TIME DELAY
    32.XKAY-00149[3]BOLT-WRENCH
    33.XKAY-00150[2]PLUG
    K34.XKAY-00256[2]O-RING
    35.XKAY-00152[2]VALVE
    36.XKAY-00153[2]SPRING
    37.XKAY-00154[2]PLUG
    K38.XKAY-00247[2]O-RING
    41.XKAY-00127[1]NAME PLATE
    41.XKAY-02030[1]NAME PLATE
    42.XKAY-00159[2]RIVET
    *-2.@[2]SWING REDUCTION GEARSEE 4220
    K.XKAY-00414[1]SEAL KITSEE ILLUST
    N.@[AR]NOT SUPPLIED PARTS

    Company Description


    DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975

    DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975

    GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
    procuring and selling excavator parts.
    Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products
    have been exported to more than 100 countries and regions.

    Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products
    have been exported to more than 100 countries and regions.


    Factory


    DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975

    Delivery&Logistics


    DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975

    DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975

    • 1. Commodities will be sent to all the countries all over the world.

    • 2. Please make sure that your address and contact information is correct.

    • 3. Products will be carefully checked before shipment.

    • 4. Generally, items will be shipped 2 working days after the payment is received.

    • Should any delay happen due to logistic company and local customers or duties, we will inform via message or email immediately and your understanding will be highly appreciated.

    • 5. The buyers are supposed to be charged for the possible additional cost such as taxes and customs duties.

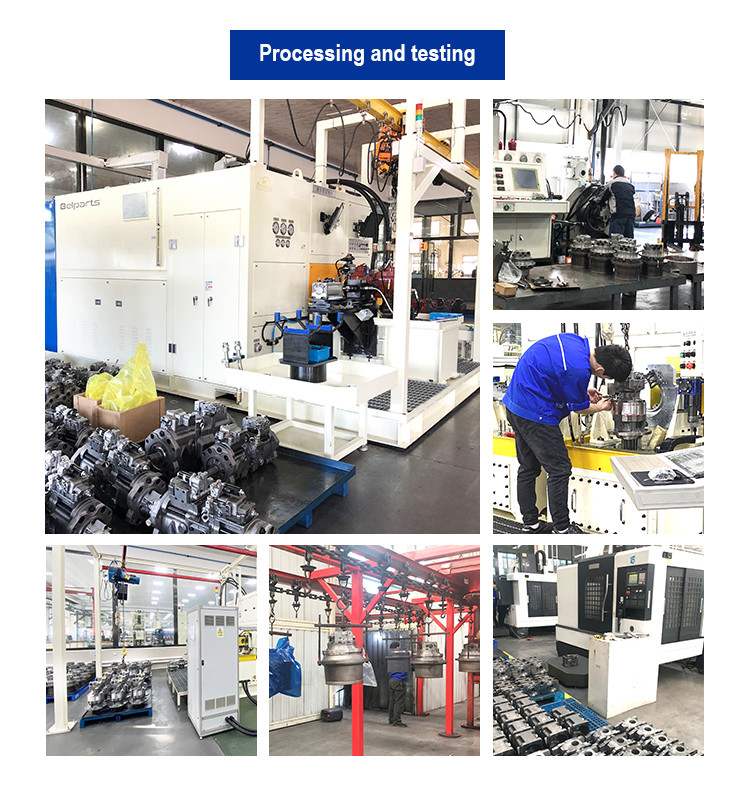

    Processing&Testing


    DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975


    Customer Evaluation


    DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975


    Hot Products



    DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975DH55 R60-7 Hydraulic Pressure Relief Valve XKAY-01975


    FAQ


    • Q: What are your terms of packing?

    • A: Generally, we pack our goods in neutral wooden cartons. If you have a legally registered patent,

    • we can pack the goods in your branded boxes after getting your authorization letters.

    • Q: What about the payment options?

    • A: PayPal, T/T, and other payments as request.

    • Q: What are your terms of delivery?

    • A: EXW, FOB, CFR, CIF, etc.

    • Q: How about your delivery time?

    • A: Generally, it will take 3 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    • Q: When can I get the price?

    • A: We usually quote within 12 hours after we get your inquiry. If urgent to get the price,

    • please call us or tell us by email, we will regard your inquiry priority.

    • Q: How do you make our business a long-term and good relationship?

    • A: 1. We keep good quality and competitive price to ensure our customers benefit ;

    • 2. We respect every customer as our friend and we sincerely do business and make friends with them,

    • no matter where they come from.

    • Q: Do you test all your goods before delivery?

    • A: Yes, we have a 100% test before delivery.
