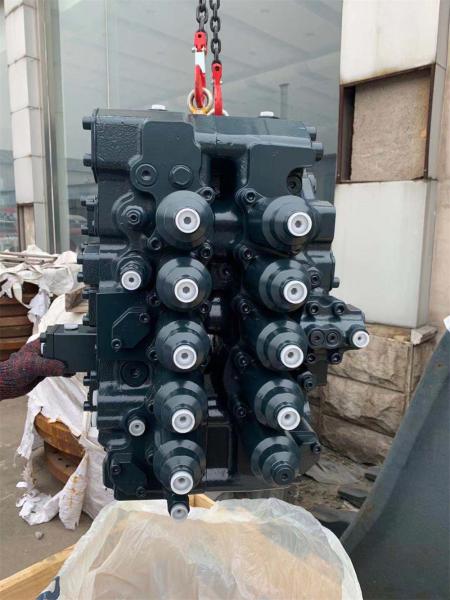

R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve

GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve from wholesalers

    Buy cheap R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve from wholesalers
    • Buy cheap R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve from wholesalers
    • Buy cheap R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve from wholesalers
    • Buy cheap R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve from wholesalers
    • Buy cheap R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve from wholesalers
    • Buy cheap R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve from wholesalers

    R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : R520-9
    Price : Negotiated price
    Payment Terms : T/T, trade assurance,PayPal
    Supply Ability : 1000PCS
    Delivery Time : 1~3 days
    MOQ : 1PCS
    • Product Details
    • Company Profile

    R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve

    R520-9 Excavator Hydraulic Control Valve for hyundai 31QB-17100 Main Control Valve

    Product Description


    Part number
    31QB-17100
    Type Model
    main Control Valve
    Machine modelR520-9
    Apply forCrawler excavator
    Weight230KG
    MOQ
    1PCS
    Warranty
    6-12 Months

    Parts on group MAIN CONTROL VALVE (1/3, TYPE 2,3):

    Pos.Part NoQtyParts nameComments
    *.31QB-17000[1]MAIN CONTROL VALVETYPE 2
    *.31QB-17100[1]MAIN CONTROL VALVETYPE 3
    12. 31QB-17720[1]SPOOL KIT-BYPASS CUT1
    15.31QB-17810[1]ARM REGEN CUT ASSYTYPE 2
    15.31QA-17811[1]ARM REGEN CUT ASSYTYPE 3
    17.31QB-17740[1]PORT RELIEF VALVE
    17. 31QB-17740K[1]PORT RELIEF VALVE
    18.31QB-17750[1]PORT RELIEF VALVE
    18. 31QB-17750K[1]PORT RELIEF VALVE
    19.31QB-17760[4]PORT RELIEF VALVE
    19. 31QB-17760K[4]PORT RELIEF VALVE
    20.31QB-17780[1]PORT RELIEF VALVE
    20. 31QB-17780K[1]PORT RELIEF VALVE ASSY
    21.31QB-17790[1]PORT RELIEF VALVE
    22.31QB-17800[2]RELIEF VALVE-NEGACON
    24.31QB-17930[2]PLUG ASSY-BY PASS
    25.31QB-17940[1]PLUG
    26.31QB-17920[1]PLUG
    27.31N8-17550[1]PLUG
    28.31N4-18090[5]PLUG
    29.31N8-17500[11]PLUG
    30.31N4-18080[5]PLUG
    31.31N8-17540[1]PLUG
    41.31QB-18660[1]POPPET
    43.31QB-18680[1]POPPET
    46.31QB-18240[2]SPRING
    49.31QB-18720[1]SPRING
    50.31QB-18730[1]SPRING
    51.31N8-18680[1]PLUG
    55.S631-022004[4]O-RING
    56.S631-010004[3]O-RING
    57.S631-030004[10]O-RING
    61. S109-201806[10]BOLT-SOCKET
    65. S109-120206[4]BOLT-SOCKET
    66. S107-120154[16]BOLT-SOCKET
    67. S107-100154[12]BOLT-SOCKET
    68.31QB-18360[2]SPRING SEAT-BC
    70.31N8-19460[5]CAP-DUST
    73. 31QB-19620[4]COVER 1-1/4
    74.31QB-19630[4]GASKET 1-1/4
    75. 31QB-19640[3]COVER 1
    76.31QB-19650[3]GASKET 1

    R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control ValveR520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve


    FAQ:


    1.What is the warranty time of the products?
    The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
    2.What is your delivery time?
    Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 1-7 days.
    3.What are your main products ?
    We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
    4.How can I do if there is something wrong with the goods?
    First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
    5.How do I pay?
    You can pay by T/T,PayPal (for small amount) and trade assurance.
