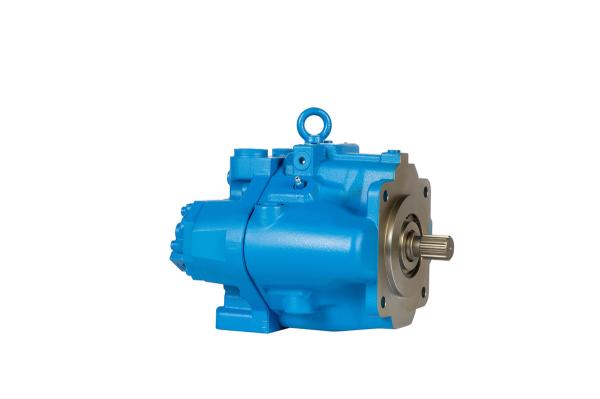

Belparts excavator main pump R80-7 R80-7A R75-7 hydraulic pump 31N1-10010 XJDH-01739 for hyundai

Ask Lasest Price
Brand Name :	Belparts
Model Number :	R80-7 R80-7A R75-7
Price :	Negotiated price
Payment Terms :	T/T, trade assurance,PayPal
Supply Ability :	1000PCS
Delivery Time :	1~7 days

Add to Cart

Product Details
Company Profile

Belparts excavator main pump R80-7 R80-7A R75-7 hydraulic pump 31N1-10010 XJDH-01739 for hyundai

Belparts excavator main pump R80-7 R80-7A R75-7 hydraulic pump 31N1-10010 XJDH-01739 for hyundai

Product Description

Product name	Excavator Hydraulic pump
Place of Origin:	China(mainland)
Model:	R80-7 R80-7A R75-7
Part number:	31N1-10010 XJDH-01739
MOQ:	1 PCS
Payment term:	T/T, trade assurance,PayPal
Delivery time:	Within 1~7 days after receiving the payment
Packing:	Standard exporting packing or as required

#	Part No	Part Name	Qty.	Price request
*	31N1-10010	MAIN PUMP	1
1	XJDD-00002	SHAFT ASSY	1
1-1	XJDD-00024	SHAFT	1
1-2	XJDD-00025	RETAINER-SEAL	1
1-3	XJDD-00026	BEARING	1
1-4	XJDD-00027	RING-RETAINING	2
1-5	XJDD-00028	SEAL-OIL	1
1-6	XJDD-00029	O-RING	1
1-7	XJDD-00030	RING-RETAINING	1
2	XJDD-00003	SWASH PLATE ASSY	1
2-1	XJDD-00031	HANGER	1
2-2	XJDD-00032	GUIDE	1
2-4	XJDD-00033	GUIDE	1
2-6	XJDD-00034	O-RING	1
2-7	XJDD-00035	RING-BACK UP	1
2-8	XJDD-00036	PLUG	2
2-9	XJDD-00037	PIN	1
2-10	XJDD-00038	BUSHING	1
3	XJDD-00004	ROTARY GROUP	1
3-1	XJDD-00039	PISTON	10
3-2	XJDD-00040	BLOCK-CYLINDER	1
3-3	XJDD-00041	RETAINER	1
3-5	XJDD-00042	GUIDE	1
3-6	XJDD-00043	SPRING	1
3-7	XJDD-00044	PIN-PARALLEL	3
3-8	XJDD-00045	SPACER-SPRING	2
3-9	XJDD-00046	RING-RETAINING	1
5	XJDD-00006	CONTROL SPRING ASSY	1
5-1	XJDD-00056	SPACER-SPRING	1
5-2	XJDD-00057	SPACER-SPRING	1
5-3	XJDD-00058	COVER	1
5-4	XJDD-00059	SCREW-ADJUST	1
5-5	XJDD-00060	SPRING	1
5-6	XJDD-00061	SPRING	1
5-7	XJDD-00062	O-RING	1
5-8	XJDD-00063	BOLT	2
5-9	XJDD-00064	NUT	1
5-10	XJDD-00065	GUIDE	1
5-34	XJDD-00066	SHIM(0.3T)	2
5-44	XJDD-00067	SHIM(0.5T)	2
5-54	XJDD-00068	SHIM(1.0T)	2
6	XJDD-00007	CONTROL SPRING ASSY	1
6-1	XJDD-00069	CYLINDER	1
6-2	XJDD-00070	PISTON	1
6-3	XJDD-00071	PISTON	1
6-4	XJDD-00072	SPRING-PLATE	4
6-5	XJDD-00073	SPACER	1
6-6	XJDD-00074	SPACER	1
6-7	XJDD-00075	SPACER	1
6-8	XJDD-00076	SPACER	1
8	XJDD-00009	HOUSING	1
9	XJDD-00010	VALVE-AIR VENT	1
10	XJDD-00011	BUSHING	1
11	XJDD-00012	BALL-STEEL	1
12	XJDD-00013	PLUG	1
13	XJDD-00014	PLUG	1
14	XJDD-00015	PACKING	1
15	XJDD-00016	SHIM	1
16	XJDD-00017	PLUG	1
17	XJDD-00018	NAME PLATE ASSY	1
19	XJDD-00020	PLUG	1
22	XJDD-00021	PLUG ASSY	1
23	XJDD-00022	ORIFICE	1
25	1800174537		2

Model	Nominal displacement (ml/r)	Pressure(MPa)		Speed(r/min)		Volumetric efficiency (≥%)					Bidirectional motor		L1	L	Weight (kg)
		Rated	Max	Optimums peed	Speed range		Inlet		Outlet		/ Inlet/Outlet
							D	d	D	d	D	d
CMW-F204-C***	4	20	25	1500 2500	800 3000	90	8	35	10	40	10	35	85.5	131.5	3.7
CMW-F206-C***	6						10		15				87	134	3.8
CMW-F208-C***	8										15		88.8	137.5	3.9
CMW-F211-C***	11						15		18				91.2	142.5	4.0
CMW-F212.5-C****	12.5								20				92.8	145.5	4.1
CMW-F216-C***	16												95.5	151	4.2

Model	Nominal displacement (ml/r)	Pressure(MPa)		Speed(r/min)		Volumetric efficiency (≥%)					Bidirectional motor		L1	L	Weight (kg)
		Rated	Max	Optimums peed	Speed range		Inlet		Outlet		/ Inlet/Outlet
							D	d	D	d	D	d
CMW3-F204-C1***	04	20	25	1500 2500	800 3000	90	8	35	10	40	10	35	40.3	87	2.7
CMW3-F206-C1*	06						10		15				41.5	89.5	2.8
CMW3-F208-C1* ★★	08										15		42.3	93	2.9
CMW3-F211-C1**	11						15		18				44	98	3
CMW3-F212.5-C1★★★	12.5								20				46.3	101	3.1
CMW3-F216-C1	16												49	107	3.2
CMW3-F220-C1***	20												53.5	114	3.3
