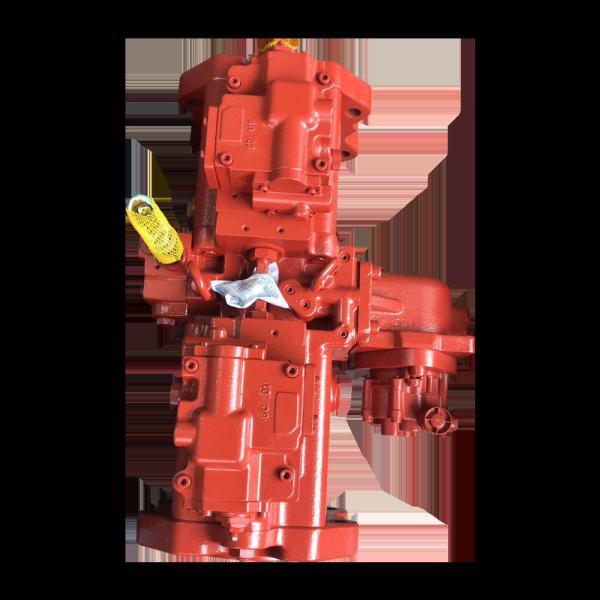

    Belparts excavator main pump R360LC-7 R360LC-9 hydraulic pump 31NA-10010 31NA-10030 31QA-10010 for hyundai

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : R360LC-7 R360LC-9
    Price : Negotiated price
    Payment Terms : T/T, trade assurance,PayPal
    Supply Ability : 1000PCS
    Delivery Time : 1~7 days
    • Product Details
    • Company Profile

    Belparts excavator main pump R360LC-7 R360LC-9 hydraulic pump 31NA-10010 31NA-10030 31QA-10010 for hyundai

    Belparts excavator main pump R360LC-7 R360LC-9 hydraulic pump 31NA-10010 31NA-10030 31QA-10010 for hyundai


    Product Description

    Product nameExcavator Hydraulic pump
    Place of Origin:China(mainland)
    Model:R360LC-7 R360LC-9
    Part number:31NA-10010 31NA-10030 31QA-10010
    MOQ:1 PCS
    Payment term:T/T, trade assurance,PayPal
    Delivery time:Within 1~7 days after receiving the payment
    Packing:Standard exporting packing or as required

    #Part NoPart NameQty.Price request
    *31NA-10010MAIN PUMP
    *-1,-2,-3,-4,-5    		1 
    *-1@FUEL INJECTION PIPE & NOZZLE1 
    S012XJBN-00567BLOCK-CYLINDER
    2953802067    		2 
    111XJBN-00574SHAFT-DRIVE(F)
    2933801244    		1 
    113XJBN-00573SHAFT-DRIVE(R)
    2924250-0008    		1 
    114XJBN-00572COUPLING-SPLINE
    2943800613    		1 
    123XJBN-00571BEARING-ROLLER
    PNUP309ET    		2 
    124XJBN-00570BEARING-NEEDLE
    PRNA6932R    		2 
    127XJBN-00569SPACER-BEARING
    2903370-0018    		3 
    130XJBN-00568BOOSTER
    2933800926    		1 
    S151XJBN-00566PISTON
    38B00-151    		18 
    S152XJBN-00565SHOE
    38B00-152    		18 
    153XJBN-00020PLATE-SET
    2943800488    		2 
    156XJBN-00564BUSHING-SPHERICAL2 
    157XJBN-00541SPRING-CYLINDER
    2953802061    		18 
    211XJBN-00023PLATE-SHOE
    371A00AA-124    		2 
    S212XJBN-00012PLATE-SWASH
    2923800908    		2 
    S214XJBN-00013BUSHING-TILTING
    P1R222616    		2 
    251XJBN-00560SUPPORT-S.P.
    2923800906    		2 
    261XJBN-00025COVER(FR)-SEAL
    2943800518    		1 
    271XJBN-00026CASING-PUMP
    2923800904    		2 
    311XJBN-00559COVER-VALVE(F)
    2923801932    		1 
    312XJBN-00558COVER-VALVE(R)
    2923801934    		1 
    S313XJBN-00557PLATE-VALVE(R)
    2933801022    		1 
    S314XJBN-00556PLATE-VALVE(L)
    2933801023    		1 
    401XJBN-00028SCREW
    2953801868    		4 
    402XJBN-00555SCREW-HEX SOC HD
    2953802438    		4 
    406XJBN-00355SCREW-HEX SOC HD
    OSBM820    		4 
    466XJBN-00356PLUG
    OVP14    		4 
    468XJBN-00357PLUG
    OVP34    		4 
    490XJBN-00032PLUG
    PBP116-2403    		28 
    492XJBN-00234PLUG
    VZ50101400    		1 
    S531XJBN-00369PIN-TILTING
    2943800502    		2 
    S548XJBN-00360PIN-FEED BACK
    2953802202    		2 
    532XJBN-00033PISTON-SERVO
    2943800503    		2 
    534XJBN-00034STOPPER(L)
    2953801865    		2 
    535XJBN-00035STOPPER(S)
    2953801864    		2 
    702XJBN-00040O-RING2 
    706XJBN-00554O-RING1 
    710XJBN-00041O-RING1 
    717XJBN-00042O-RING
    PCPP170    		2 
    719XJBN-00043O-RING
    PCPP165    		3 
    724XJBN-00361O-RING
    OORBP8    		15 
    725XJBN-00362O-RING
    OORBP11    		10 
    728XJBN-00363O-RING
    OORBP24    		4 
    732XJBN-00047O-RING2 
    774XJBN-00906SEAL-OIL
    P15Z557812F    		1 
    789XJBN-00049RING-BACK UP
    PT2SP21    		2 
    792XJBN-00050RING-BACK UP
    PT2SG40    		2 
    808XJBN-00364NUT
    ORNM20    		4 
    824XJBN-00052RING-SNAP
    0SR45    		2 
    885XJBN-00053PIN-2
    PJR1014    		2 
    886XJBN-00365PIN-SPRING
    OSPV614    		5 
    901XJBN-00055BOLT-EYE2 
    953XJBN-00056SCREW-SET
    PSSSM2035    		2 
    954XJBN-00553SCREW-SET
    2933300-0017    		2 
    981XJBN-00391NAME PLATE
    PNPA-2550A    		1 
    983XJBN-00341PIN
    OSK2548    		2 
    *-2XJBN-00575REGULATOR-FRONT1 
    *-3XJBN-00590REGULATOR-REAR1 
    *-4XJBN-00520GEAR PUMP1 
    S011XJBN-00563PISTON ASSY
    3853802466,ILL    		2 
    S013XJBN-00562CYLINDER ASSY-RH
    2953802226,ILL    		1 
    S014XJBN-00561CYLINDER ASSY-LH
    2953802227,ILL    		1 
    S030XJBN-00011SWASH PLATE ASSY
    2953801991,ILL    		2 
    S530XJBN-00371TILTING PIN ASSY
    2953801988,ILL    		2 


    Model
    Nominal
    displacement
    (ml/r)    		Pressure(MPa)Speed(r/min)
    Volumetric
    efficiency
    (≥%)    		L1
    Weight
    (kg)

    Rated
    Max
    Min.
    Rated
    Max
    CBXM-F10-AT**102025800200025009272921.9
    CBXM-F16.8-AT**16.880.5100.52.2
    CBXM-F2O-AT**2084.5104.52.3

    ModelNominal
    displacement
    (ml/r)    		Pressure(MPa)Speed(r/min)
    Volumetric
    efficiency
    (≥%)    		L1L2L
    Weight
    (kg)
    RatedMaxOptimum
    speed    		Speed
    range
    CBXZ-C10-K3V63DTP103.551500~2500800~2800905255.5681.9
    CBXZ-C12-K3V63DTP1264.56872.52.3
    CBXZ-C13-K3V63DTP158589932.7


    Company Information

    GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
    procuring and selling excavator parts.Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.
