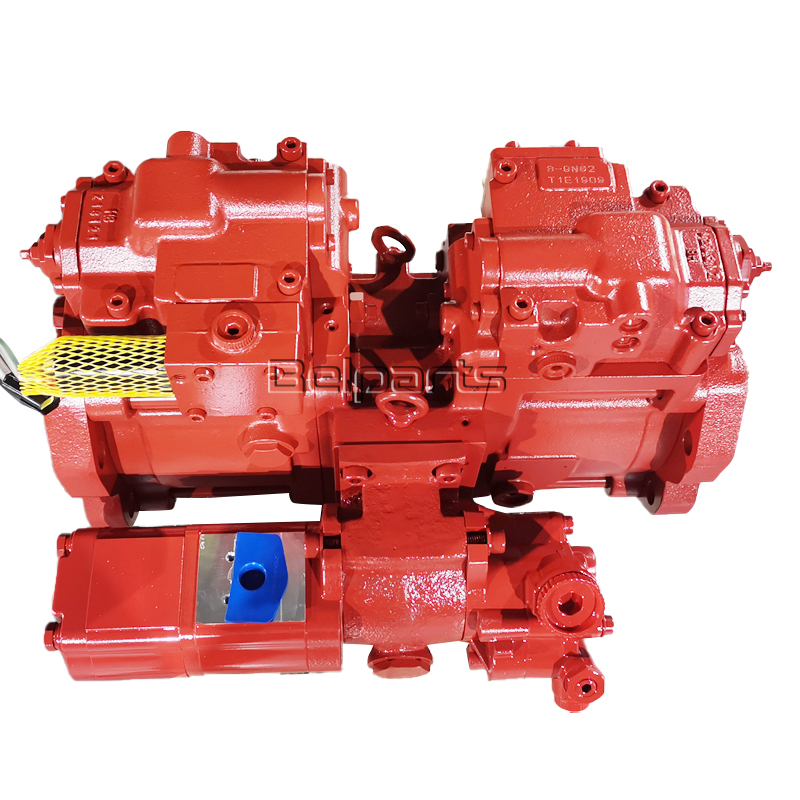

Belparts excavator main pump R145CR-9 hydraulic pump 31N4-10050 for hyundai

Ask Lasest Price
Brand Name :	Belparts
Model Number :	R145CR-9
Price :	Negotiated price
Payment Terms :	T/T, trade assurance,PayPal
Supply Ability :	1000PCS
Delivery Time :	1~7 days

Add to Cart

Product Details
Company Profile

Belparts excavator main pump R145CR-9 hydraulic pump 31N4-10050 for hyundai

Belparts excavator main pump R145CR-9 hydraulic pump 31N4-10050 for hyundai

Product Description

Product name	Excavator Hydraulic pump
Place of Origin:	China(mainland)
Model:	R145CR-9
Part number:	31N4-10050
MOQ:	1 PCS
Payment term:	T/T, trade assurance,PayPal
Delivery time:	Within 1~7 days after receiving the payment
Packing:	Standard exporting packing or as required

#	Part No	Part Name	Qty.	Price request
*	31N4-10050	MAIN PUMP WITH PTO	1
*-1	@	FUEL INJECTION PIPE & NOZZLE	1
111	XJBN-01432	SHAFT(F)-DRIVE	1
113	XJBN-01433	SHAFT(R)-DRIVE	1
116	XJBN-01434	GEAR-1ST	1
123	XJBN-01435	BEARING-ROLLER	2
124	XJBN-01436	BEARING-NEEDLE	2
127	XJBN-00806	SPACER-BEARING	2
S141	XJBN-01437	BLOCK-CYLINDER	2
S151	XJBN-01438	PISTON	18
S152	XJBN-01278	SHOE	18
153	XJBN-01439	PLATE-SET	2
156	XJBN-01440	BUSHING-SPHERICAL	2
157	XJBN-00084	SPRING-CYLINDER	12
211	XJBN-01441	PLATE-SHOE	2
S212	XJBN-01442	PLATE-SWASH	2
S214	XJBN-00418	BUSHING-TILTING	2
N251	XJBN-01602	SUPPORT	2
S255	XJBN-01603	PIN-LOCK	2
261	XJBN-01445	COVER(F)-SEAL	1
263	XJBN-01446	COVER(R)-SEAL	1
N271	XJBN-01604	CASING-FRONT PUMP	1
N272	XJBN-01605	CASING-REAR PUMP	1
312	XJBN-01449	BLOCK-VALVE	1
S313	XJBN-01450	PLATE(R)-VALVE	1
S314	XJBN-01451	PLATE(L)-VALVE	1
401	XJBN-01452	SCREW	2
402	XJBN-01453	SCREW	2
406	XJBN-00813	SCREW-HEX S H C	4
415	XJBN-00029	SCREW-HEX	4
466	XJBN-00749	PLUG	2
467	XJBN-00814	PLUG	2
468	XJBN-01219	PLUG	4
490	XJBN-00032	PLUG	9
S531	XJBN-01458	PIN-TILTING	2
532	XJBN-01459	PISTON-SERVO	2
S533	XJBN-01460	PLUG-QMIN	2
534	XJBN-00816	STOPPER(L)	2
S535	XJBN-01461	STOPPER(S)	2
S548	XJBN-00360	PIN-FEED BACK	2
702	XJBN-00817	O-RING	2
710	XJBN-01456	O-RING	1
711	XJBN-00900	O-RING	1
717	XJBN-01457	O-RING	2
723	XJBN-00903	O-RING	6
724	XJBN-00902	O-RING	12
727	XJBN-00912	O-RING	4
S728	XJBN-01606	O-RING	2
S732	XJBN-01462	O-RING	4
S733	XJBN-01463	O-RING	2
734	XJBN-00899	O-RING	1
774	XJBN-01579	OIL SEAL	1
S789	XJBN-01464	RING-BACK UP	2
792	XJBN-00454	RING BACK-UP	2
S806	XJBN-01465	NUT-HEX	2
808	XJBN-00101	NUT-HEX	2
824	XJBN-00821	RING-SNAP	2
886	XJBN-00054	PIN-SPRING	4
901	XJBN-00104	BOLT-EYE	2
S953	XJBN-01467	SCREW-SET	2
954	XJBN-00392	SCREW-SET	2
981	XJBN-00156	NAME PLATE	1
983	XJBN-00455	PIN	2
5	XJBN-01609	PTO ASSY	2
5-1	XJBN-00160	SCREW-SOCKET	2
5-2	XJBN-00725	SOCKET-FLANGE	4
5-3	XJBN-00031	PLUG	1
5-4	XJBN-00387	O-RING	1
5-5	XJBN-00046	O-RING	1
5-6	XJBN-01023	PIN-SPRING	1
*-3	@	FUEL INJECTION PIPE & NOZZLE SEE 4030	1
*-2	@	FUEL INJECTION PIPE & NOZZLE SEE 4020	2
011	XJBN-01424	PISTON SUB ASSY SEE ILLUST	2
013	XJBN-01425	CYLINDER SUB ASSY-RH SEE ILLUST	1
014	XJBN-01426	CYLINDER SUB ASSY-LH SEE ILLUST	1
030	XJBN-01427	SWASH PLATE SUB ASSY SEE ILLUST	2
257	XJBN-01607	LOCK PIN SUB ASSY SEE ILLUST	2
530	XJBN-01430	TILTING PIN SUB ASSY SEE ILLUST	2
550	XJBN-01431	QMIN PLUG SUB ASSY SEE ILLUST	2
N	@	FUEL INJECTION PIPE & NOZZLE	AR

Model	Nominal displacement(ml/r)	Pressure(MPa)		Speed(r/min)		Volumetric efficiency(≥%)	L1	L	Weight (kg)
Model	Nominal displacement(ml/r)	Rated	Max	Optimum speed	Speed range	Volumetric efficiency(≥%)	L1	L	Weight (kg)
CMF-F306-AL**	06	20	25	1500~2500	800~3000	90	89	138.5	4
CMF-F308-AL**	08						90.3	141	4.4
CMF-F310-AL**	10						92	144	4.2
CMF-F316-AL**	16						97	154	4.3
CMF-F320-AL**	20						100.5	161	4.4
CMF-F325-AL**	25						105	170	4.5

Company Information

GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
procuring and selling excavator parts.Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.
