Belparts excavator main pump R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9 hydraulic pump 31Q6-10010 31N6-17010 31Q6-10100

Ask Lasest Price
Brand Name :	Belparts
Model Number :	R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9
Price :	Negotiated price
Payment Terms :	T/T, trade assurance,PayPal
Supply Ability :	1000PCS
Delivery Time :	1~7 days

Add to Cart

Product Details
Company Profile

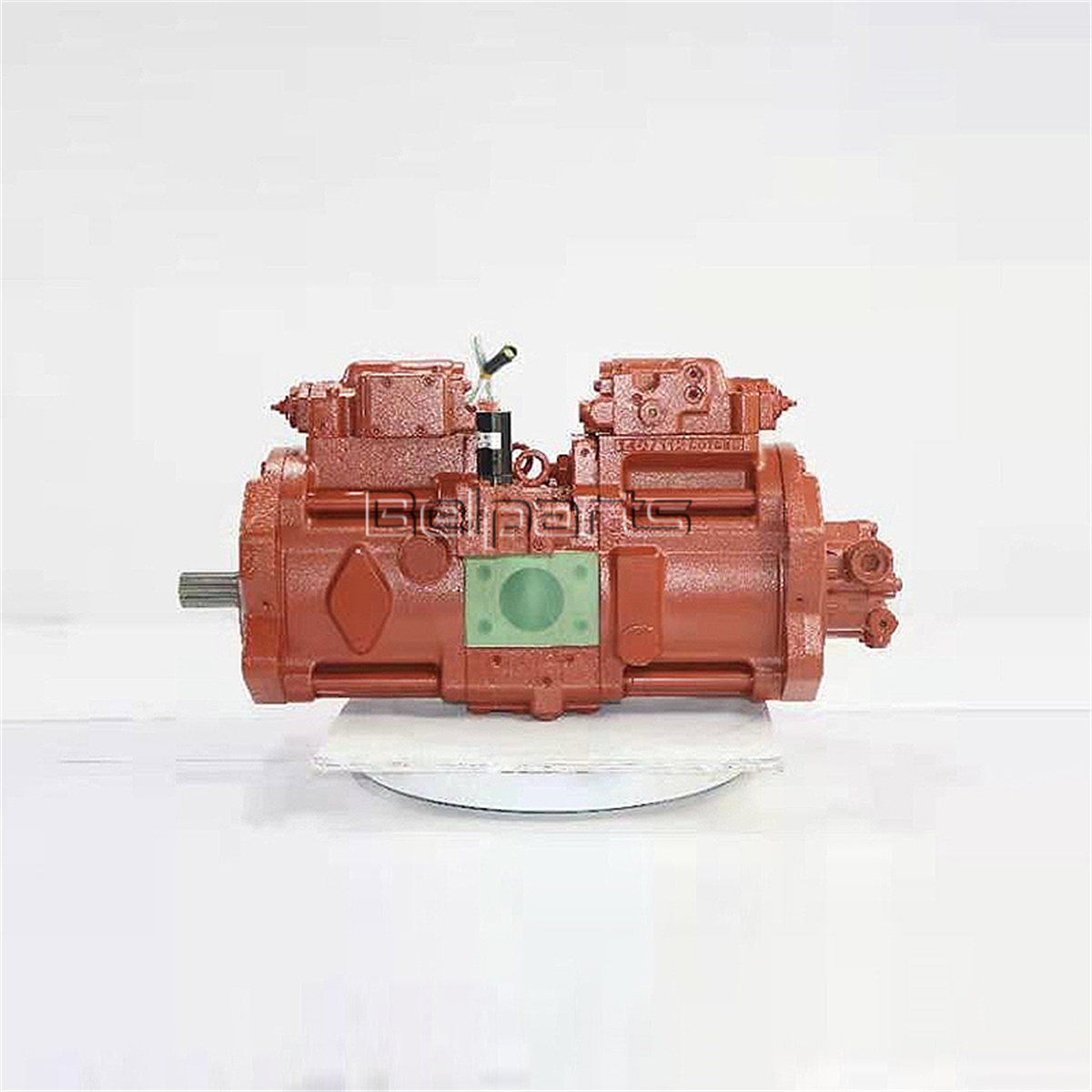

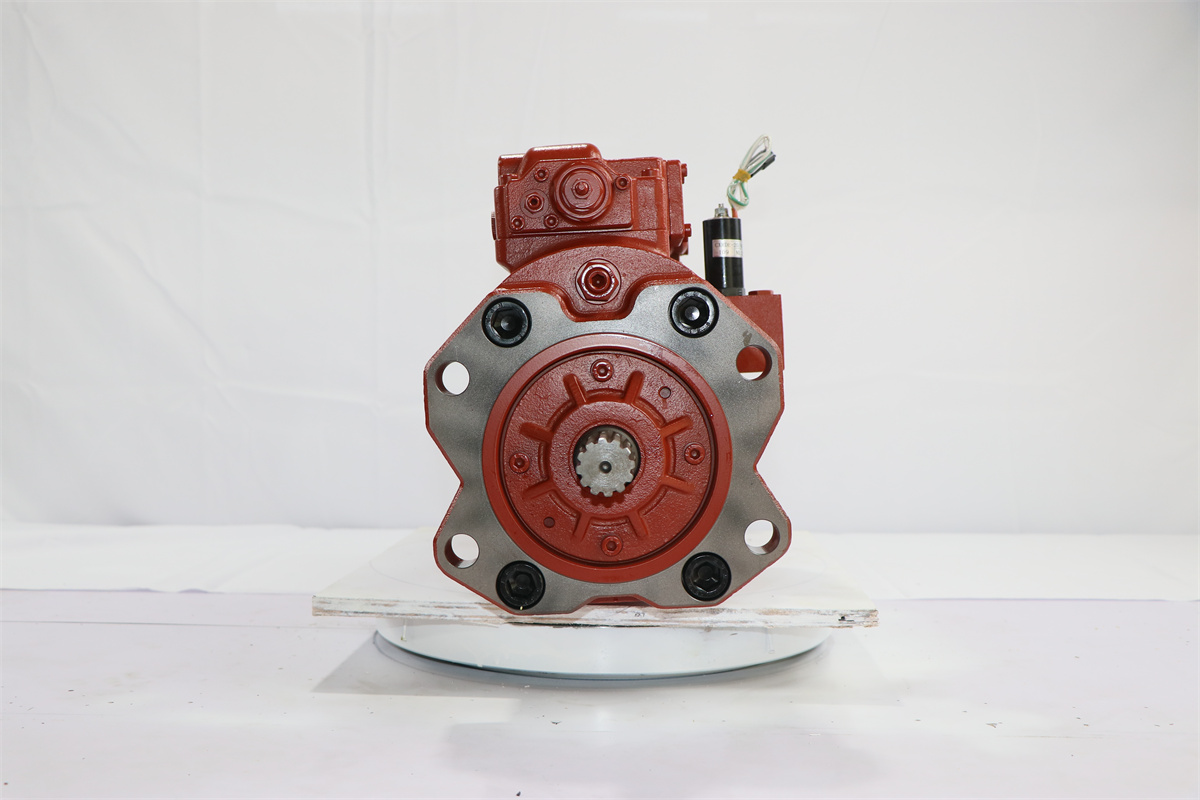

Belparts excavator main pump R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9 hydraulic pump 31Q6-10010 31N6-17010 31Q6-10100

Belparts excavator main pump R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9 hydraulic pump 31Q6-10010 31N6-17010 31Q6-10100

Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9
Part number:31Q6-10010 31N6-17010 31Q6-10100
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require

Appliion	Crawler excavator
Part name	Hydraulic Main Pump
Model	R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9
Part number	31Q6-10010 31N6-17010 31Q6-10100
Warranty	3-12 months
Payment term	T/T, Trade Assurance, Paypal and etc.
Brand	hyundai or as require

#	Part No	Part Name	Qty.	Price request
*	31Q6-10010	MAIN PUMP *-1,-2,-3,-4	1
*-1	@	FUEL INJECTION PIPE & NOZZLE	1
111	XJBN-00077	DRIVE SHAFT(F)	1
113	XJBN-00078	DRIVE SHAFT(R)	1
116	XJBN-01213	GEAR-1ST	1
123	XJBN-00950	BEARING-ROLLER	2
127	XJBN-00081	SPACER-BEARING	4
NS141	XJBN-00067	BLOCK-CYLINDER	2
NS151	XJBN-01032	PISTON	18
NS152	XJBN-01214	SHOE	18
153	XJBN-00945	PLATE-SET	2
156	XJBN-00083	BUSHING-SPHERICAL	2
157	XJBN-00084	SPRING-CYLINDER	18
211	XJBN-00085	PLATE-SHOE	2
NS212	XJBN-00070	PLATE-SWASH	2
S214	XJBN-00071	BUSHING-TILTING	2
251	XJBN-00086	SUPPORT	2
261	XJBN-00087	COVER(F)-SEAL	1
271	XJBN-01034	CASING-PUMP	2
312	XJBN-00940	BLOCK-VALVE	1
NS313	XJBN-01035	PLATE-VALVE(R)	1
NS314	XJBN-01036	PLATE-VALVE(L)	1
326	XJBN-00937	COVER	1
401	XJBN-00090	SCREW-HEX SOC HD	8
406	XJBN-00355	SCREW-HEX SOC HD	4
414	XJBN-00160	SCREW-SOCKET	4
466	XJBN-00356	PLUG	2
467	XJBN-00936	PLUG	2
468	XJBN-00357	PLUG	4
490	XJBN-00032	PLUG	27
NS531	XJBN-00358	PIN-TILTING	2
532	XJBN-00955	PISTON-SERVO	2
534	XJBN-01037	STOPPER(L)	2
535	XJBN-00093	STOPPER(S)	2
NS541	XJBN-00859	SEAT	4
NS543	XJBN-00860	STOPPER	2
NS544	XJBN-00861	STOPPER	2
S545	XJBN-00359	BALL-STEEL	4
NS548	XJBN-00360	PIN-FEED BACK	2
702	XJBN-00918	O-RING	2
710	XJBN-00095	O-RING	2
717	XJBN-00096	O-RING	4
724	XJBN-00361	O-RING	16
725	XJBN-00362	O-RING	6
726	XJBN-00233	O-RING	2
728	XJBN-00363	O-RING	4
732	XJBN-00912	O-RING	2
774	XJBN-00962	SEAL-OIL	1
789	XJBN-00099	RING-BACK UP	2
792	XJBN-00100	BACK-UP RING	2
806	XJBN-00101	NUT-HEX	2
808	XJBN-00364	NUT	2
824	XJBN-00102	RING-SNAP	2
885	XJBN-00103	PIN-VALVE PLATE	2
886	XJBN-00365	PIN-SPRING	4
901	XJBN-00104	BOLT-EYE	2
953	XJBN-00105	SCREW-SET	2
954	XJBN-00106	SCREW-SET	2
981	XJBN-00156	NAME PLATE	1
983	XJBN-00341	PIN	2
*-2	@	FUEL INJECTION PIPE & NOZZLE SEE 4020	2
*-3	@	FUEL INJECTION PIPE & NOZZLE SEE 4030	1
*-4	@	FUEL INJECTION PIPE & NOZZLE SEE 4040	1
011	XJBN-01212	PISTON SUB ASSY SEE ILLUST	2
013	XJBN-01040	CYLINDER SUB ASSY-RH SEE ILLUST	1
014	XJBN-01041	CYLINDER SUB ASSY-LH SEE ILLUST	1
030	XJBN-00069	SWASH PLATE SUB ASSY SEE ILLUST	2
041	XJBN-00072	CHECK VALVE ASSY 1 SEE ILLUST	2
042	XJBN-00075	CHECK VALVE ASSY 2 SEE ILLUST	2
530	XJBN-00366	TILTING PIN ASSY SEE ILLUST	2

Model

Nominal
displacement
(ml/r)

Pressure(MPa)

Speed(r/min)

Volumetric
efficiency
(≥%)

Weight
(kg)

Rated

Max

Optimum
speed

Speed
range

Rectabgle

Oval

Inlet

Outlet

CBQL-E563/F550-*F**

63/50

16/20

20/25

1500~2500

800~3000

92/92

30/30

25/25

77.5

234

311

16.2

CBQL-E550/F540-*F**

50/40

20/20

25/25

25/20

221.5

295

15.2

CBQL-E540/F532-*F**

40/32

20/20

69.5

212

283

14.9

CBQL-E532/F525-*F**

32/25

30/25

204

273

14.5

CBQL-E525/F520-*F**

25/20

25/25

64.5

197.5

264

13.8

CBQL-E520/F520-*F**

20/20

62.5

193.5

260

13.5
