EC330B EC460B hydraulic pump Belparts excavator main pump EC360B VOE 14531412 VOE 14508164 VOE 14531857

Ask Lasest Price
Brand Name :	Belparts
Model Number :	EC360B EC330B EC460B
Price :	Negotiated price
Payment Terms :	T/T, trade assurance,PayPal
Supply Ability :	1000PCS
Delivery Time :	1~7 days

Add to Cart

Product Details
Company Profile

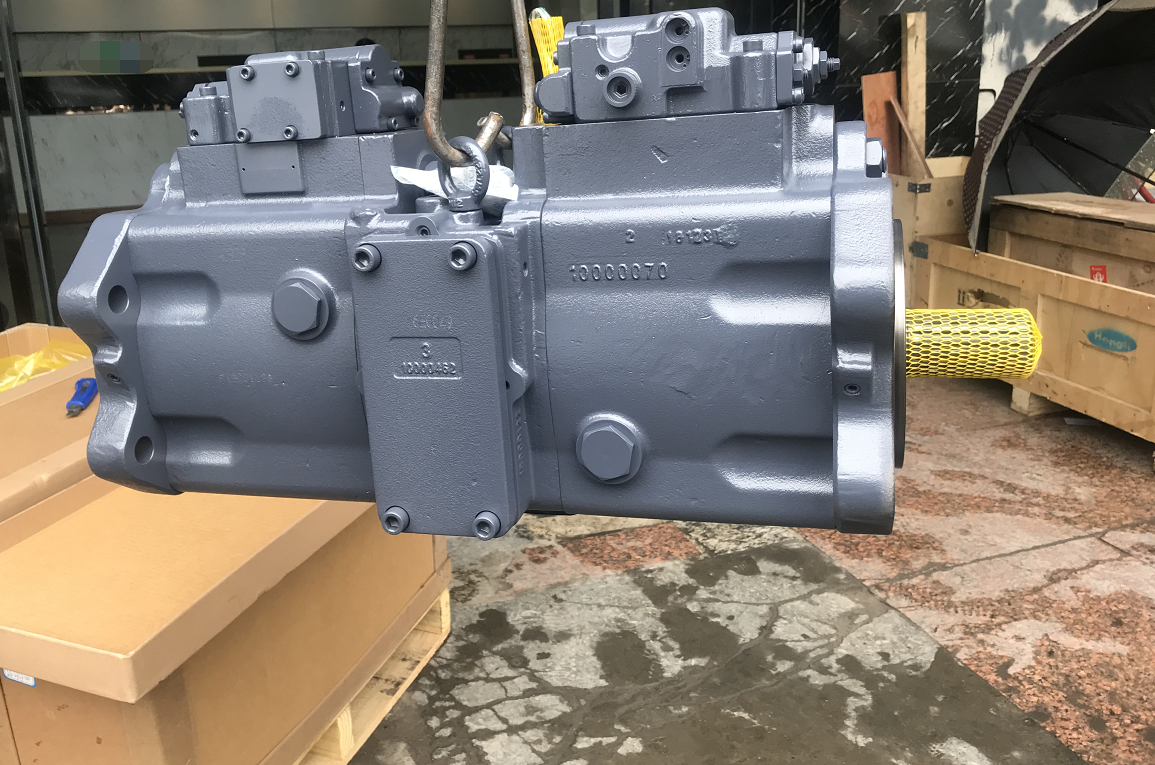

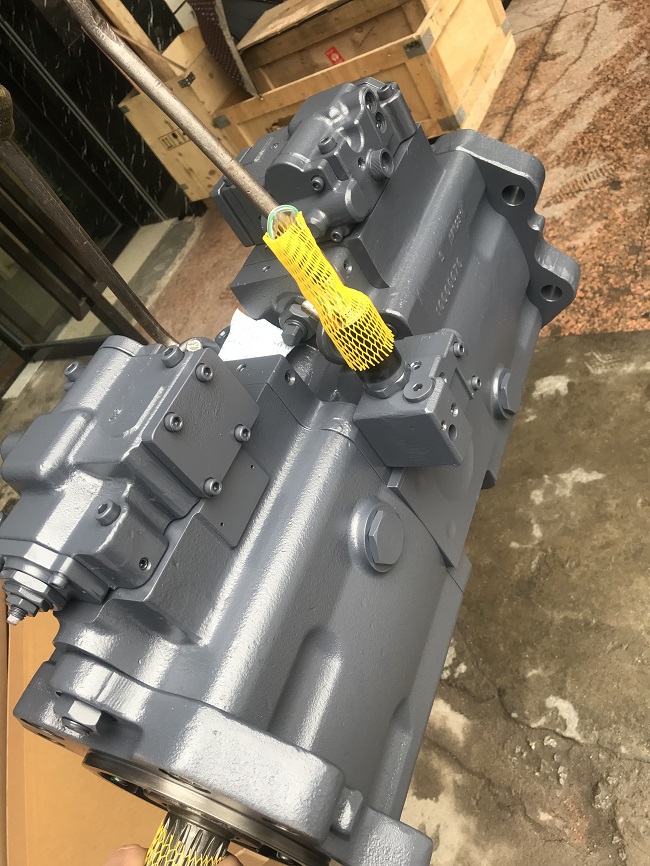

EC330B EC460B hydraulic pump Belparts excavator main pump EC360B VOE 14531412 VOE 14508164 VOE 14531857

EC330B EC460B hydraulic pump Belparts excavator main pump EC360B VOE 14531412 VOE 14508164 VOE 14531857

Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:EC360B EC330B EC460B
Part number:VOE 14531412 VOE 14508164 VOE 14531857
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require

Appliion	Crawler excavator
Part name	Hydraulic Main Pump
Model	EC360B EC330B EC460B
Part number	VOE 14531412 VOE 14508164 VOE 14531857
Warranty	3-12 months
Payment term	T/T, Trade Assurance, Paypal and etc.
Brand	Hitachi or as require

#	Part No	Part Name	Qty.	Price request
#	Part No	Part Name	8280299
	VOE 14531412	Pump	1
1	SA 7223-00140	Piston	2
2	VOE 14512923	Piston	9
3	VOE 14502323	Seat, Pad	9
4	SA 7223-00780	Cylinder	1
5	VOE 14502321	Block	1
6	VOE 14502324	Plate	1
7	SA 7223-00790	Cylinder	1
8	VOE 14502321	Block	1
9	VOE 14502325	Plate	1
10	VOE 14502011	Plate	2
11	SA 7223-00220	Plate	1
12	SA 7223-00240	Bushing	1
13	VOE 14511979	Gear	1
14	VOE 14511980	Bearing	2
15	VOE 14511981	Bearing	2
16	SA 7223-00060	Spacer	3
17	SA 8230-09300	Plate	2
18	VOE 14510070	Bushing more	2
19	SA 7223-00180	Spring	18
20	SA 7223-00260	Support	2
21	SA 7223-00210	Plate	2
22	VOE 14535453	Valve more	1
23	VOE 14533606	O-ring more	4
24	VOE 14533608	O-ring more	1
25	SA 7242-11040	Plug more	3
26	SA 8230-25880	Bolt more	3
27	SA 9415-11021	Plug more	1
28	SA 8230-32080	Valve more	1
29	VOE 14535454	O-ring more	1
30	VOE 14535455	O-ring more	1
31	VOE 14535456	O-ring more	1
32	SA 7242-11040	Plug more	24
33	SA 7223-00390	Bolt	8
34	SA 7223-00410	Piston	2
35	SA 7223-00420	Stop	2
36	SA 7223-00430	Stop	2
37	SA 7223-00450	Check valve more	2
38	VOE 14535204	Seat	1
39	VOE 14535205	Stop	1
40	VOE 14880998	Ball more	1
41	VOE 14540760	Check valve	2
42	VOE 14535204	Seat	1
43	VOE 14540758	Stop	1
44	VOE 14880998	Ball more	1
45	VOE 967630	Allen Hd Screw more	8
46	SA 7223-00690	O-ring	2
47	VOE 14533617	O-ring	3
48	VOE 14533034	O-ring	2
49	VOE 14533035	O-ring	2
50	VOE 14533604	O-ring	16
51	VOE 14533606	O-ring more	4
52	VOE 14533612	O-ring	3
53	SA 7223-00700	O-ring	2
54	VOE 14535388	Seal	1
55	SA 7223-00640	Ring	2
56	SA 7223-00650	Ring	2
57	VOE 979022	Nut more	4
58	VOE 914470	Snap Ring more	2
59	SA 7242-10560	Pin	2
60	SA 7223-00660	Spring Pin	4
61	VOE 14880555	Eye Bolt	2
62	SA 7223-00670	Set Screw	2
63	VOE 14511994	Cover	1
64	SA 9016-11206	Bolt more	4
65	VOE 14512382	Plug	12
66	SA 9415-11021	Plug more	2
67	VOE 14540757	O-ring	1
68	SA 7223-00680	Set Screw	2
69	VOE 14512927	Power Take-off	1
70	SA 9415-11051	Plug more	1
71	SA 8240-03470	Bolt	4
72	SA 8240-03450	Bolt	2
73	VOE 983524	O-ring more	1
74	SA 9511-22080	O-ring more	1
75	VOE 14512544	Cover	1
76	VOE 14511977	Shaft	1
77	VOE 14511978	Shaft	1
78	SA 7223-00280	Cover	1
79	VOE 14540759	Casing	2
80	VOE 14511982	Block	1
81	VOE 14506634	Pin	2
82	SA 7223-00400	Pin	1
83	SA 7223-00570	Pin	1
84	SA 9415-11051	Plug more	4
100	VOE 14540777	Sealing Kit	1

Model	Nominal displacement(ml/r) Fore pump/ hind pump	Pressure(MPa)		Speed(r/min)			Volumetric efficiency(≥%) Fore pump/ hind pump	L1	L2	L	Weight (kg)
		Rated	Max	Min	Rated	Max
CBHY-G36/F3.5-ATφ*	36/3.5	25/20	28/25	800	2500	3000	92/85	123	123	205	6.8
CBHY-G36/F4.5-ATφ*	36/4.5						92/90			208	7.0
CBHY-G32/F3.5-ATφ*	32/3.5						92/85	118	118	200	6.5
CBHY-G32/F4.5-ATφ*	32/4.5						92/90			203	6.7
CBHY-G30/F3.5-ATφ*	30/3.5						92/85	116	116	198	6.1
CBHY-G30/F4.5-ATφ*	30/4.5						92/90			201	6.4
CBHY-G28/F3.5-ATφ*	28/3.5						92/85	114	114	196	6.1
CBHY-G28/F4.5-ATφ*	28/4.5						92/90			199	6.2
CBHY-G25/F3.5-ATφ*	25/3.5						92/85	110	110	192	5.8
CBHY-G25/F4.5-ATφ*	25/4.5						92/90			195	5.9
