Belparts excavator main pump EC55 EC55E hydraulic pump for VOE 14503279 VOE 14507635

Ask Lasest Price
Brand Name :	Belparts
Model Number :	EC55 EC55E
Price :	Negotiated price
Payment Terms :	T/T, trade assurance,PayPal
Supply Ability :	1000PCS
Delivery Time :	1~7 days

Add to Cart

Product Details
Company Profile

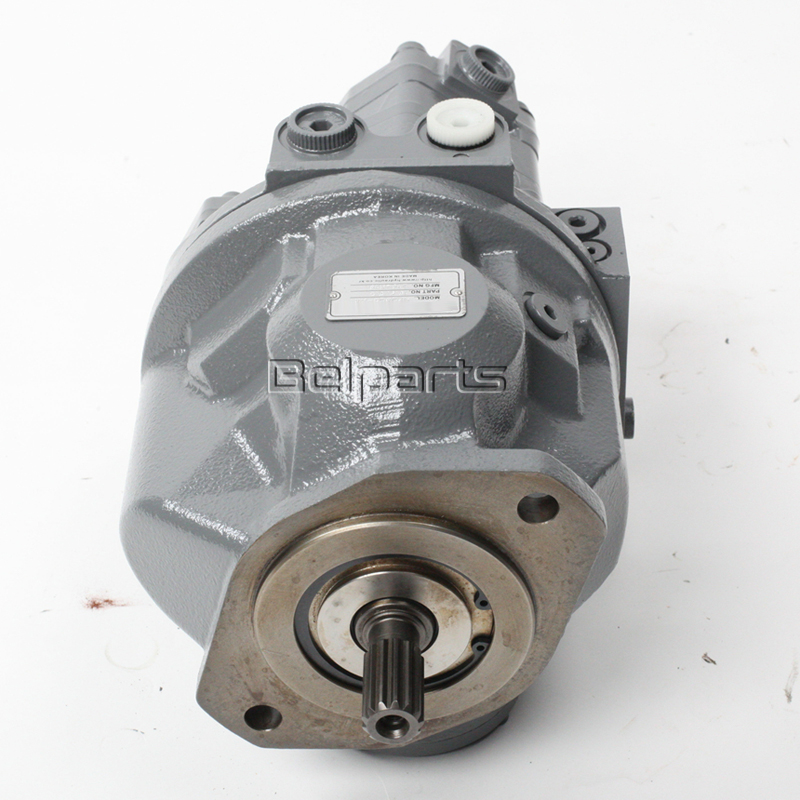

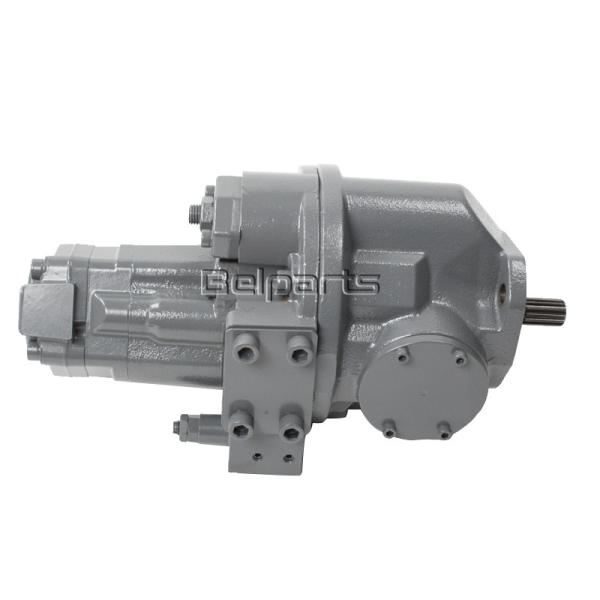

Belparts excavator main pump EC55 EC55E hydraulic pump for VOE 14503279 VOE 14507635

Belparts excavator main pump EC55 EC55E hydraulic pump for VOE 14503279 VOE 14507635

Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:EC55 EC55E
Part number:VOE 14503279 VOE 14507635
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require

Appliion	Crawler excavator
Part name	Hydraulic Main Pump
Model	EC55 EC55E
Part number	VOE 14503279 VOE 14507635
Warranty	3-12 months
Payment term	T/T, Trade Assurance, Paypal and etc.
Brand	Hitachi or as require

#	Part No	Part Name	Qty.	Price request
	VOE 14503279	Pump	1
1	SA 8230-03190	Shaft	1
2	SA 8230-03170	Seal	1
3	SA 8230-03180	Bearing	1
4	SA 8230-03850	Ring	1
5	SA 8230-03860	Ring	1
6	SA 8230-02960	Seal	1
7	SA 8230-03730	O-ring	1
8	SA 8230-03910	Ring	1
9	SA 8230-15520	Hanger	1
10	SA 8230-15530	Hanger	1
11	SA 8230-02970	Plate	1
12	SA 8230-02990	Seal	1
13	SA 8230-02980	Bearing	2
14	SA 9016-10603	Bolt more	4
15	SA 8230-03720	O-ring	1
16	SA 8230-15610	Rotator	1
17	SA 8230-15620	Piston	10
18	SA 8230-03350	Block	1
19	SA 8230-03340	Retainer	1
20	SA 8230-03120	Plate	1
21	SA 8230-03010	Guide	1
22	SA 8230-03360	Spring	1
23	SA 8230-02950	Pin	3
24	SA 8230-03110	Seat	2
25	SA 8230-03880	Ring	1
26	SA 14504578	Cover	1
27	SA 8230-03410	Cover	1
28	SA 8230-03450	Plate	1
29	SA 8230-03890	Pin	2
30	SA 8230-03820	Bolt	2
31	SA 8230-03930	O-ring	1
32	SA 8230-06960	O-ring	4
33	SA 8230-06540	Plug	2
34	SA 8230-03080	Orifice	3
35	SA 8230-03130	Bearing	1
36	SA 8230-15450	Plug	2
37	VOE 14504579	O-ring	1
38	SA 8230-03800	Bolt	1
39	SA 8230-03310	Filter	1
40	SA 8230-03870	Ring	1
41	SA 8230-06550	Plug	3
42	SA 8230-15460	Plug	3
43	SA 14504580	Spring	1
44	VOE 14507631	Piston	1
45	SA 8230-03780	Bolt	2
46	SA 8230-03670	O-ring	1
47	SA 8230-03650	O-ring	1
48	SA 8230-03660	O-ring	1
49	VOE 14504587	Relief valve	1
50	SA 8230-06960	O-ring	1
51	SA 8230-03390	Housing	1
100	VOE 14504880	Sealing Kit KIT	1

Model	Nominal displacement(ml/r)	Pressure(MPa)		Speed(r/min)		Volumetric efficiency (≥%)	L1	L2	L	Weight (kg)
		Rated	Max	Optimum speed	Speed range
CBTLZT-F16/F10-AFP*	16/10	20	25	1500～2500	800~3000	92	110	189	214.5	14.5
CBTLZT-F16/F16-AFP*	16/16							196.5	222	14.8
CBTLZT-F20/F10-AFP*	20/10						115	194	219.5	14.8
CBTLZT-F20/F16-AFP*	20/16							201.5	227	15.3
CBTLZT-F25/F10-AFP*	25/10						121.5	200.5	226	15.2

Model	Nominal displacement (ml/r)	Pressure(MPa)		Speed(r/min)			Volumetric efficiency (≥%)	L1	L	Weight (kg)
Model	Nominal displacement (ml/r)	Rated	Max	Min	Rated	Max	Volumetric efficiency (≥%)	L1	L	Weight (kg)
CBHC-F11-AL**	11	20	25	500	2000	3000	90	54.5	118	3.5
CBHC-F12-AL**	12							55	119	3.6
CBHC-F14.5-AL**	14.5							57	123	3.7
CBHC-F16-AL**	16							58	125	3.8
CBHC-F18-AL**	18							59.5	128	3.9
CBHC-F20-AL**	20							61	131	4.0
