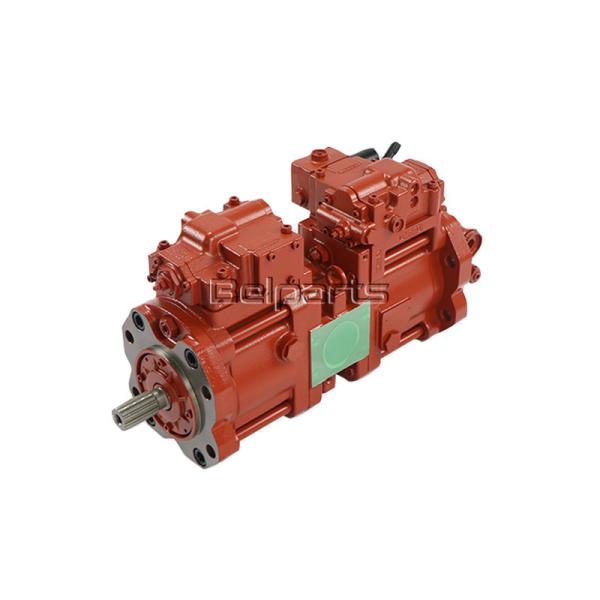

Belparts excavator main pump R110 R130 R150-5-7 hydraulic pump 31N3-10050 31EA-00200

Appliion:Excavator
Part name:hydarulic pump
Part number:31N3-10050 31EA-00200
Model:R110 R130 R150-5-7
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts

Appliion	Excavator
Part name	hydarulic pump
Part number	31N3-10050 31EA-00200
Model	R110 R130 R150-5-7
MOQ	1PC
Material	Steel
Payment term	T/T, Western union, paypal, trade assurance or as required
Weight	190KG
Brand	Belparts

#	Part No	Part Name	Qty.	Price request
*	31N3-10050	MAIN PUMP	1
*-1	XJBN-00928	MAIN PUMP UNIT	1
111	XJBN-00432	SHAFT(F)-DRIVE	1
113	XJBN-00431	SHAFT(R)-DRIVE	1
114	XJBN-00430	COUPLING-SPLINE	1
123	XJBN-00429	BEARING-ROLLER	2
124	XJBN-00428	BEARING-NEEDLE	2
127	XJBN-00427	SPACER-BEARING	4
S141	XJBN-00426	BLOCK-CYLINDER	2
S151	XJBN-00425	PISTON	18
S152	XJBN-00424	SHOE	18
153	XJBN-00423	PLATE-SET	2
156	XJBN-00422	BUSHING-SPHERICAL	2
157	XJBN-00421	SPRING-CYLINDER	18
211	XJBN-00420	PLATE-SHOE	2
S212	XJBN-00419	PLATE-SWASH	2
S214	XJBN-00418	BUSHING-TILTING	2
251	XJBN-00417	SUPPORT	2
261	XJBN-00416	COVER(F)-SEAL	1
271	XJBN-00415	CASING-PUMP	2
312	XJBN-00414	BLOCK-VALVE	1
S313	XJBN-00413	PLATE(R)-VALVE	1
S314	XJBN-00412	PLATE(L)-VALVE	1
401	XJBN-00411	SCREW	8
406	XJBN-00410	SCREW	4
466	XJBN-00356	PLUG	2
467	XJBN-00409	PLUG	4
490	XJBN-00032	PLUG	15
S531	XJBN-00408	PIN-TILTING	2
532	XJBN-00407	PISTON-SERVO	2
534	XJBN-00406	STOPPER(L)	2
535	XJBN-00405	STOPPER(S)	2
S548	XJBN-00404	PIN-FEED BACK	2
702	XJBN-00403	O-RING	2
710	XJBN-00402	O-RING	1
717	XJBN-00401	O-RING	2
719	XJBN-00400	O-RING	2
724	XJBN-00361	O-RING	18
725	XJBN-00362	O-RING	2
728	XJBN-00097	O-RING	4
732	XJBN-00879	O-RING	2
774	XJBN-00399	SEAL-OIL	1
789	XJBN-00398	RING-BACK UP	2
792	XJBN-00397	RING-BACK UP	2
808	XJBN-00396	NUT-HEX	4
824	XJBN-00395	RING-SNAP	2
885	XJBN-00394	PIN-VALVE PLATE	2
886	XJBN-00365	PIN-SPRING	4
901	XJBN-00393	BOLT-EYE	2
953	XJBN-00105	SCREW-SET	2
954	XJBN-00392	SCREW-SET	2
981	XJBN-00391	NAME PLATE	2
983	XJBN-00341	PIN	2
*-2	@	FUEL INJECTION PIPE & NOZZLE SEE 4020, FRONT	1
*-2	@	FUEL INJECTION PIPE & NOZZLE SEE 4020, REAR	1
*-3	@	FUEL INJECTION PIPE & NOZZLE SEE 4030	1
011	XJBN-00437	PISTON SUB ASSY SEE ILLUST	1
013	XJBN-00436	CYLINDER ASSY-RH SEE ILLUST	1
014	XJBN-00435	CYLINDER ASSY-LH SEE ILLUST	1
030	XJBN-00434	SWASH PLATE ASSY SEE ILLUST	1
530	XJBN-00433	TILTING PIN ASSY SEE ILLUST	1
